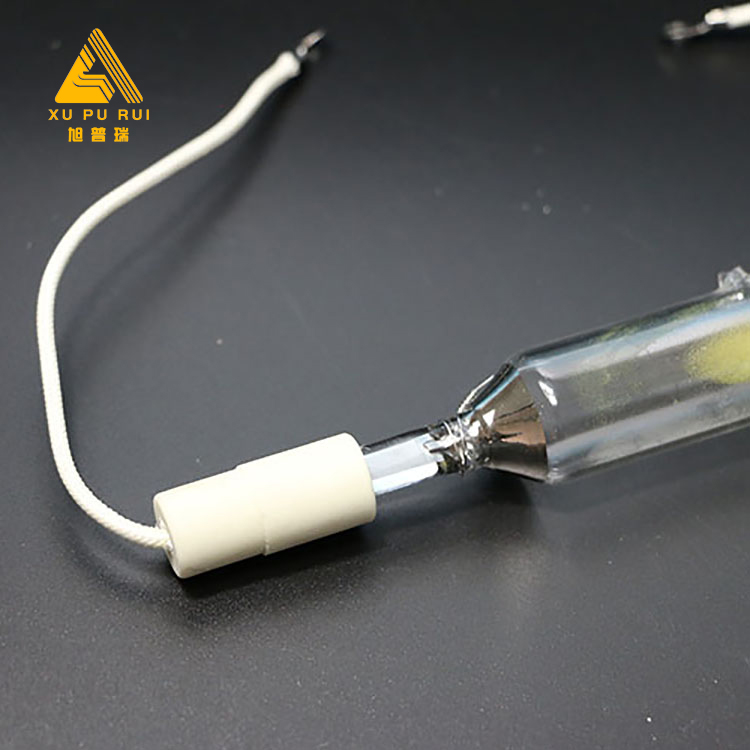

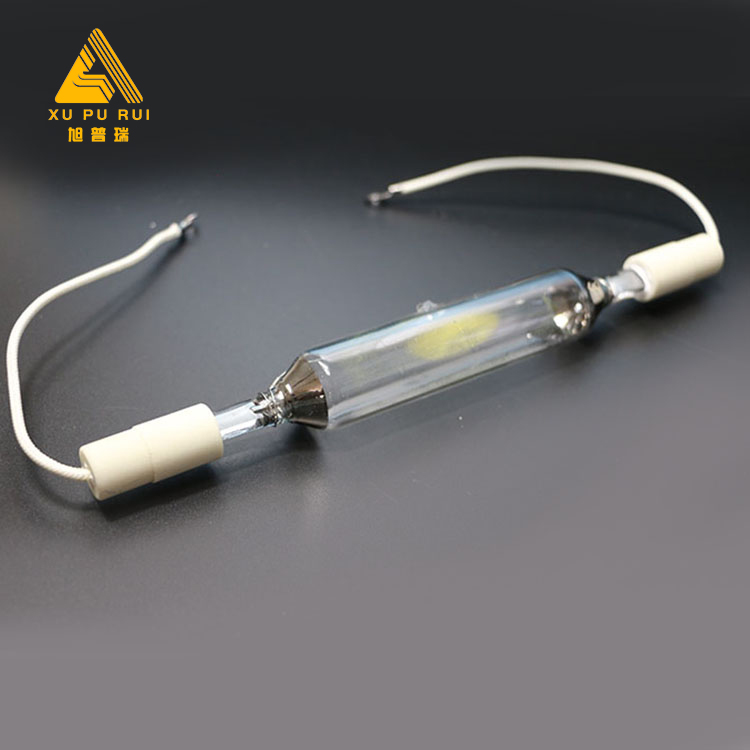

Glass tube 115mm 5000w exposure uv lamp for printing machine
Description:
Standard UV curing lamps, also called UV lamps, are core parts of surface light curing industry.
UV technology
Industrial UV light source ranges in spectrum from 200nm to 450nm. When it comes to typical 350-380nm, ultraviolet light was absorbed most effectively by UV photoinitiators. Over decades UV technology has proven to be a success in printing, packaging, decorating, finishing and other fields.
Specializing in UV products for 16 years, Xupurui has been a professional manufacturer of UV curing lamps and metal halide lamps. Our inkjet lamps can be supplied in arc lengths from 50 mm to 3,000 mm and in outputs up to 60 kW. All lamps can operate at 50 or 60Hz.
We are proud of being UV lamp manufacturer and service provider to meet or exceed customers’ requirement.
Product ID | Watts | Overall Length | Arc Length | Tube Diameter | Lamp Base |
| XPR86010028 | 1KW | 230mm | 128mm | 22.5mm | ceramic |
| XPR86010082 | 1.5KW | 370mm | 245mm | 20mm | ceramic |
| XPR86010018 | 1.8KW | 240mm | 150mm | 25mm | ceramic |
| XPR86020096 | 2KW | 380mm | 250mm | 22.5mm | metal |
| XPR86020061 | 2.32kw | 251mm | 165mm | 18mm | ceramic |
| XPR86030160 | 3KW | 473mm | 335mm | 20.5mm | ceramic |
| XPR86030023 | 3.2KW | 550mm | 405mm | 22.5mm | metal |
| XPR86030119 | 3.6KW | 240mm | 150mm | 28mm | ceramic |
| XPR86030075 | 3.6KW | 400mm | 300mm | 22.5mm | ceramic |
| XPR86040101 | 4KW | 460mm | 385mm | 20mm | ceramic |
| XPR86040018 | 4.8KW | 500mm | 400mm | 22.5mm | ceramic |
| XPR86050113 | 5KW | 436mm | 353mm | 22.5mm | ceramic |
| XPR86050125 | 5KW | 380mm | 255mm | 25mm | ceramic |
| XPR86060008 | 6KW | 930mm | 775mm | 21mm | ceramic |
| XPR86060023 | 6.3KW | 650mm | 525mm | 22.5mm | ceramic |
| XPR86070028 | 7KW | 335mm | 270mm | 30mm | ceramic |
| XPR86070015 | 7.5KW | 778mm | 620mm | 25mm | ceramic |
| XPR86080066 | 8KW | 630mm | 520mm | 25mm | ceramic |
| XPR86090032 | 9KW | 850mm | 770mm | 25mm | ceramic |
| XPR86100003 | 10KW | 1386mm | 1230mm | 21mm | ceramic |
| XPR86110001 | 11KW | 1575mm | 1430mm | 22.5mm | ceramic |
| XPR86120060 | 12KW | 870mm | 770mm | 25mm | ceramic |
| XPR86160026 | 16.5KW | 1575mm | 1430mm | 25mm | ceramic |
The following are some of our company"s other products, if you are interested can click to view.
20 years work experience,Customer-centered,Service-oriented,Credit & Quality
Main Products:
Lamps: UV tubes, metal halide (ME lamps), iron lamps, plate exposure lamps, iodine gallium lamps (M lamps), infrared lamps (IR lamps). UV light sources: UV transformers, ballasts, triggers, capacitors, UV lampshades. Consumables: Transparent quartz insulation films, coated quartz reflective films, quartz sleeves, UV energy meters, UV radiation meters, UV glasses. UV machines: Portable UV light curing machines, desktop curing machines, UV ovens.
