Home > Products > Easy installation 90W LED street light

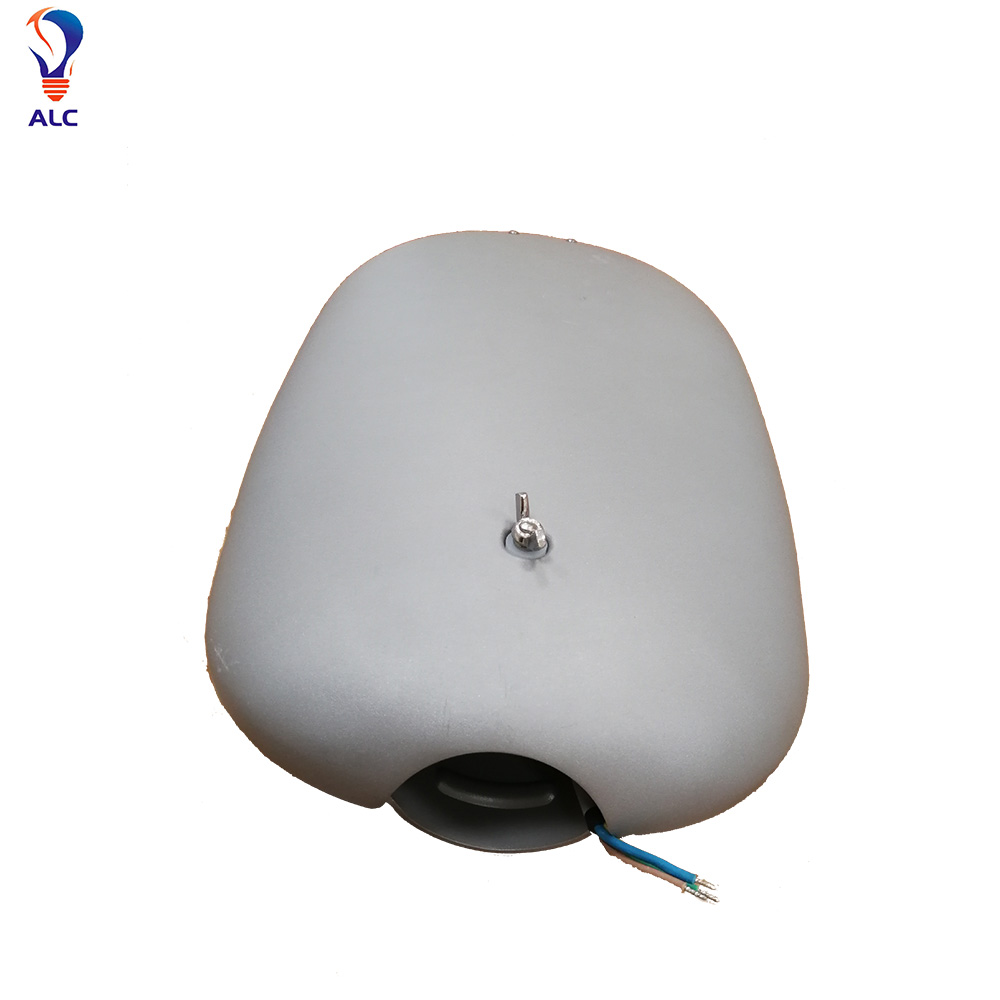

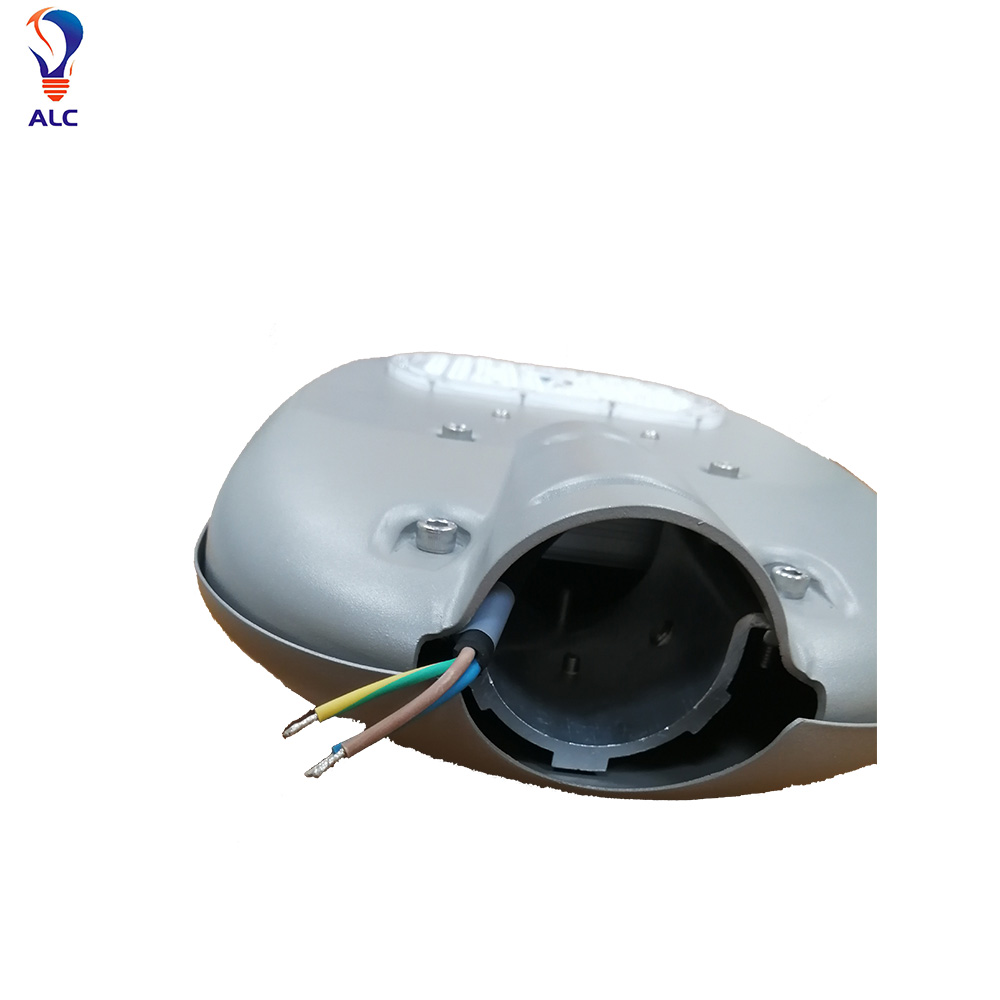

Easy installation 90W LED street light

Click on the image to view the original image

Product：	views：2Easy installation 90W LED street light
Branch：	AN
Size：	56.5X23X28.5 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 18:36

Product Details

Overview

Quick Details

Input Voltage(V):: AC100-240V

Lamp Luminous Flux(lm):: 11700

CRI (Ra>):: 70

Working Temperature(℃):: -35 - 50

Working Lifetime(Hour):: 50000

Lamp Body Material:: A1070 & SPCC

IP Rating:: IP65

Certification:: CE, CQC, RoHS

Place of Origin:: Jiangsu, China

Brand Name:: AN

Model Number:: SWL-BLX505L90

Application:: ROAD

Light Source:: LED

Driver:: 100W SOSEN External waterproof Driver CCC/UL/CE

LED Chip:: S310151-1W 3030

PF>:: 0.92

Beam angle:: 85*150°

Lumen Efficacy(Lm/w):: 130

Material:: AL1070&SPCC

IP Grade:: IP65

Life span(H):: 50000

CCT(K):: 3000/4000/5700

Warranty(Years):: 5

Packaging & Delivery

Selling Units:: Single item

Single package size:: 56.5X23X28.5 cm

Single gross weight:: 6.5 kg

Package Type:: Packed in pearl cotton and cartons.

Lead Time:

Quantity(Piece)	1 - 500	>500
Est. Time(days)	30	To be negotiated

Product Description

Features
Luminous efficiency up to 130lm/w
Series and Parallel circuit board design, improves the stability of the light
Use high quality A1070 aluminum plates as the radiator,with excellent heat dissipation and heat conduction
Use transparent optical PC lens of high light transmittance 92% with uniform and soft light output Multiple-angle for options
Usign constant current Led driver to improve teh stability as well as teh efficiency of the lamps
Panel beating structure design and streamline appearance Lampshade can be opened manually for easy maintain Easy installation, reduce the working time at high altitudes

Product Display

The street lights with different specification

Distribution Curve Flux

Beam angel as shown

Product Dimension(mm)

The dimension of different power lights as shown.

Model	SWL-BLX355L40	SWL-BLX420L60	SWL-BLX505L90	SWL-BLX650L120	SWL-BLX650L150	SWL- BLX650L200
POWER	40w	60w	90w	120w	150w	200w
LUMINOUS FLUX	5200lm	7800lm	11700lm	15600lm	19500lm	26000lm
Led	3030 (40pcs)	3030 (60pcs)	3030 (96pcs)	3030 (128pcs)	3030 (192pcs)	3030 (192pcs)
DRIVER	MeanWell /sosen
VOLTAGE	AC100-240V
LUMINOUS EFFICIENCY	130lm/w
CRI(RA)	>70
CCT	3000/4000/5700
POWER FACTOR	≥0.92
BEAM ANGLE	85*150°
MATERIAL	A1070&SPCC
LIFETIME	50000H
WORKING TEMPERATURE	-35°C-50°C
N.W.	2.6Kg	5.0Kg	6.2Kg	9.0kg	9.2kg	9.4kg
G.W.	2.8kg	5.3Kg	6.5Kg	9.3kg	9.5kg	9.7kg

Installation Process

Multiple installation methods are available.

Package

Packed with paper card and pearl wool.

About us

Company Profile

ALC was founded in Baoshan, Shanghai in 2008, In 2008-2014, our product is Negative ion air purifying energy-saving lamp, the number of single product production and sales is No.1 in China, the main sales markets are Europe and the United States. In 2014, ALC invested a production base in Jianhu, Yancheng, Jiangsu, with an available production area of over 6,000 square meters. In 2014-2016, ALC began productionmk of LED indoor lighting products. The main products are LED bulbs, LED downlights, LED aluminum-plastic T8 lamps. And we successfully obtained orders fro various government tender projects in Egypt. In 2017, ALC began to transform to LED lamps. OEM ,ODM services are available. The company has complete performance testing equipment for photoelectric and structural. We sincerely welcome friends at home and abroad to come to our company to negotiate.
