Home > Products > 200w high bay led IP65 die casting microwave sensor smart control Excellent lighting performance WIDE APPLICATION for warehouse

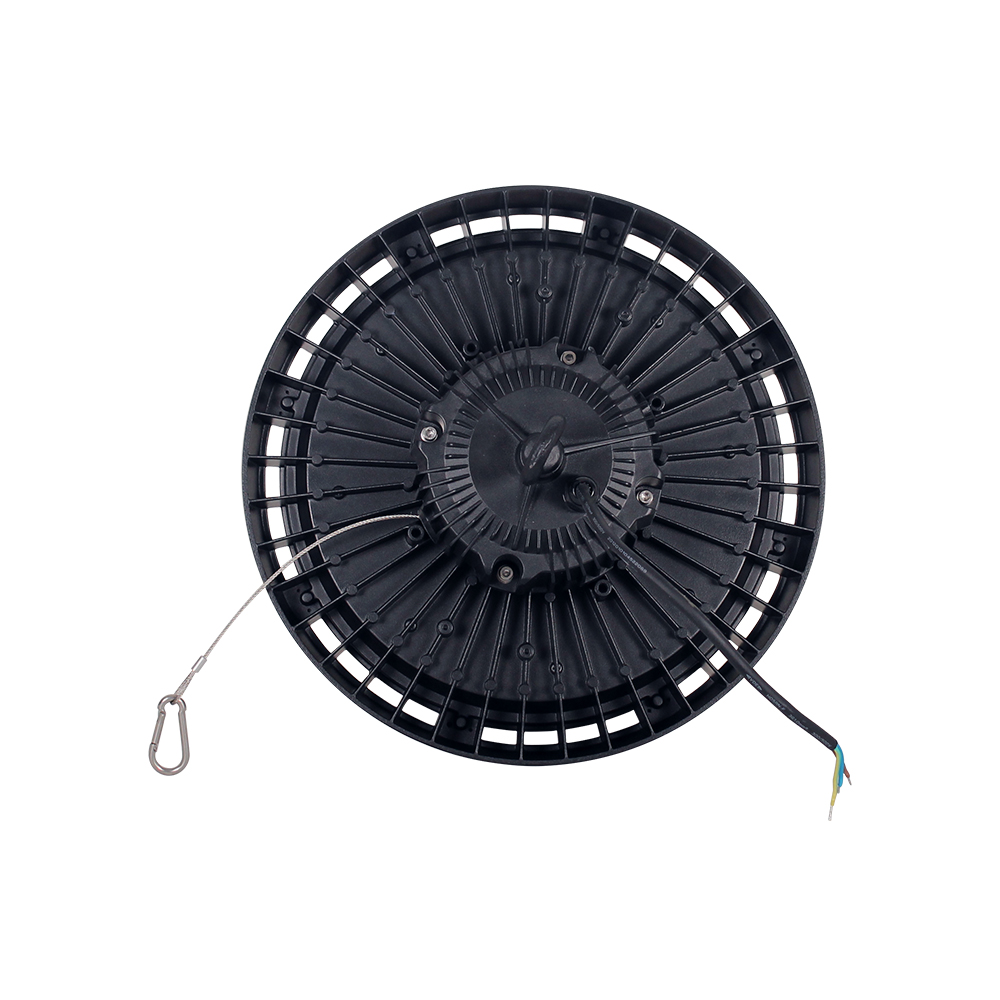

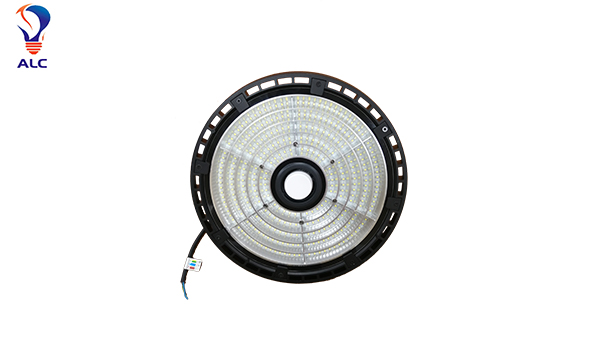

200w high bay led IP65 die casting microwave sensor smart control Excellent lighting performance WIDE APPLICATION for warehouse
Click on the image to view the original image
Product： views：5200w high bay led IP65 die casting microwave sensor smart control Excellent lighting performance WIDE APPLICATION for warehouse
Branch： AN
Size： 37X37X19 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:36
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC110-277V
Lamp Luminous Flux(lm):
26000/30000
CRI (Ra>):
70
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
ADC12
IP Rating:
IP65
Certification:
CE, RoHS
Place of Origin:
Jiangsu, China
Brand Name:
AN
Model Number:
SWP-YZ200W
Application:
Sports Stadiums
Light Source:
LED
Driver:
200W Factory Non-isolated circular waterproof Driver CE
LED Chip:
1W 2835SANAN5700K 70+ 2235*2
PF>:
0.92
Beam angle:
120°
Lumen Efficacy(Lm/w):
130/150
Material:
ADC12
UGR<:
22
IP Grade:
IP65
CCT(K):
3000/4000/5700
Warranty(Years):
5

Packaging & Delivery

Selling Units:
Single item
Single package size:
37X37X19 cm
Single gross weight:
4.6 kg
Package Type:
Packed in pearl cotton and cartons.
Lead Time:
Quantity(Piece)1 - 1>1
Est. Time(days)15To be negotiated
Video Description
Product Description
Features
ADC12 Material die-casting process, novel and beautiful
Hollow convection structure design, efficient heat dissipation
Surface dusting treatment, strong corrosion resistance; reflective uniform light output, no yellow spots.
LED light source concentric ring cloth lamp, compatible with different light sources and quantity; a variety of installation methods, easy to install and disassemble.

Radar Sensors

With radar, microwave and infrared sensing optional.

Distribution Curve Flux

Multiple beam angles are available.



Explosive View

The explosive view shows every detail and the technology of the light.

Product Dimension(mm)

The dimension of different power lights as shown.

Model
SWP-YZ100W
SWP-YZ150W
SWP-YZ200W
POWER
100W
150W
200W
LUMINOUS FLUX
13000/15000Lm
19500/22500Lm
26000/30000Lm
CHIP
2835/3030
2835/3030
2835/3030
DRIVER
MENWELL /SOSEN/FACTORY
VOLTAGE
110-277VAC
LUMINOUS EFFICIENCY
130/150Lm/W
CRI(RA)
>70
CCT
4000K/5000K/5700K
POWER FACTOR
≥0.95
BEAM ANGLE
60°/ 90°/ 120°
MATERIAL
ADC12
LIFETIME
≥50000H L70B50
WORKING TEMPERATURE
-20~50℃
N.W.
2.9Kg
3.5Kg
4.1Kg
G.W.
3.7Kg
4.4Kg
5.2Kg

Installation Process

Multiple installation methods are available.



Package

Packed with paper card and pearl wool.

About us

Company Profile

ALC was founded in Baoshan, Shanghai in 2008, In 2008-2014, our product is Negative ion air purifying energy-saving lamp, the number of single product production and sales is No.1 in China, the main sales markets are Europe and the United States. In 2014, ALC invested a production base in Jianhu, Yancheng, Jiangsu, with an available production area of over 6,000 square meters. In 2014-2016, ALC began productionmk of LED indoor lighting products. The main products are LED bulbs, LED downlights, LED aluminum-plastic T8 lamps. And we successfully obtained orders fro various government tender projects in Egypt. In 2017, ALC began to transform to LED lamps. OEM ,ODM services are available. The company has complete performance testing equipment for photoelectric and structural. We sincerely welcome friends at home and abroad to come to our company to negotiate.

Production Process
Application
