Home > Products > 100w led high bay 150LmW IP65 led high bay light with Meanwell Sosen factory driver for Warehouses Factories Supermarkets

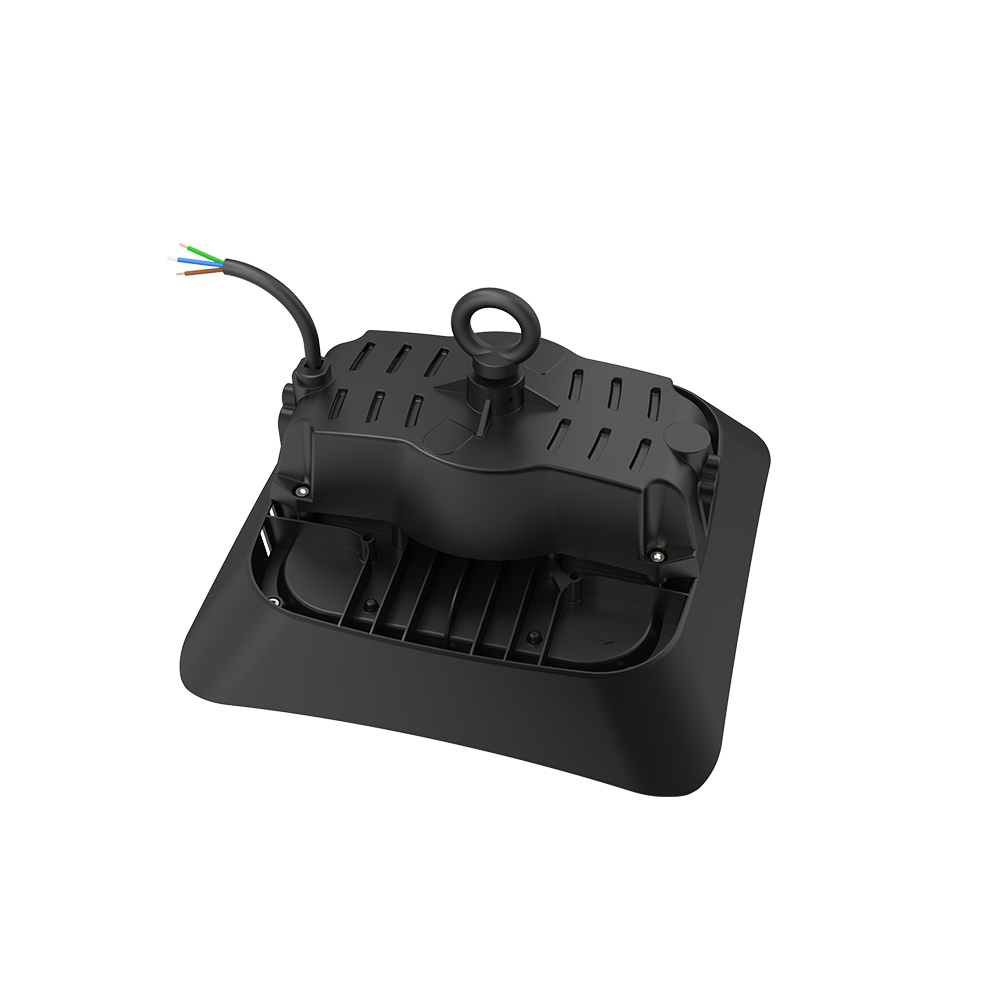

100w led high bay 150LmW IP65 led high bay light with Meanwell Sosen factory driver for Warehouses Factories Supermarkets
Click on the image to view the original image
Product： views：2100w led high bay 150LmW IP65 led high bay light with Meanwell Sosen factory driver for Warehouses Factories Supermarkets
Branch： AN
Size： 30X30X15 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:36
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
AC100-277V
Lamp Luminous Flux(lm):
15000
CRI (Ra>):
70
Working Temperature(℃):
-20-50
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
ce, RoHS
Warranty(Year):
5
Place of Origin:
Jiangsu, China
Brand Name:
AN
Model Number:
SWP-FC100W
Beam Angle(°):
60°/90°/70*100°
Application:
Theme Park, ROAD, HOTEL, Sports Stadiums, Garden, SUPERMARKET
Power Supply:
AC
Emitting Color:
Cold White, Warm White, White
Color:
Black, Dark Grey
Driver:
MEANWELL ELG-100
LED Chip:
Lumileds3030
CCT:
3000/4000/5700
PF>:
0.92
UGR<:
22
Lumen Efficacy:
130-150
Material:
ADC12
Life Span:
50000H
IP Grade:
IP65
CRI>:
70Ra

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X30X15 cm
Single gross weight:
3.8 kg
Package Type:
Packed in pearl cotton and cartons.
Lead Time:
Quantity(Piece)1 - 2>2
Est. Time(days)15To be negotiated
Video Description
Product Description
Product Features
Beam angle
Multi-angle:60°,90°, 70*100°
light radiation
Even and soft light radiation, no glaring and no lighting spot.
UGR Value
Uniform luminescence, no spots, dazzle light less(UGR<22)
Installation
Various installation methods, lifting, mounting poll, pole mounting, rack mounting, die-casting aluminum powder shell, air vent convection.
Waterproof
IP65 Protection Grade with breather
Appearance
Novelty appearance
Design
Appearance design as Spaceship

Distribution Curve Flux

Multiple beam angles are available.

Power Supply Type

Various types of the power supply as options. Can meet many customers" requirements.

Explosive View

The explosive view shows every detail and the technology of the light.

Product Dimension(mm)

The dimension of different power lights as shown.

Model
SWP-FC100W
SWP-FC150W
SWP-FC200W
Power
100W±10%
100W±10%
200W±10%
Lumens
15000Lm
22500Lm
30000Lm
LED
SMD2835/3030(176PCS)
SMD2835/3030(272PCS)
 SMD2835/3030(352PCS)
Power Supply
MEANWELL/SOSEN/SENSE
Voltage
100V-277Vac
Luminous Efficiency
150Lm/W
CRI
≥70
CCT
4000/5000/5700K
PF
≥0.92
Beam Angle
60°/90°/70*100°
Material
ADC 12
Life Span
≥50000H L70B50
IP Grade
IP65
Operating Temperature
-20℃ - 50℃
Net Weight(Kg)
3.2Kg
4.6Kg
6.5Kg
Gross Weight(Kg)
3.8Kg
5.3Kg
7.5Kg

Installation Process

Multiple installation methods are available.
