Home > Products > cheap led street light IP65 100W 3030 110LmW tensile aluminum led street light for Street Gutter Patio Garden Path

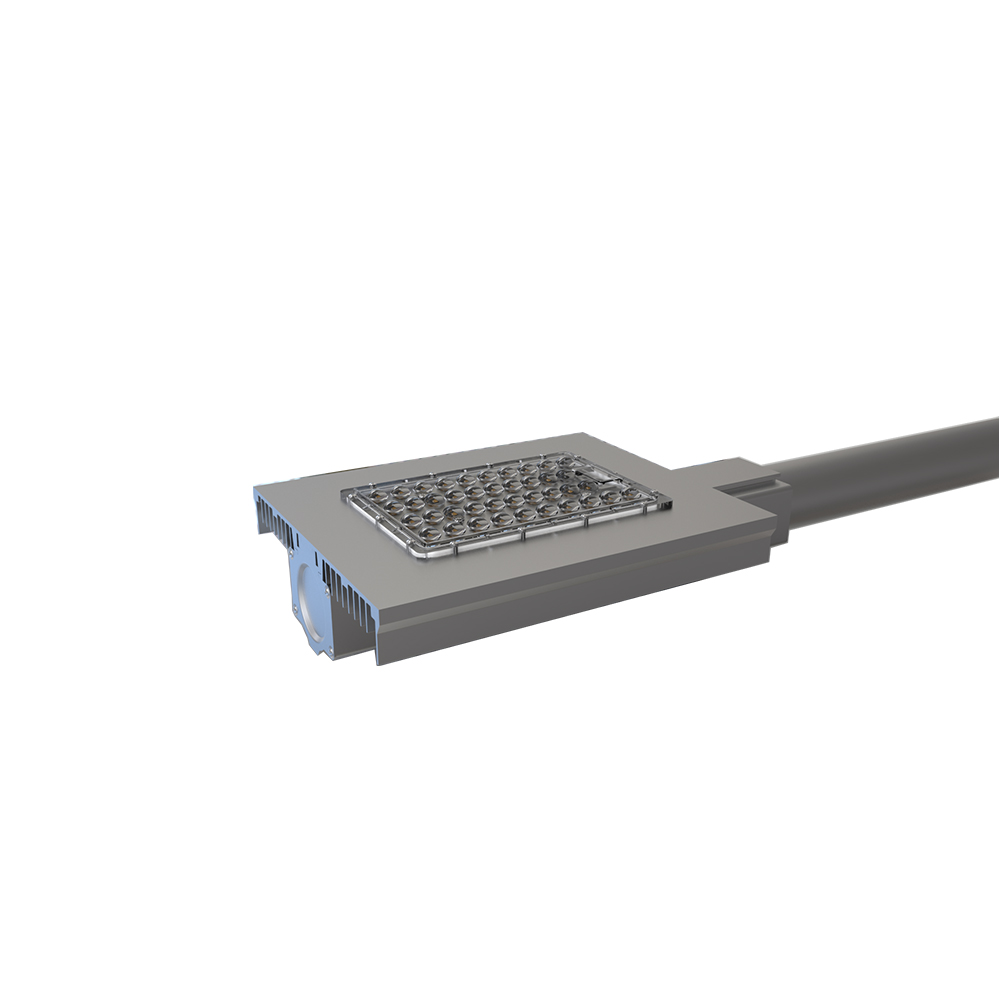

cheap led street light IP65 100W 3030 110LmW tensile aluminum led street light for Street Gutter Patio Garden Path
Click on the image to view the original image
Product: views:3cheap led street light IP65 100W 3030 110LmW tensile aluminum led street light for Street Gutter Patio Garden Path
Branch: AN
Size: 36X26X12 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:36
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
AC100-250V
Lamp Luminous Flux(lm):
11500
CRI (Ra>):
70
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE, RoHS
Warranty(Year):
5
Place of Origin:
Jiangsu, China
Brand Name:
AN
Model Number:
ASLS01-100W
Beam Angle(°):
60*126°
Application:
ROAD
Color:
Light Grey, Grey
Power Supply:
AC
Driver:
DC driver
LED Chip:
SMD3030
PF>:
0.95
Beam angle:
60*126°
Lumen Efficacy(Lm/w):
110
Material:
tensile aluminum
IP Grade:
IP65
Life span(H):
50000
CCT(K):
3000/4000/5700
Dimension(mm):
340*242*102

Packaging & Delivery

Selling Units:
Single item
Single package size:
36X26X12 cm
Single gross weight:
3.5 kg
Package Type:
Packed in pearl cotton and cartons.
Lead Time:
Quantity(Piece)1 - 1>1
Est. Time(days)15To be negotiated
Video Description
Product Description

Product Features

LUMINOUS EFFICIENCY: 110LM/W;

LHIGH QUALITY A1070 TENSILE ALUMINUM HEAT SINK WITH GOOD HEAT CONDUCTION AND HEAT DISSIPATION PERFORMANCE;

CONSTANT CURRENT LED DRIVE POWER;

IP65 PROTECTION;

NOVEL AND SIMPLE APPEARANCE, HIGH COST PERFORMANCE.

Distribution Curve Flux

The beam angle is 60*126°

Explosive View

The explosive view shows every detail and the technology of the light.

Product Dimension(mm)

The dimension of different power lights as shown.

Technical Specification
Model
100W
150W
200W
Input Voltage /Frequency
AC100-250V 50/60Hz
Power Factor
≥0.95
Drive Output Voltage
48
Drive Output Current
1.9A
2.8A
1.9Ax2
Drive Type
DCdriver
Surge Protection
6KV with External SPD
LED Brand / Model
SMD3030
LED Qty(pcs)
120
160
220
Luminous Flux(Lm)
11500
16500
22000
LuminousEfficiency(Lm/W)
110
110
110
Beam angle(°)
60x126
CRI
>70
IP Rate
IP65
Operating Ambient Temperature(℃)
﹣20 ~ ﹢50
Product Size(mm)
L340 * W242 * H102
L400 * W242 * H102
L507* W242 * H102

Package

Packed with pearl wool and carton.

About us

Company Profile

ALC was founded in Baoshan, Shanghai in 2008, In 2008-2014, our product is Negative ion air purifying energy-saving lamp, the number of single product production and sales is No.1 in China, the main sales markets are Europe and the United States. In 2014, ALC invested a production base in Jianhu, Yancheng, Jiangsu, with an available production area of over 6,000 square meters. In 2014-2016, ALC began productionmk of LED indoor lighting products. The main products are LED bulbs, LED downlights, LED aluminum-plastic T8 lamps. And we successfully obtained orders fro various government tender projects in Egypt. In 2017, ALC began to transform to LED lamps. OEM ,ODM services are available. The company has complete performance testing equipment for photoelectric and structural. We sincerely welcome friends at home and abroad to come to our company to negotiate.
