Home > Products > led 150LmW IP65 100W LED high bay light with Meanwell Driver Lumileds LED for factory warehouse workshop

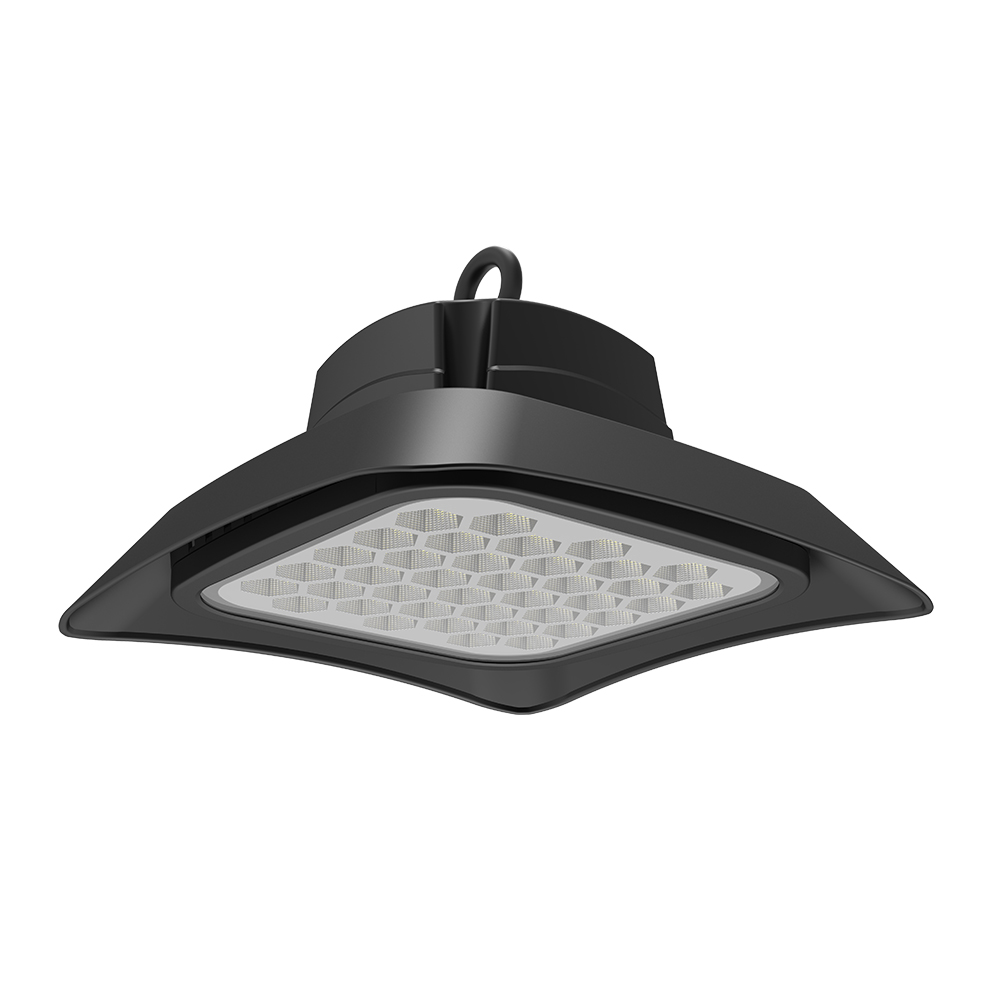

led 150LmW IP65 100W LED high bay light with Meanwell Driver Lumileds LED for factory warehouse workshop

Click on the image to view the original image

Product：	views：6led 150LmW IP65 100W LED high bay light with Meanwell Driver Lumileds LED for factory warehouse workshop
Branch：	AN
Size：	30X30X15 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 18:36

Product Details

Overview

Quick Details

Input Voltage(V):: AC100-277V

Lamp Luminous Flux(lm):: 15000

CRI (Ra>):: 70

Working Temperature(℃):: -20 - 50

Working Lifetime(Hour):: 50000

Lamp Body Material:: ADC12

IP Rating:: IP65

Certification:: CE, RoHS

Place of Origin:: Jiangsu, China

Brand Name:: AN

Model Number:: SWP-FC100W

Application:: WAREHOUSE

Light Source:: LED

Driver:: 100W MEANWELL isolated long strip waterproof driver CE

LED Chip:: 2835 5000K

CCT:: 3000/4000/5700

PF>:: 0.92

UGR<:: 22

Lumen Efficacy:: 140

Material:: ADC12

Life Span:: 50000H

IP Grade:: IP65

CRI>:: 70Ra

Packaging & Delivery

Selling Units:: Single item

Single package size:: 30X30X15 cm

Single gross weight:: 3.8 kg

Package Type:: Packed in pearl cotton and cartons.

Lead Time:

Quantity(Piece)	1 - 1	>1
Est. Time(days)	15	To be negotiated

Product Description

Product Features
Beam angle	Multi-angle:60°,90°, 70*100°
light radiation	Even and soft light radiation, no glaring and no lighting spot.
UGR Value	Uniform luminescence, no spots, dazzle light less(UGR<22)
Installation	Various installation methods, lifting, mounting poll, pole mounting, rack mounting, die-casting aluminum powder shell, air vent convection.
Waterproof	IP65 Protection Grade with breather
Appearance	Novelty appearance
Design	Appearance design as Spaceship

Distribution Curve Flux

Multiple beam angles are available.

Power Supply Type

Various types of the power supply as options. Can meet many customers" requirements.

Explosive View

The explosive view shows every detail and the technology of the light.

Product Dimension(mm)

The dimension of different power lights as shown.

Model	SWP-FC100W	SWP-FC150W	SWP-FC200W
Power	100W±10%	100W±10%	200W±10%
Lumens	15000Lm	22500Lm	30000Lm
LED	SMD2835/3030(176PCS)	SMD2835/3030(272PCS)	SMD2835/3030(352PCS)
Power Supply	MEANWELL/SOSEN/SENSE
Voltage	100V-277Vac
Luminous Efficiency	150Lm/W
CRI	≥70
CCT	4000/5000/5700K
PF	≥0.92
Beam Angle	60°/90°/70*100°
Material	ADC 12
Life Span	≥50000H L70B50
IP Grade	IP65
Operating Temperature	-20℃ - 50℃
Net Weight(Kg)	3.2Kg	4.6Kg	6.5Kg
Gross Weight(Kg)	3.8Kg	5.3Kg	7.5Kg

Installation Process

Multiple installation methods are available.

About us

Company Profile

ALC was founded in Baoshan, Shanghai in 2008, In 2008-2014, our product is Negative ion air purifying energy-saving lamp, the number of single product production and sales is No.1 in China, the main sales markets are Europe and the United States. In 2014, ALC invested a production base in Jianhu, Yancheng, Jiangsu, with an available production area of over 6,000 square meters. In 2014-2016, ALC began productionmk of LED indoor lighting products. The main products are LED bulbs, LED downlights, LED aluminum-plastic T8 lamps. And we successfully obtained orders fro various government tender projects in Egypt. In 2017, ALC began to transform to LED lamps. OEM ,ODM services are available. The company has complete performance testing equipment for photoelectric and structural. We sincerely welcome friends at home and abroad to come to our company to negotiate.

Production Process

Application
