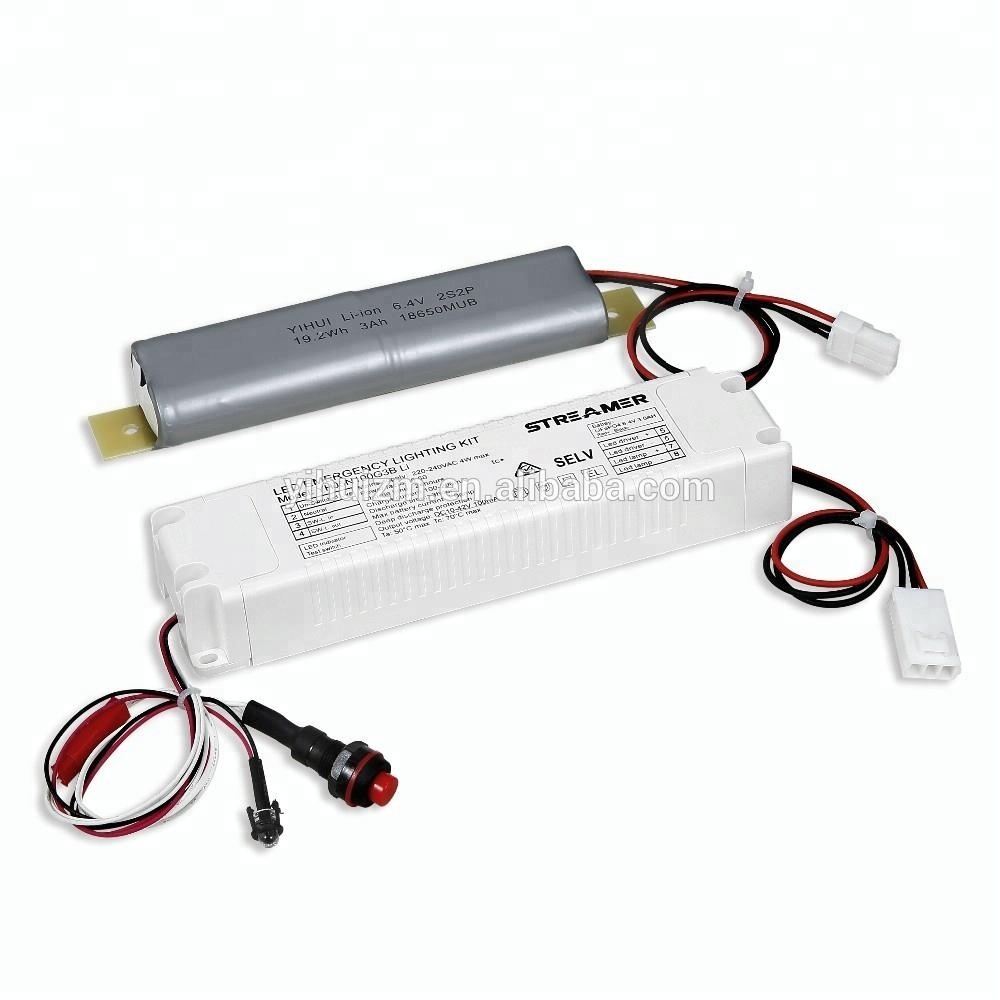

- Independent SELV, for LED emergency luminaires with LiFePO4 battery.
- Test switch and charge indicator.
- Works with LED panel
- Constant current output
- Relevant standard:
IEC 61347-2-7
AS/NZS 61347-1
EN 60598-2-22
- For use on a wide range of LED fittings to convert them from standard to maintained emergency operation.
- The satndard (mains powered) driver is retained in the circuit, so this unit is only suitable if access to the driver is available.
- Additional relay that can control LED driver.
- Use enviroment dry.
- Emergency driver in 1 size, 2-8Wattage DC10...72V (4-24 leds) constant current output.
- Forward voltage for use with LED product with a Vf 10......72V max.
- Battery capacity:
LiFePO4 6.4V 1500mAH 9.6WH 2S (18650MUB)
LiFePO4 6.4V 3000mAH 19.2WH 2S2P (18650MUB)
- When installed the fitting will work as normal on the standard driver.
In the event of a power failure the LEDs will be driver at >2W for the designed period 180 minute on battery power.
- Rated to 1000 charge/discharge cycles.
- Charge time: ≥24 hours
- Full warranty: 3 years
- Input rating voltage: 220-240V/50-60Hz
- AC input current: 35-60mA
- AC input power rating: 4W
- Output voltage: DC80V max.
- Battery charging current: 0-250mA
- Charging indicator light:
Green light on---Battery is fully cahrged
Without light---The device is something wrong and is malfunction.
- Ambient range: 0......50℃
- 3-years design life
- IP20 protection
YIHUI lighting Co., Ltd was founded in Baoan district of Shenzhen in 2011, is a professional emergency conversion kit manufacturer with our own brand “STREAMER ”.
Until now, YIHUI covers an area of more than 1500 square meters workshop and warehouse , 4 production lines , and advanced production equipments with annual production of 1,000,000 pcs kits. Since the founding of the company, YIHUI built an experienced engineer team from the very beginning to fully provide various emergency solution to meet customer’s needs.
YIHUI always adhering to the concept of continuous innovation and continuous development, constantly enriches the variety of products and opens up new markets.
Up to now, we’ve got TUV CE CB, SAA , RCM and UL certificate ,which enable us to export to most foreign countries and districts.
- Packaging Details: Inner packing---White box for inner packing.
Outer packing---50 sets per carton.
- Delivery Time: Shipped in 20 days after payment.
