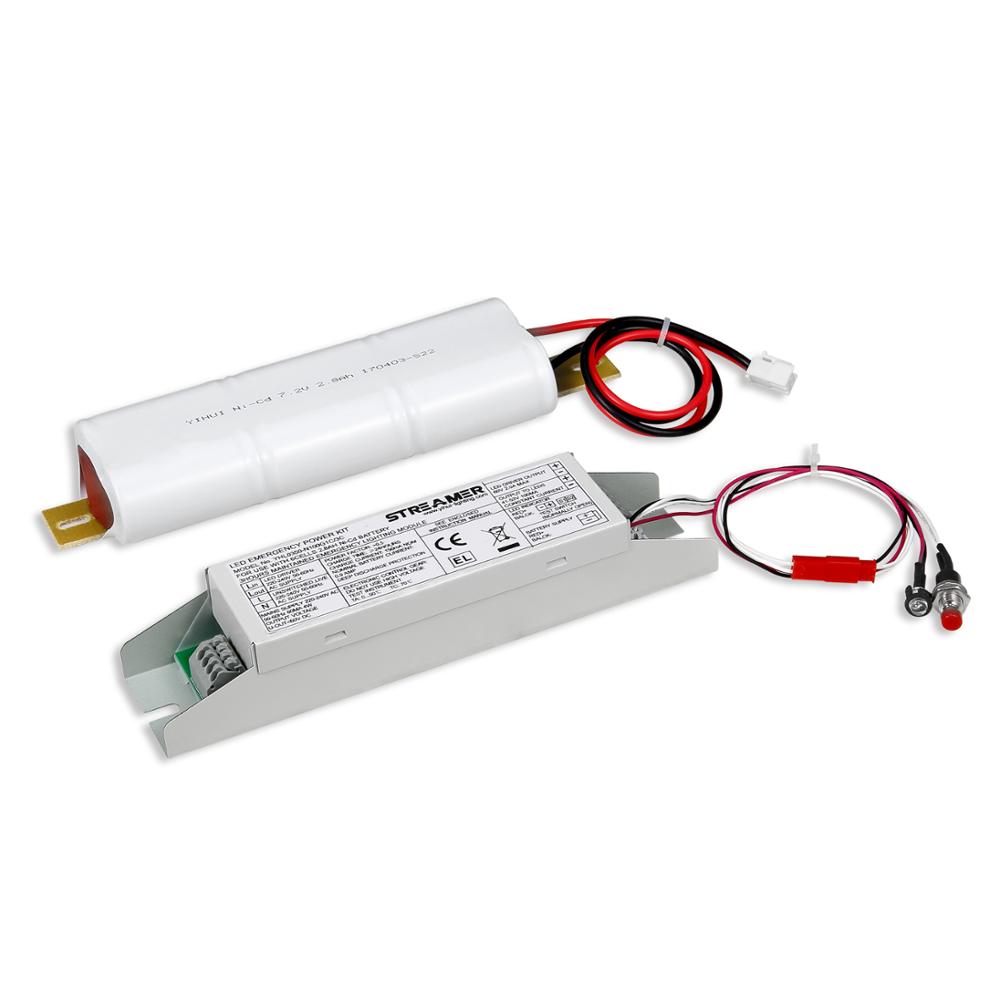

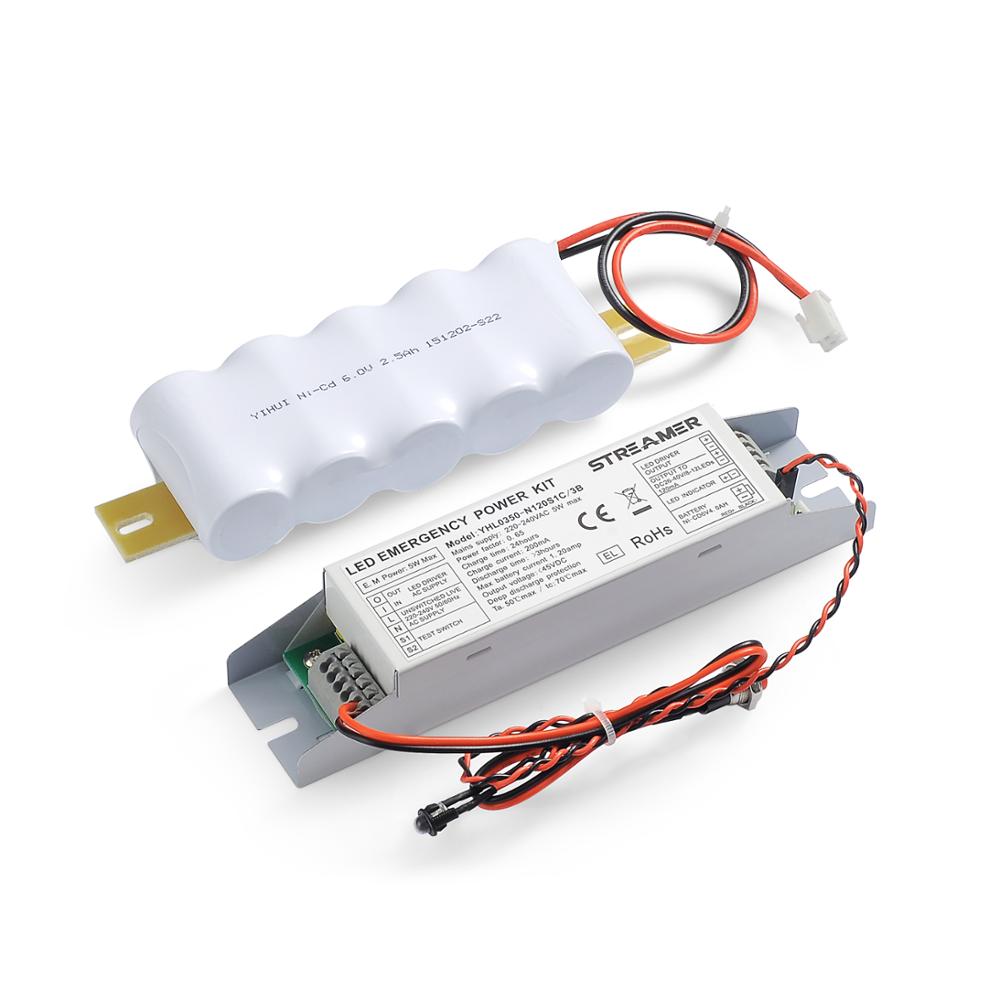

- Independent SELV, for LED emergency luminaires with Ni-Cd battery.
- Test switch and charge indicator.
- Non maintained operation.
- Relevant standard:
IEC 61347-1
IEC 61347-2-7
EN 55015
EN 60598-2-22
- For use on a wide range of LED fittings to convert them from standard to maintained emergency operation.
- The standard (mains powered) driver is retained in the circuit, so this unit is only suitable if access to the driver is available.
- Additional relay that can control LED driver.
- This module is suitable for the battery of trickle charge/maintenance charge.
- This rated emergency time for each lamp is 1 or 3 hours from this emergency kit.
- Insulation type between the emergency driver and the battery: reinforced insulation.
- After be tested by EN60598-22.3, this emergency kit is still able to charge the battery properly.
- Use environment dry.
- Emergency driver in 1 size, 2-20 wattage DC10...72V (4-24 leds) constant current output.
- Battery capacity: Ni-Cd 1500mAH; Ni-Cd 2000mAH; Ni-Cd 2800mAH; Ni-Cd 4000mAH
- 1 or 3 hours rated duration.
- Charge time: ≥24 hours
- Full warranty: 3 years
- Input rating voltage: 220-240V/50-60Hz
- AC input curent: 30-60mA
- AC input power rating: 4W max.
- Output voltage: DC10......72V, DC80V max.
- Battery charging current: 80-250mA
- Charging indicator light:
Green light---Battery is full charged.
Without light---The device is something wrong and is malfunction.
- Ambient rang ta.: 0......50℃
- Max. casing temperature tc.: 70℃
- IP20 protection.
YIHUI lighting Co., Ltd was founded in Baoan district of Shenzhen in 2011, is a professional emergency conversion kit manufacturer with our own brand “STREAMER ”.
Until now, YIHUI covers an area of more than 1500 square meters workshop and warehouse , 4 production lines , and advanced production equipments with annual production of 1,000,000 pcs kits. Since the founding of the company, YIHUI built an experienced engineer team from the very beginning to fully provide various emergency solution to meet customer’s needs.
YIHUI always adhering to the concept of continuous innovation and continuous development, constantly enriches the variety of products and opens up new markets.
Up to now, we’ve got TUV CE CB, SAA , RCM and UL certificate ,which enable us to export to most foreign countries and districts.
- Packaging Details: Inner packing---White box for inner packing.
Outer packing---20 sets per carton.
- Delivery Time: Shipped in 20 days after payment.
