Home > Products > UL certification Emergency lighting kit for 100W or below LED panel

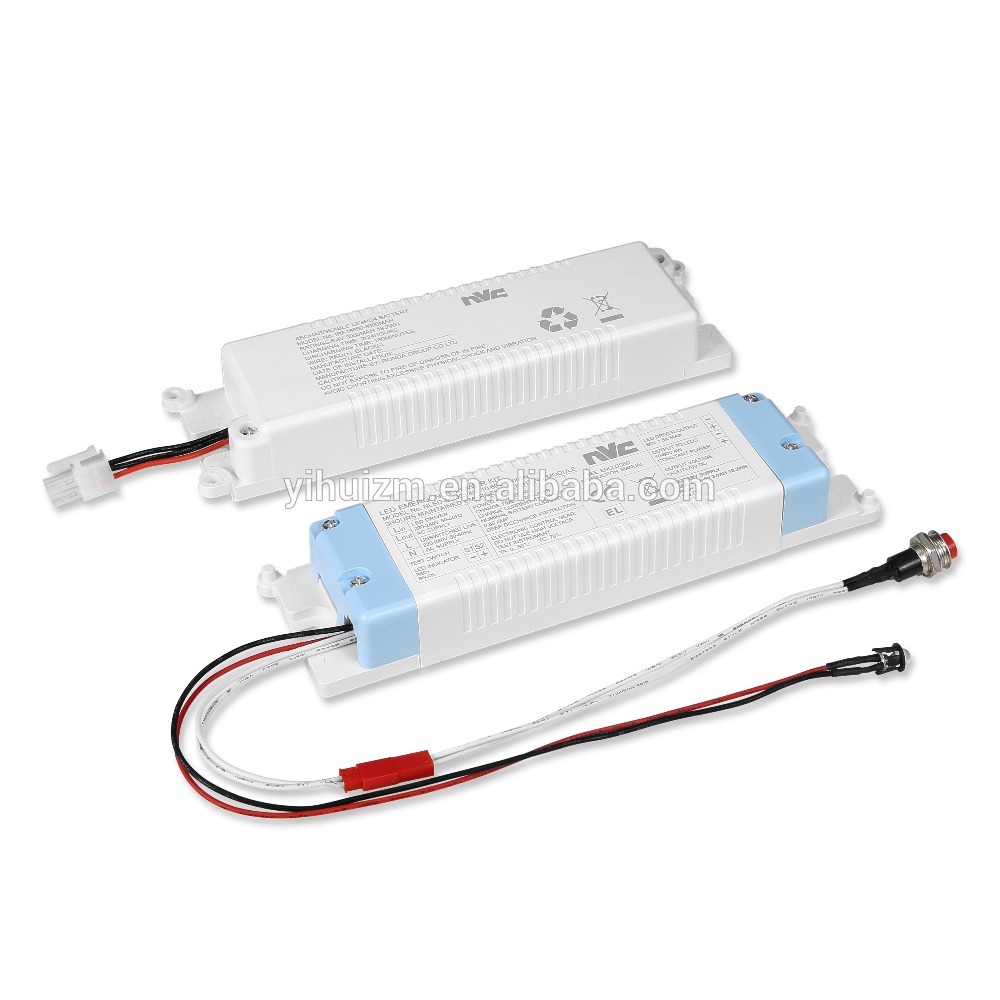

UL certification Emergency lighting kit for 100W or below LED panel
Click on the image to view the original image
Product： views：3UL certification Emergency lighting kit for 100W or below LED panel
Branch： STREAMER
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:33
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
STREAMER
Model Number:
YH06-W490
Bulb Type:
LED
Battery Type:
LiFePO4 battery
Material:
PC case
Usage:
For 100W or below LED panel
Certification:
UL
Specifications:
Other
Input Voltage:
120V-277V/50-60HZ
Output Voltage:
10-60V/60-400mA
Battery:
LiFePO4 6.4V 1500mAH
Warranty:
3 Years
Charge time:
24 Hours
Emergency Time:
90min
Duration:
4W
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Port
SHENZHEN
Product Description

 * Working with battery packs LiFePO4 6.4V 1500mAH.

 * DC constant power output at emergency mode.

 * Over-discharge protection.

 * Additional relay that can control LED driver.

 * Our product complied with UL924 standards.

Technical data

    Input(Charging)

 * Rated supply voltage                                           120-277V

 * Mains frequency                                                  50-60Hz

 * Mains current                                                       < 50mA

 * Rated power                                                         < 4W

 * Charge current                                                     0-300mA

 * Battery charge time                                              24 HRS

 * Leakage current                                                   < 0.5mA

 * Ambient temperature ta.                                       10...+50 ℃

 * Max. casing temperature tc.                                  70 ℃

   Output(Discharging)

 * Output voltage                                                     DC 10......60V

 * Output current                                                     Constant power 50-500mA

 * Current stability                                                    ± 5%

 * Output power                                                       4W ± 0.2W

 * Discharge time                                                     ≥ 1.5HRS

 * Deep discharge protection voltage                      4.7-5.1V

   Battery

 * Battery pack                                                        LiFePO4 IRF 18650 6.4V 1500mAH

 * Max. short temperature                                       70 ℃

 * Battery type                                                        18650

 * Ambient temperature ta.                                     10......+50 ℃

Installation





Our Certifications



Our Company



Packaging & Delivery

 * Packaging details: Inner packing--White box for inner packing.

                                 Outer packing--30 sets per carton.

 * Delivery time:        Shipped in 20 days after payment.
