- Place of Origin:
- Shanghai, China
- Brand Name:
- Yongxing
- Model Number:
- LA133
- Protection Level:
- IP40/IP65/IP67
- Max. Current:
- 10A
- Max. Voltage:
- 660V AC
- Color:
- red, green, yellow, black
- Certification:
- CQC, CE
- Operating temperature:
- -25℃~+55℃
- Mechanical life:
- Push button:1000000 /Keylock:300000
- Panel cutout:
- 22mm 30mm
- IP code:
- IP40 IP65 IP67
- Relative humidity:
- <98%
- Degree of pollution:
- Lever 3
- Rated thermal current:
- 10A
- Electrical Life:
- AC-15:600000/ DC-13:300000
- Supply Ability:
- 100000 Piece/Pieces per Week
- Packaging Details
- 8Pieces in one Box,400pieces in one Standard export carton
- Port
- Shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 3000 >3000 Est. Time(days) 30 To be negotiated

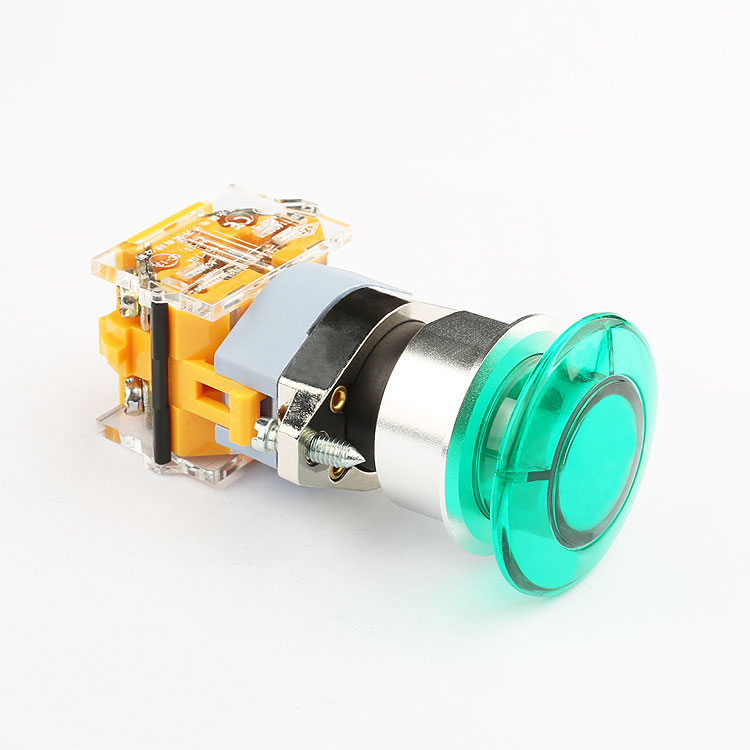

22 /30 mm no nc mushroom momentary push button switches with LED
| Operating temperature | -25°c~+55°c |
| Installation group | III Class |
| Degree of pollution | Level 3 |
| Installation height | ≤2000m |
| Vibration | 10~200HZ.1mm.15g |
| Relative humidity | ≤98% |
| Protection degree | IP40 or IP65 or IP67 |
| Rated Insulation Voltage | AC660V |
| Rated Thermal current | 10A |
| Max insulation voltage | 2500V/min |
| Usage Category | AC-15 DC-13 |
| Pusgbutton Mushrrom-head pushbutton&illuminated pushbutton actuator | 1 million |
| Rotary switch,Key switches&Maintained action actuator | 0.3 million |
Please contact our online customer service if you want know more information
Our quality policy is:"Make progress by Technology,Create Brand by Quality".You have seen our successful past and we are striving to achieve what you expect.Let us go hand in hand and make sincere cooperation for a glorious future.
Cooperative partner
It has passed the certification of ISO9001:2008 Quality Management System and many of its products have passed the quality certification of authoritative certification bodies such as CQC,UL and ENEC,CE,ROHS.
We supply sample service and the sample can be sent to u by express very fast, please contact us.
Our bulk goods are usually shipped by sea, and will arrive in 30days, if u set a small order, we can ship them by express or air.
Q1: Why choose your company?
A1:(1) We have all kinds of customized products with professional and exquisite.
(2) Any inquiries will be replied within 24 hours. Our sales team will try our best to support you.
(3) We strictly control every detail of production, and every product is inspected 100% by our QC team before delivery.Moreover, our production is abided by ISO9001,CQC, CE, UL, RoHS, ENEC and so on.
Q2: What’s the advantages of your company?
A2:(1) 30-year experience in manufacturer switches, more than 10-year experience on export.
(2) We design goods for the company of Extron, Midea, Philips, Povos and so on.
(3) Original manufacturer with direct factory price, Competitive & Fashionable
(4) Safe payment terms: T/T
(5) We offer EXW, FOB, CIF, etc.
(6) OEM available, Customers" designs are warmly welcome.
Q3:What’s your mainly products?
A3:We Produce and sell high quality electronic switches, more than 20 categories, including pushbutton switches, rocker switches, rotary switches, key lock switches, dip switches, slide switches, refrigerator switches, micro and mini switches, indicators,buzzers, terminal blocks, solenoid valves and so on.
Q4:How do I know that you have sent the products out?
A4:Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times.
Q5:How you will send the goods to us?
A5:For urgent orders, we will send to your door by air. For bulk orders, it’s a good way to send to you by sea but will take much time. For small orders, express will be best. We can send the goods to you by DHL, FEDEX, UPS, EMS etc
Send your inquiry Detail in the Below for free samples,Click “Send” NOW !
