Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- yongxing
- Model Number:
- KCD1
- Max. Current:
- 16A
- Max. Voltage:
- 250v
- Mechanical Life:
- 100000 Cycles
- Color:
- Red, Yellow ,Green, Black, White, Blue, Gray, Orange
- Certificate:
- CQC, CE, ENEC, RoHs
- Current:
- 16A
- Operating temperature:
- T55,T85,T125
- Electrical life:
- 10000cycles
- Material:
- plastic
- Dielectric Strength:
- 1500V AC 1min
- Contact Resistance:
- ≤50mΩ
- Insulation Resistance:
- ≥1000MΩ
- Name:

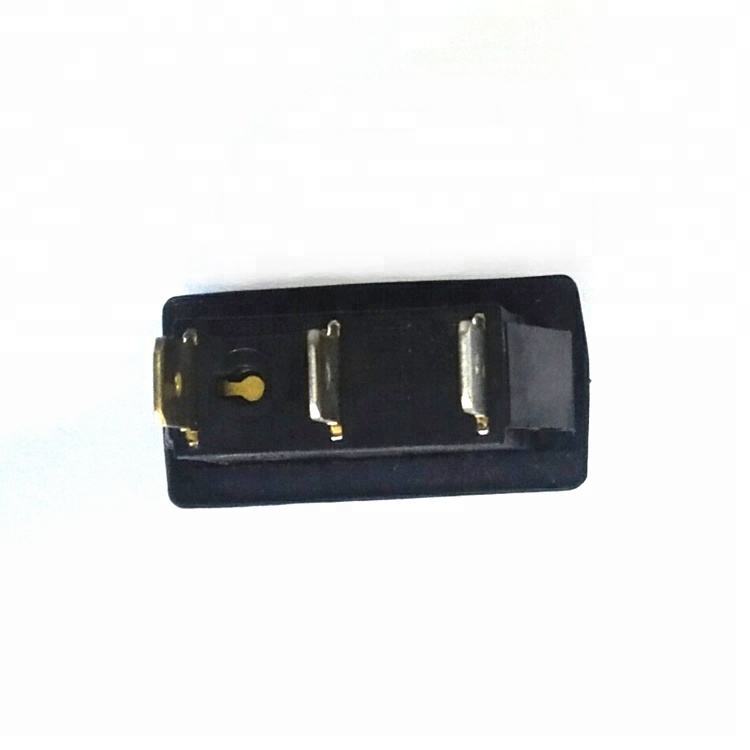

- KCD1 rocker switch
Supply Ability
- Supply Ability:
- 1000000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 100Pieces in one bag,1000pieces in one Standard export carton

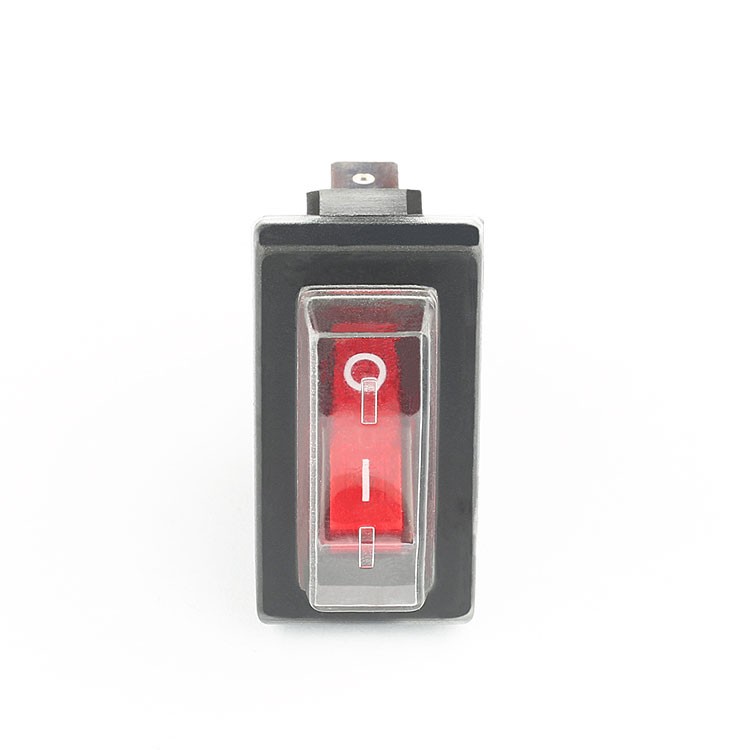

hot selling free sample 16a 250v t125/55 kcd1 rocker switch waterproof cover
- Port
- Shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 25 To be negotiated
on off 16a 250vac multi color illuminated DPST mini rocker switch with led light
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 - 100,000 cycles |
| Certification | CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) | 16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) | 16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) | 16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
