- Place of Origin:
- Shanghai, China
- Brand Name:
- Shangkai, Shangkai
- Model Number:
- JL
- Application:
- Home Kitchen
- Temperature of Media:
- Medium Temperature
- Power:
- Solenoid
- Media:
- Water
- Port Size:
- 1/4 6mm, 3/8 9mm
- Structure:
- Shutoff
- Standard or Nonstandard:
- Standard
- name:
- JL
- Certification:
- CQC, RoHS
- Crust Material:
- Plastic
- Ambient temperature:
- -25℃~+55℃
- ROHS/Sanitation grade:
- Comply with ROHS
- Max.Medium Temperature:
- 90℃
- Body material:
- POM
- Type:
- Normal Colse
- Supply Ability:
- 10000000 Piece/Pieces per Week of 12v high frequency 220v 50hz inlet water solenoid valve
- Packaging Details
- normal closedJL003 inlet water solenoid valve of
128 pieces in one Standard export carton , water solenoid valve .
- Port
- Shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 30 To be negotiated

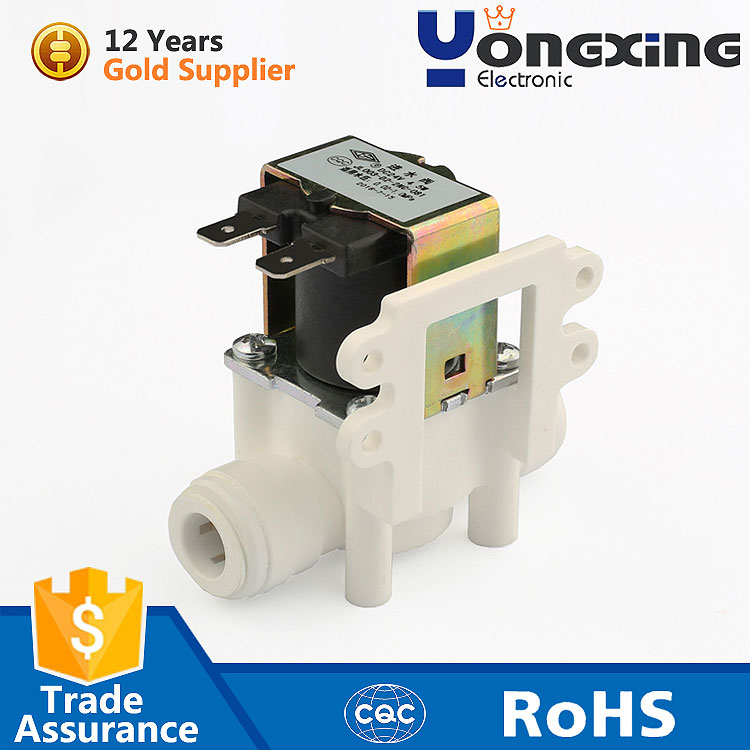

CQC certification 12VDC T25 use liquid water pilot type solenoid vale
| Principle | Straight type,Pilot type |
| Rating voltage | 12VDC,24VDC,110VAC/50H2,200-240VAC/50HZ |
| Type | Normal close |
| Medium | water |
| Pressure range | 0.02-0.8 MPa(0.2-8 bar)/0.02-1.0 MPa(0.2-10 bar) (Customizable) |
| Ambient Temp | -25—55°C |
| Max. medium Temp | 90°C |
| lnsulation class | Class "B"(130℃) / "F" (155℃ )/"H"(180℃) |
| Duty cycle | 100% at 25°C(for medium Temp.);lntermittent operation at 90C (for medium Temp.) |
| ROHS/Sanitation grade | According with ROHSAccording with FDA & drinking water quality for The material of touching the medium |
| Port size/amounting | G1/4 solenoid connector |
| Installation type | Use screw to fix the 4 holes on the top panel |
| Other | Customizable |
