Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Shiningkey(SK)
- Model Number:
- RS3-13 7 12 position rotary switch
- Max. Current:
- 6A
- Max. Voltage:
- 250V AC
- Mechanical Life:
- 100,000
- Name:

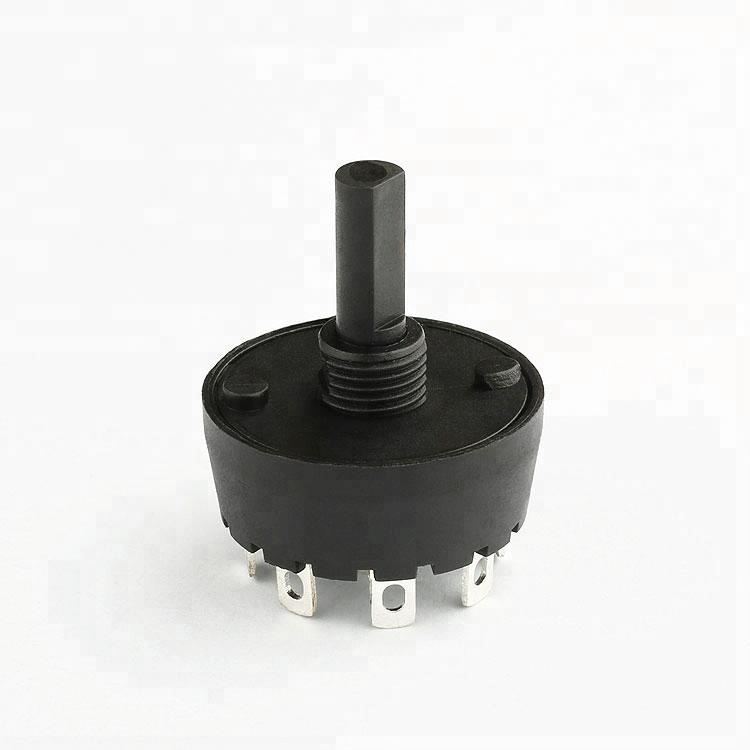

- 250 v pedestal fan 2 way 7 12 position rotary switch
- Type:
- RS3-13 rotary switch
- Color:
- Black
- Poles:
- SP (single pole)
- Max. Rating Current&Voltage:
- 6.5A/250V AC , 13A/125V AC
- Operating temperature:
- T50
- dielectric resistance:
- 1500V
- ContactResistance:
- ≤50mΩ
- Insulation resistance:
- ≥100mΩ
- Electronic life:
- 10,000cycles
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 250 v smd encoder push pull electric heater pedestal fan 2 way 7 position rotary switch for lamp of
50Pieces in one bag,1000pieces in one Standard export carton , rotary switch for lamp .
- Port
- shanghai
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 10 >10 Est. Time(days) 20 To be negotiated
