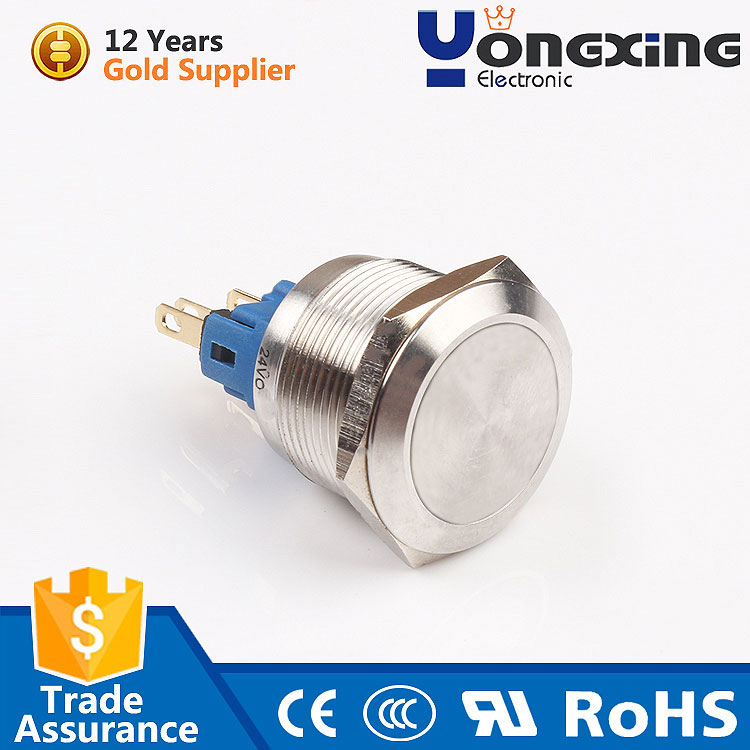

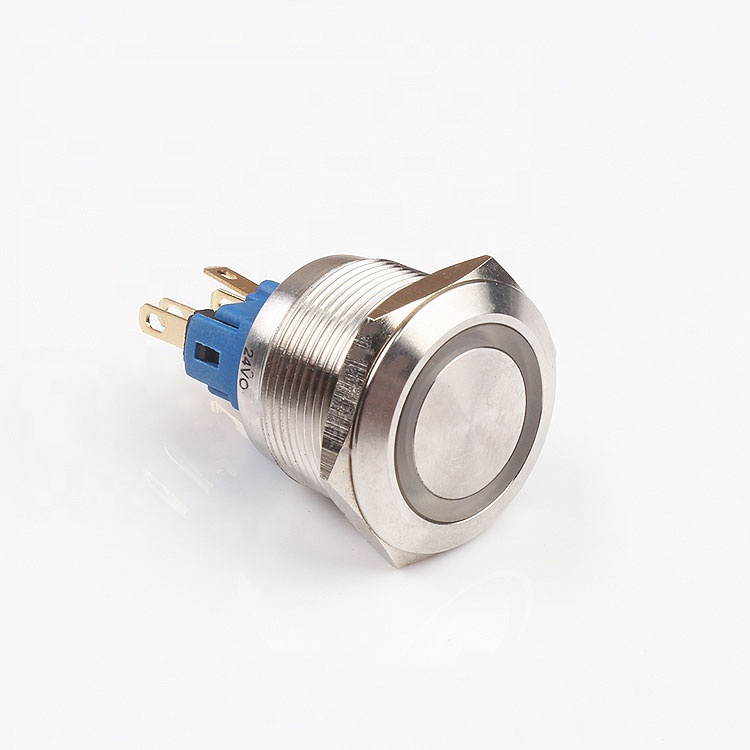

22mm 3 positions low current 2A 36VDC waterproof mental push button switch
Click on the image to view the original image
Product: views:422mm 3 positions low current 2A 36VDC waterproof mental push button switch
Branch: Yongxing
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 20:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Yongxing
Model Number:
YXGQ22B
Protection Level:
IP67
Max. Current:
5A
Max. Voltage:
250V
Name:
Shanghai Yongxing Metal switch
The Front Shape:
Domed
Terminal Type:
X Two Terminal breakpoints slow moving contact
Switch Specifications:
2A/36VDC
Contact Resistance:
≤50MΩ
Insulation Resistance:
≥1000MΩ
Dielectric Strength:
2000VAC
Mechanical Life:
>1,000,000 times
Electrical Life:
>200,000 times
Operating Temperature:
-20℃~+55℃
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Week of 4pin 22mm 16a 250v rectangular push button switches
Packaging & Delivery
Packaging Details
4pin 22mm 16a 250v rectangular push button switchesof 50Pieces in one box,1000pieces in one Standard export carton ,metal push button switch.
Port
shanghai
Picture Example:
package-img
Lead Time:
Quantity(Pieces)1 - 3000 >3000
Est. Time(days)30To be negotiated
