Click on the image to view the original image
- Place of Origin:
- Shanghai, China
- Brand Name:
- SK(shangkai)
- Model Number:
- LA133 Series
- Protection Level:
- IP40/IP65/IP67
- Max. Current:
- 10A
- Max. Voltage:
- 660v
- name:

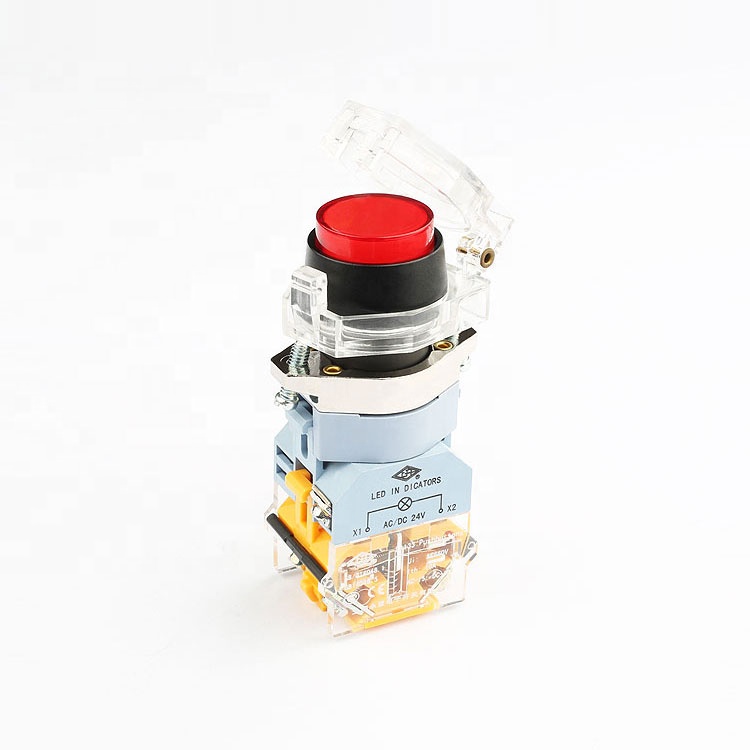

- 10a 660v 22mm plastic led push button switch
- Protection degree:
- IP40I, P65, IP67
- Contact Resistance:
- ≤50mΩ
- Insulation Resistance:
- ≥100MΩ
- Dielectric Strength:
- 2,500V
- Electronic Life (cycles):
- 300,000
- Mechanical Life (cycles):
- 250000
- Operating temperature:
- -25℃~+55℃
- Max.Rating Current&Voltage:
- 10A660V AC
- Certification:
- CQC CE CCC
- Supply Ability:
- 20000 Piece/Pieces per Month 10a 660v 22mm plastic led push button switch
- Packaging Details
- 50Pieces in one box,1000pieces in one Standard export carton,
Push Button Switch
- Port
- shanghai
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 25 To be negotiated

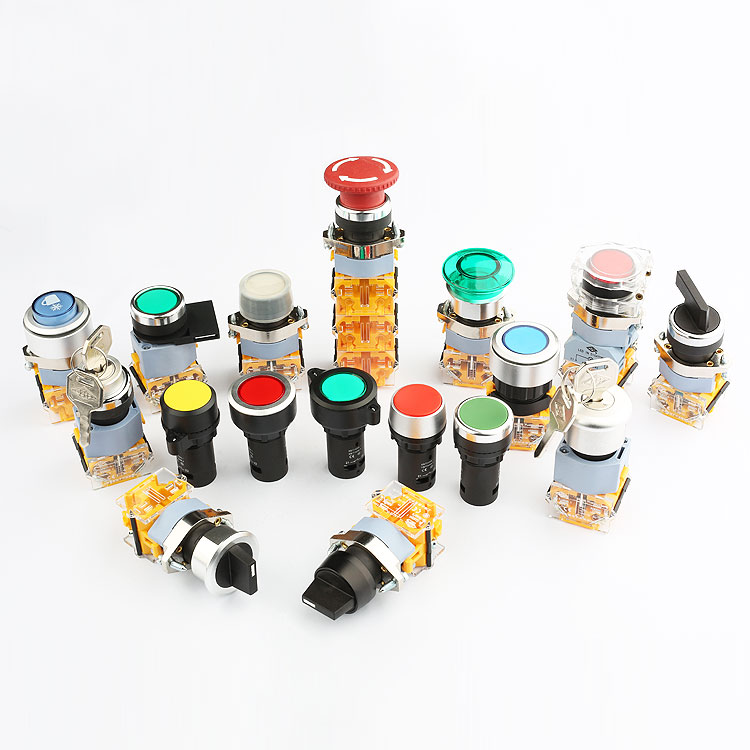

Yongxing LA133 on off multi color led momentary latching push button switch
| Max. Rating Current& Voltage | 10A 660V AC |
| Contact Resistance | ≤50mΩ Push Button Switch |
| Insulation Resistance | ≥100MΩ Momentary Push Button Stomp Switch |
Electronic Life (cycles) | 300000 Stay Put Push Button |
| Mechanical Life (cycles) | 250000 |
| Operation temperature | -25℃~+55℃ |
| Dielectric Stength | 2500V |
| Certification | CQC CE CCC |
