Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Shanghai Yongxing
- Model Number:
- KA11
- Protection Level:
- IP40
- Max. Current:
- 16A
- Max. Voltage:
- 250VAC
- Name:

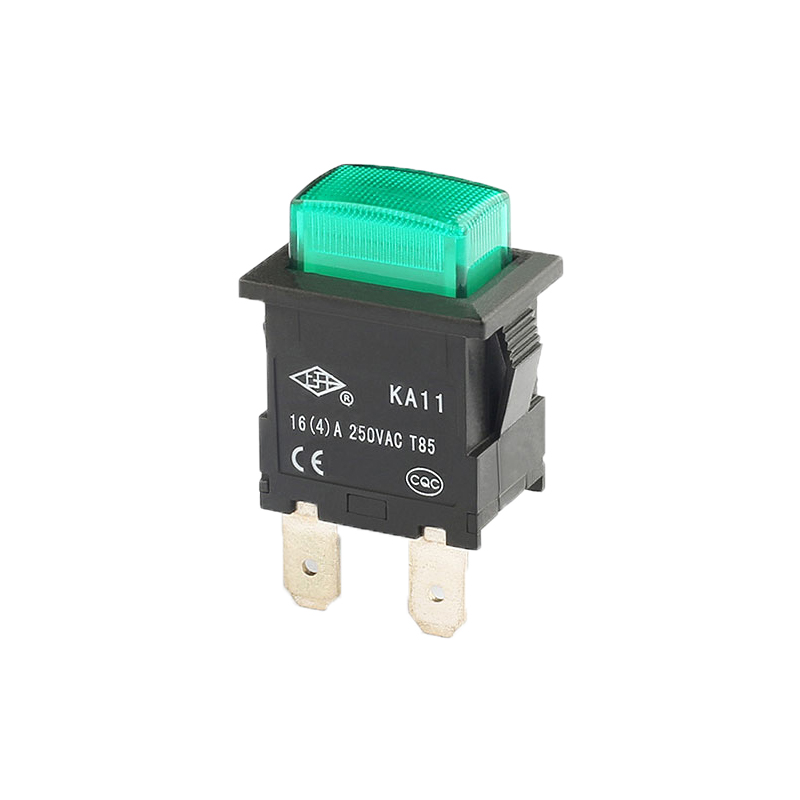

- KA11 series push button switch
- Color:
- Variety
- Certificate:
- CQC,CB
- Material:
- Plastic
- Mechanical Life:
- 50,000 cycles
- Electrical Life:
- 10,000 cycles
- Contact Resistance:
- ≤50m
- Insulation Resistance:
- 100M Min
- IP code:
- IP40
- Max.Rating Current&Voltage:
- 16(4)A 250VAC
Supply Ability
- Supply Ability:
- 1000000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 100 pcs in one poly bag and then put in master carton
- Port
- Shanghai port
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 3000 >3000 Est. Time(days) 30 To be negotiated
