Home > Products > push button switch with 30mm short lever 3 position return action selector switch

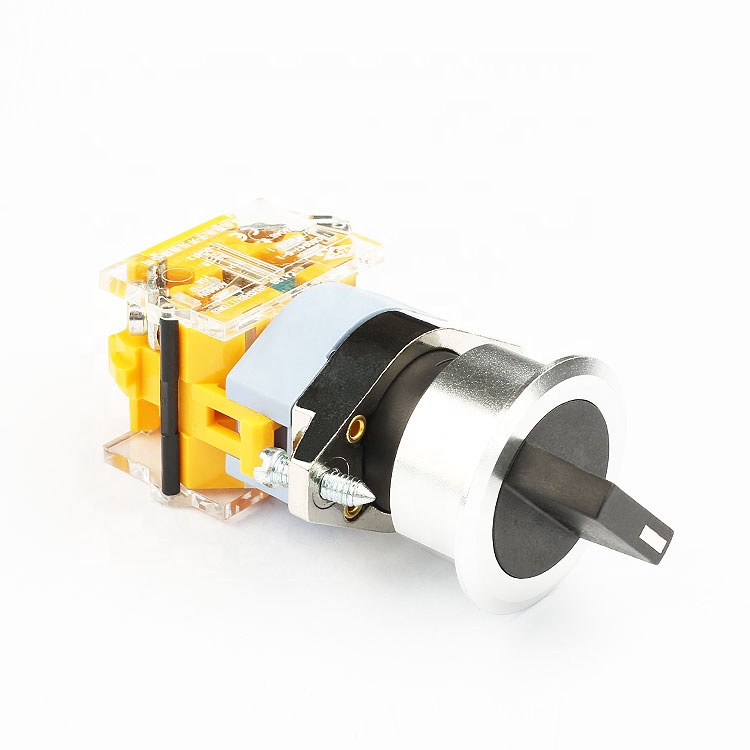

push button switch with 30mm short lever 3 position return action selector switch
Click on the image to view the original image
Product: views:3push button switch with 30mm short lever 3 position return action selector switch
Branch: Yongxing
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 20:36
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Yongxing
Model Number:
LA133
Protection Level:
IP40/IP65/IP67
Max. Current:
10A
Max. Voltage:
660V AC
Cap colors:
red, green, yellow, black
Pushbutton Head:
long lever
Certefication:
CQC, CE
Mechanical life:
Push button:1000000 /Keylock:300000
Electronic life:
AC-15:600000/ DC-13:300000
Operating temperature:
-25℃~+55℃
IP code:
IP40 IP65 IP67
Relative humidity:
<98%
Degree of pollution:
Lever 3
Rated thermal current:
10A

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
40X40X40 cm
Gross weight per batch:
7.28 kg
Package Type:
30mm 1normal l cose machine long lever on off switch the packing is 10 Pieces in one Box,400pieces in one Standard export carton
Picture Example:
package-img
package-img
Lead Time:
Quantity(Piece)1 - 2000>2000
Est. Time(days)30To be negotiated
