Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Yongxing
- Model Number:
- KA6-11-BAA-RB
- Protection Level:
- IP40
- Max. Current:
- 3A
- Max. Voltage:
- 250V

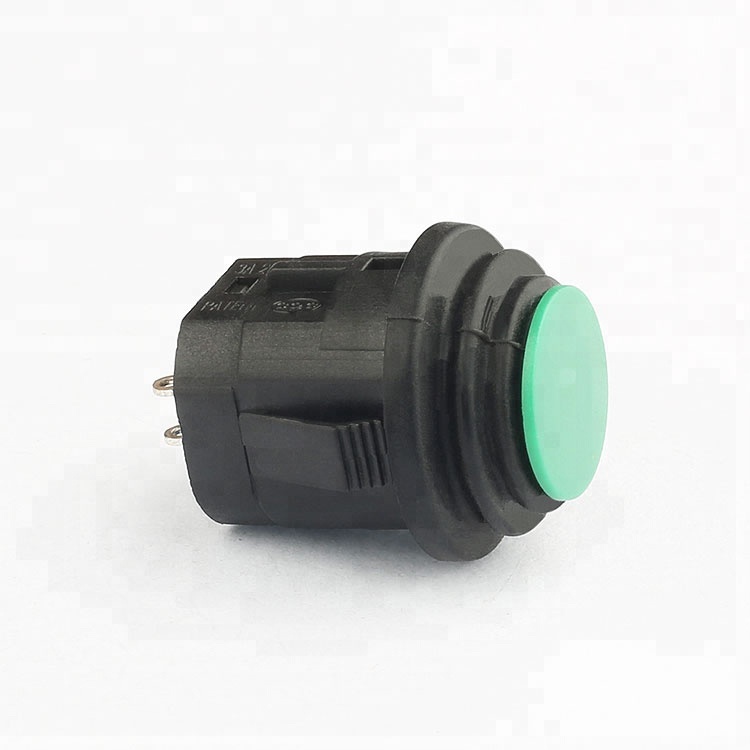

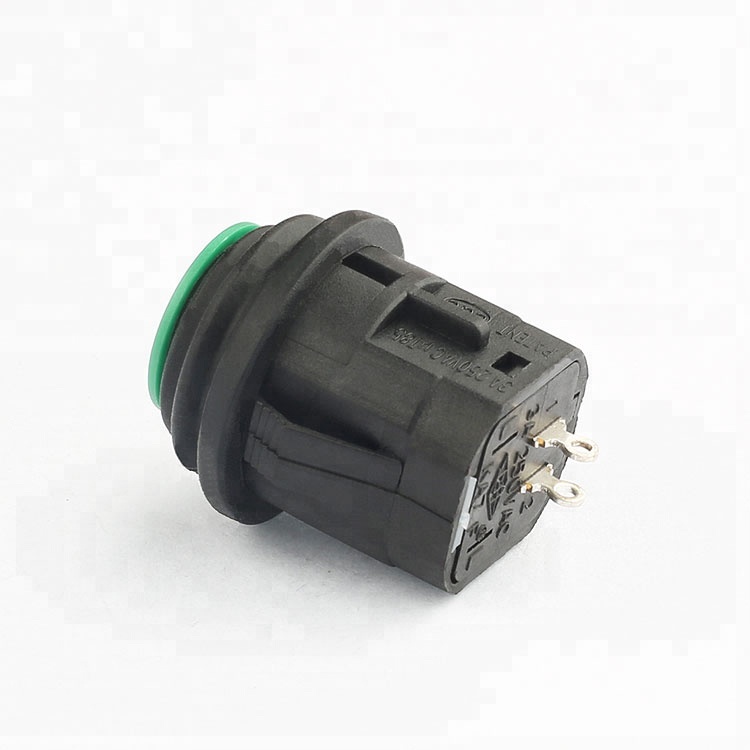

- Product name:
- Yongxing KA6
- Certification:
- CQC,CE
- Mechanical life:
- 50000 Cycles
- Electrical Life:
- 100000 Cycles
- Operating temperature:
- -25℃~+85℃
- IP Code:
- IP40/IP65
- Contact Resistance:
- ≤50mΩ
- Insulation Resistance:
- ≥100mΩ
- Dielectric strength:
- 1500V
- Max. Rating Current & Voltage:
- 3A / 250V AC
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 40X40X40 cm
- Gross weight per batch:
- 0.285 kg
- Package Type:
- 100 pcs in one poly bag and then put into master carton.
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 2000 >2000 Est. Time(days) 20 To be negotiated
