Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Yongxing
- Model Number:
- FD16-121L2D
- Protection Level:
- IP40
- Max. Current:
- 1A
- Max. Voltage:
- 250VAC
- Name:

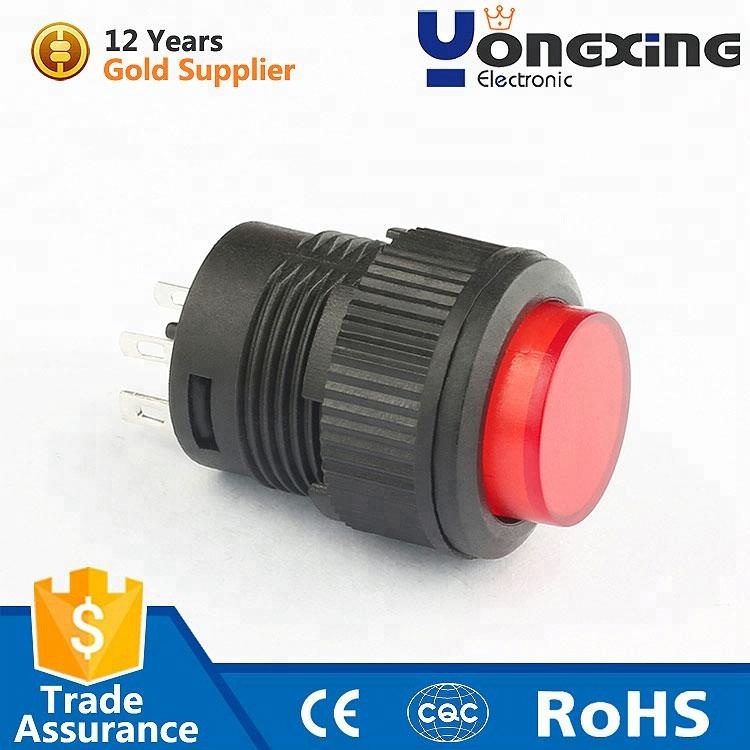

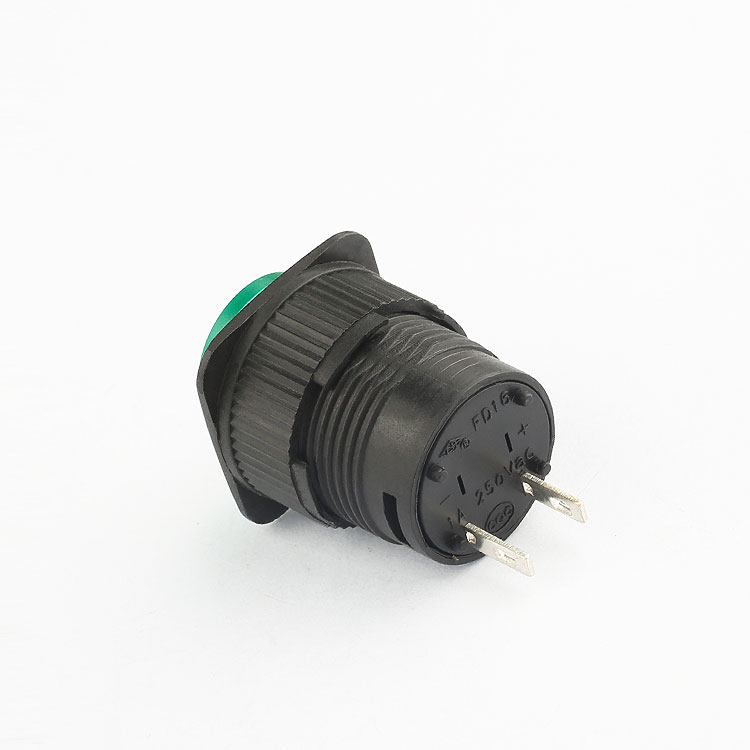

- Yongxing FD16
- Certification:
- CQC, CE
- Operating temperature:
- -25 ℃~+55℃
- Electronic life(cycles):
- Moment:10,000 Alternate:5,000
- Mechanical life(cycles):
- Moment:50,000 Alternate:10,000
- Insulation resistance:
- 100MΩ 120v push button switch
- Dielectric Stength:
- 1,500V
- Contact Resistance:
- 50m Max
- Insulation Resistance:
- 100M Min
- IP code:
- IP40
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 40X40X40 cm
- Gross weight per batch:
- 0.5 kg
- Package Type:
- 1000 pieces in one standard export carton ,2 step push button switch
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 2000 >2000 Est. Time(days) 20 To be negotiated
