Home > Products > JL003 18S low pressure plastic water solenoid valves

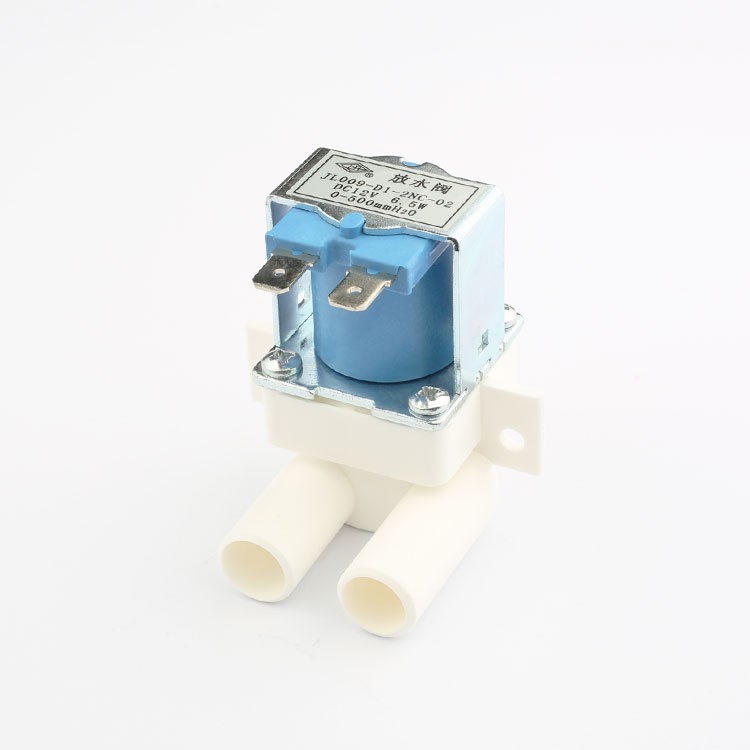

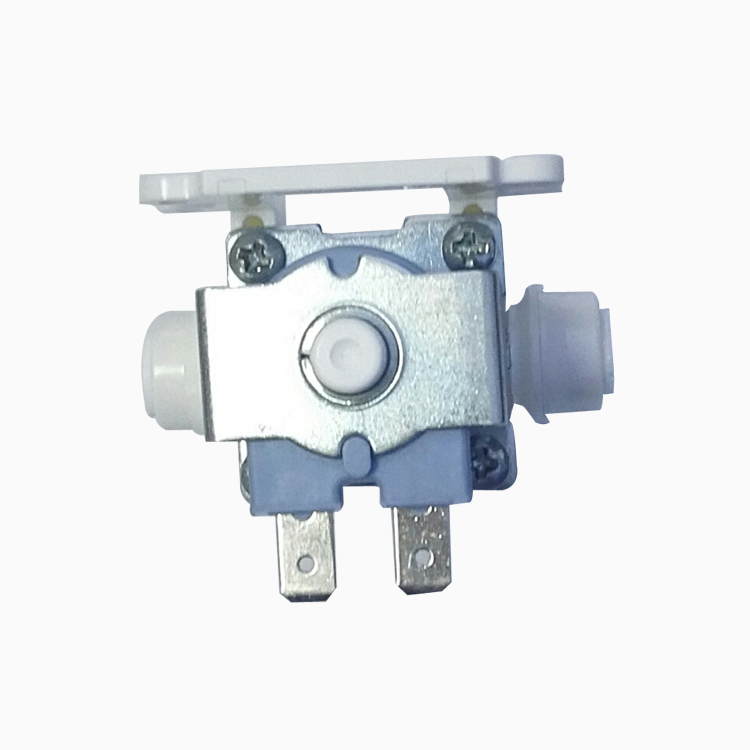

JL003 18S low pressure plastic water solenoid valves
Click on the image to view the original image
Product: views:1JL003 18S low pressure plastic water solenoid valves
Branch: Shangkai
Type: Normal Colse
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 20:36
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Shangkai
Model Number:
JL003-D2-2NC-005
Application:
Home Kitchen
Material:
Plastic
Temperature of Media:
Medium Temperature
Pressure:
Medium Pressure
Power:
Solenoid
Media:
Water
Port Size:
1/4 6mm
Structure:
Shutoff
Standard or Nonstandard:
Standard
name:
low pressure plastic water solenoid valves
Certification:
CQC, RoHS
Crust Material:
Plastic
Ambient temperature:
-25℃~+55℃
ROHS/Sanitation grade:
Comply with ROHS
Max.Medium Temperature:
90℃
Body material:
POM
Type:
Normal Colse
principle:
pilot type
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Week of 12v high frequency 220v 50hz inlet water solenoid valve
Packaging & Delivery
Packaging Details
JL003 18S low pressure plastic water solenoid valves of
128 pieces in one Standard export carton , water solenoid valve .
Port
Shanghai
Lead Time:
Quantity(Pieces)1 - 2000 >2000
Est. Time(days)15To be negotiated

JL003 18S low pressure plastic water solenoid valves

Product Description




 Principle Straight type,Pilot type
 Rating voltage 12VDC,24VDC,110VAC/50H2,200-240VAC/50HZ
 Type Normal close
 Medium water
 Pressure range

 0.02-0.8 MPa(0.2-8 bar)/0.02-1.0 MPa(0.2-10 bar)

 (Customizable)

 Ambient Temp -25—55°C
 Max. medium Temp 90°C
 lnsulation class Class "B"(130℃) / "F" (155℃ )/"H"(180℃)
 Duty cycle

 100% at 25°C(for medium Temp.);lntermittent operation at

 90C (for medium Temp.)

 ROHS/Sanitation grade

 According with ROHSAccording with FDA & drinking water

 quality for The material of touching the medium

 Port size/amounting G1/4 solenoid connector
 Installation type Use screw to fix the 4 holes on the top panel
 Other Customizable
