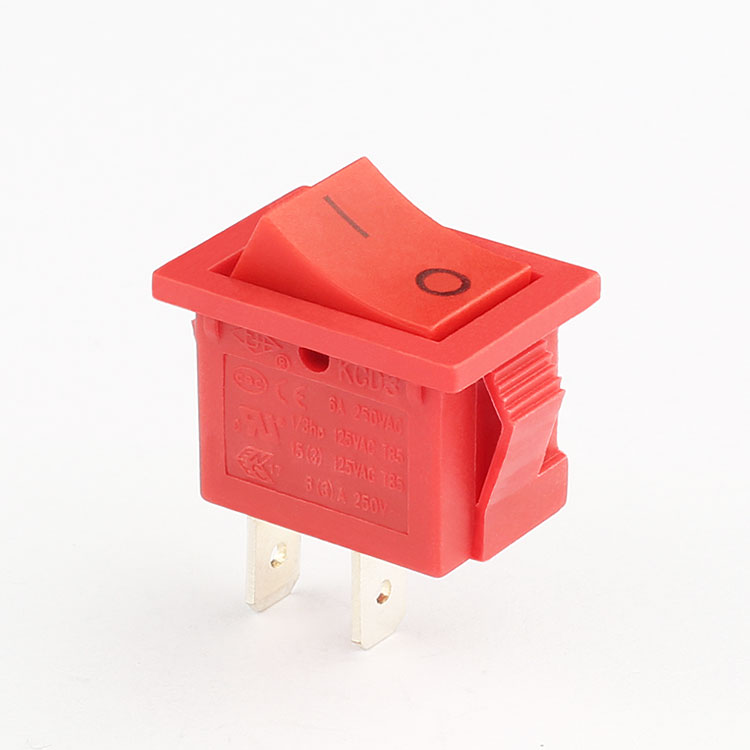

KCD3 6a 250v spst on off red 2 pin rocker switch t85 1e4
Click on the image to view the original image
Product： views：2KCD3 6a 250v spst on off red 2 pin rocker switch t85 1e4
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:36
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Shangkai(SK)
Model Number:
KCD3-11-CB1B-R-R-01
Max. Current:
6A/10A
Max. Voltage:
250V
Mechanical Life:
100,000 cycles
Certificate:
UL,CE,CQC,CB,ENEC,ROHS
Dielectric Strength:
1500V AC 1min
Contact Resistance:
≤50mΩ
Insulation Resistance:
1,000mΩ
Electrical Life:
10,000 cycles
Material:
PA66
Pins:
2
Function:
ON-OFF
IP Rating:
IP40

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
15X12X10 cm
Gross weight per batch:
0.6 kg
Package Type:
100 pcs in one poly bag and then put into master carton
Picture Example:
package-img
Lead Time:
Quantity(Piece)1 - 1500>1500
Est. Time(days)20To be negotiated
