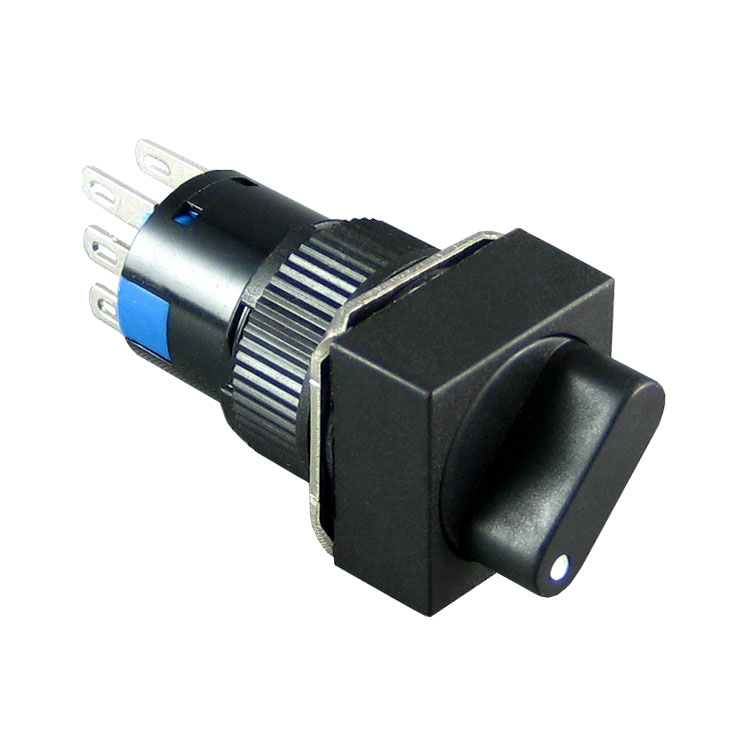

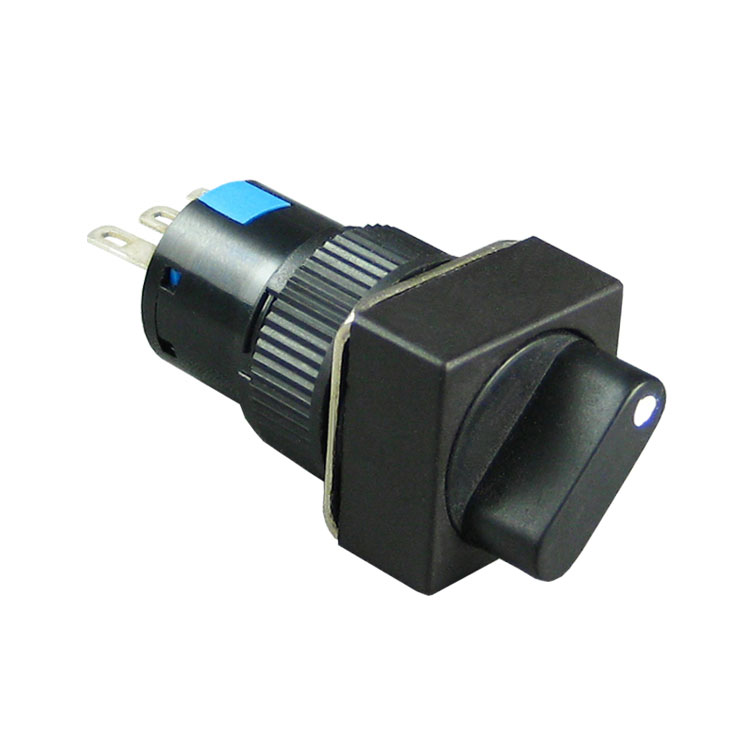

Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Shangkai(SK)
- Model Number:
- AX16-111-2
- Max. Current:
- 3A
- Max. Voltage:
- 250V
- Mechanical Life:
- 50,000 cycles
- Certification:
- CQC CE
- Color:
- Black
- Position:
- 2
- Function:
- Self-locking
- Electrical Life:
- 25,000 cycles
- Mounting hole size:
- 16mm
- Name:
- 2 position16mm 3A 250vSelf-lockingrotary switch
- max.rating cnrrent&voltage:
- 3A 250vac
- contact resistance:
- <50mΩ
- insulation resistance:
- ≥100MΩ
Supply Ability
- Supply Ability:
- 20000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 2 position16mm 3A 250vSelf-lockingrotary switch the packing is 25 pcs in one pvc box and then put into master carton
- Port
- Shanghai
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 20 To be negotiated
