Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Shangkai(SK)
- Model Number:
- AX16-212-3
- Max. Current:
- 3A
- Max. Voltage:
- 250V
- Mechanical Life:
- 50,000 cycles
- Certification:
- CQC CE
- Color:
- Black
- Terminals:
- 6 pins
- Mounting hole size:
- 16mm
- Electrical life:
- 25,000 cycles
- Position:
- 3
- max.rating cnrrent&voltage:
- 3A 250vac
- contact resistance:
- <50mΩ
- insulation resistance:
- ≥100MΩ
- operating temperature:
- -25℃-55℃
Supply Ability
- Supply Ability:
- 10000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 25 pcs in one pvc box and then put into master carton
- Port
- shanghai

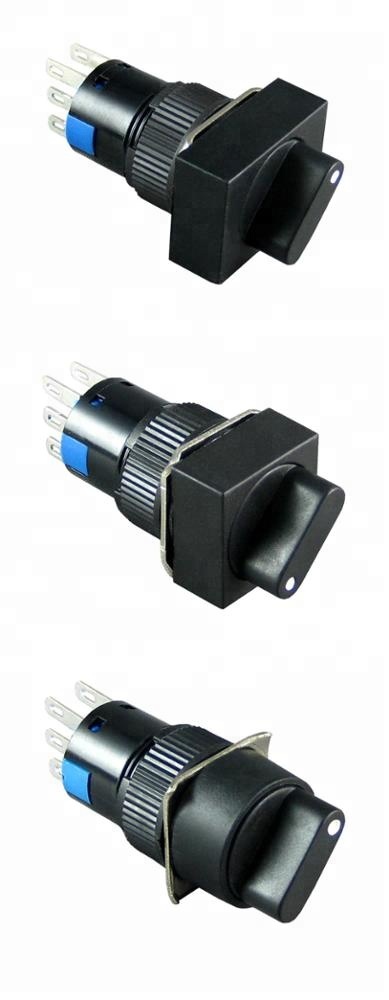

- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 20 >20 Est. Time(days) 20 To be negotiated
