Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Yongxing
- Model Number:
- KW15-12
- Max. Current:
- 16A
- Max. Voltage:
- 250V
- Operating Temperature:
- -25℃~+125℃
- Protection Level:
- IP40
- Product Name:

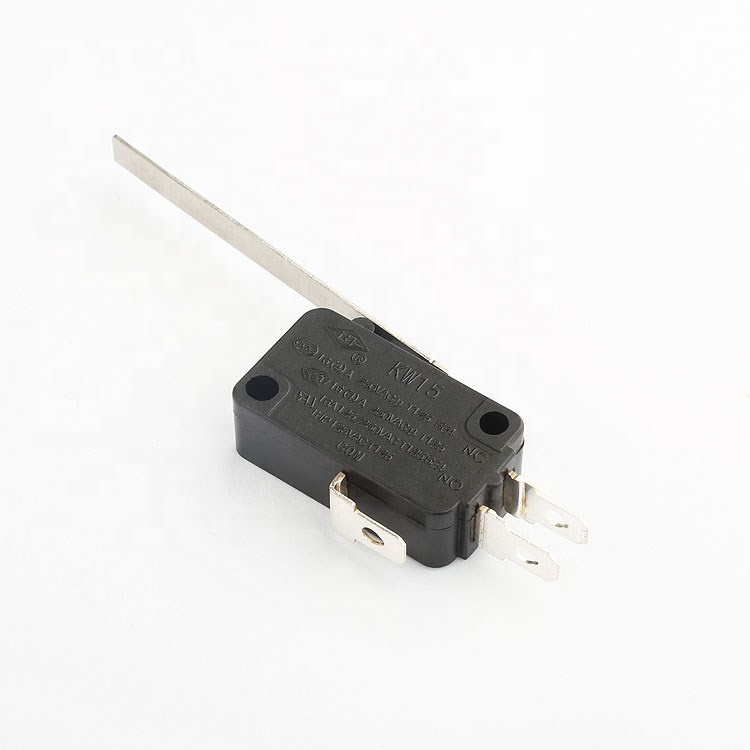

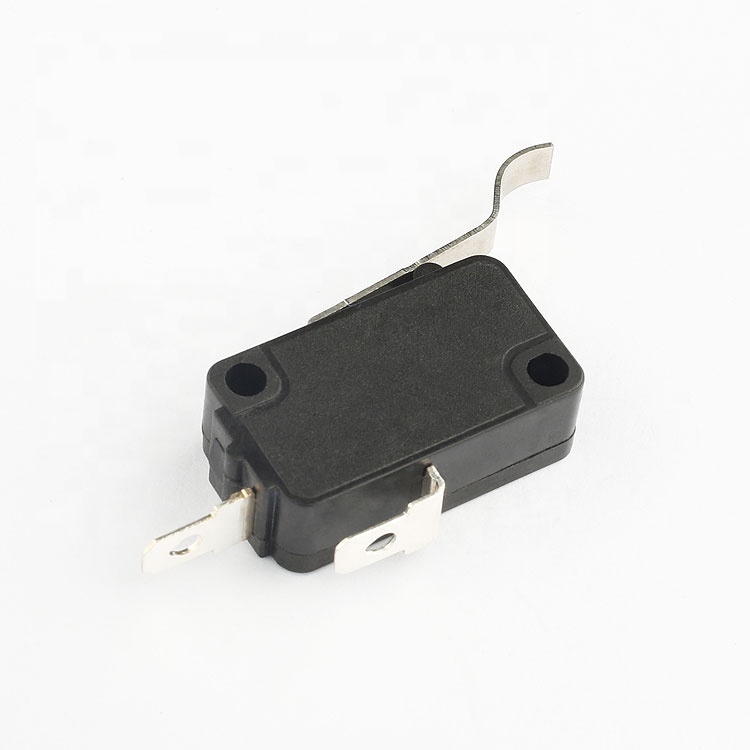

- Shanghai Yongxing KW15
- Certification:
- CQC CE ENEC
- Color:
- Black,White,Gray,Blue
- Electrical life:
- 50,000 cycles
- Function:
- SPDT 1NC1NO
- ContactResistance:
- 50m Max
- Insulation Resistance:
- 100M Min
- Dielectric strength:
- 1500V
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 40X40X40 cm
- Gross weight per batch:
- 1.004 kg
- Package Type:
- 150 pcs in one pvc box and then put into master carton
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 3000 >3000 Est. Time(days) 30 To be negotiated
