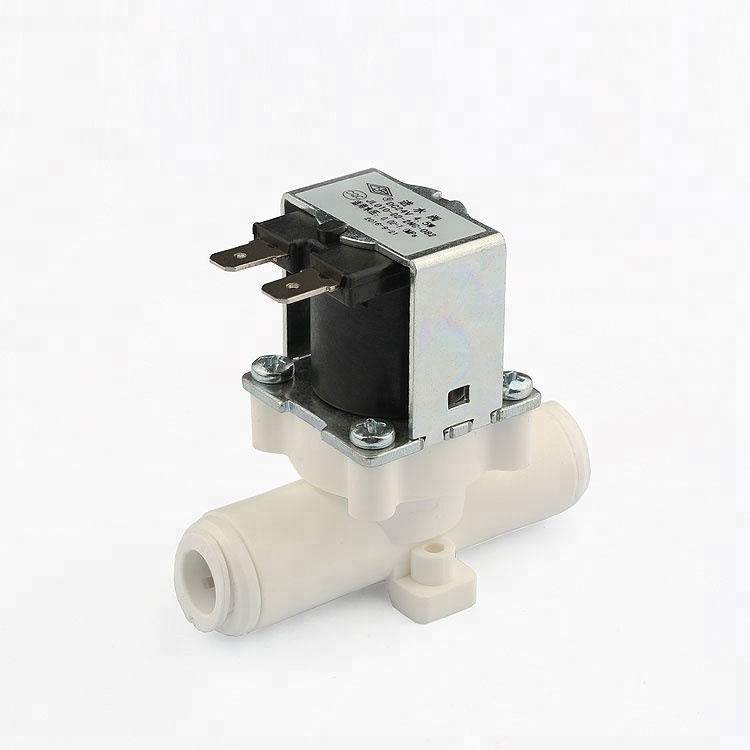

Click on the image to view the original image
- Place of Origin:
- Shanghai, China
- Brand Name:
- Shangkai(SK)
- Model Number:
- JL010-D2-2NC-002
- Application:
- General
- Material:
- Plastic
- Temperature of Media:
- Medium Temperature
- Pressure:
- Medium Pressure
- Power:
- Solenoid
- Media:
- Water
- Port Size:
- 1/4''
- Structure:
- Ball
- Certificate:
- CQC FDA ROHS
- Body material:
- POM
- Voltage:
- 24VDC
- Working Temperature:
- -25~55 degree
- Valve type:
- 2 way normal close
- Standard or Nonstandard:
- Standard
Packaging & Delivery
- Selling Units:
- Multiple of
- Volume per batch:
- 1000 cm3
- Gross weight per batch:
- 3.0 kg
- Package Type:
- 24 pcs in one paper box and then put into master carton
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 240 >240 Est. Time(days) 20 To be negotiated
If you have enough quantity, we can customize the valve that meets your requirements. Our company has independent plant, injection molding workshop and advanced experimental equipment.We have more than 60 senior engineers and implement 5S management in all our workshops.Please click to contact us
| Principle | Straight type,Pilot type |
| Rating voltage | 12VDC,24VDC,110VAC/50HZ,200-240VAC/50HZ |
| Type | Normal close |
| Wastewater flow | 300±30ml/Min.(Based on no voltage input andnydraulic pressure 0.5Mpa)(Customizable) |
| Medium | Liquid water,Underground water |
| Pressure range | 0.02-0.8Mpa(0.2-8bar) |
| Ambient Temp. | -25-55℃ |
| Max. medium Temp. | 90℃ |
| Iusulation class | Class "B"(130℃)/"F"(155℃)/"H"(180℃) |
| Duty cycle | 100% at 25℃(for medium Temp);Intermittent operation at 90℃(for medium Temp.) |
| RoHs/Sanitation grade | Comply with RoHs.According to FDA&drinking water quality for the material of touching the medium |
| Port size/amounting | G 1/4 solenoid connector |
| Installation type | Use screw to fix the 4 holes on the top panel |
| Other | Customizable |
Click to find more similar valves that meet your needs.
Our quality policy is:"Make progress by Technology,Create Brand by Quality".All our products are 100% strictly inspected before being shipped.You have seen our successful past and we are striving to achieve what you expect.Let us go hand in hand and make sincere cooperation for a glorious future.
Shanghai Yongxing Electronic Switch CO.,Ltd,founded in 1985.We provide: button switches,ship type switches,seesaw switches,connecting terminals,micro-switches,refrigeraror door switches,small-size toggle witches,indicator lights,fuse holders,junction boxes and buzzers and there are more than 4,000 kinds of derived productions.The productions are widely applied to various fields such as electronics,electrical appliance and instruments,communication,audio and video,household appliances and medical equipment.Furthermore,all the production processes are implemented in our own company,which guarantees product quality and product cost.
