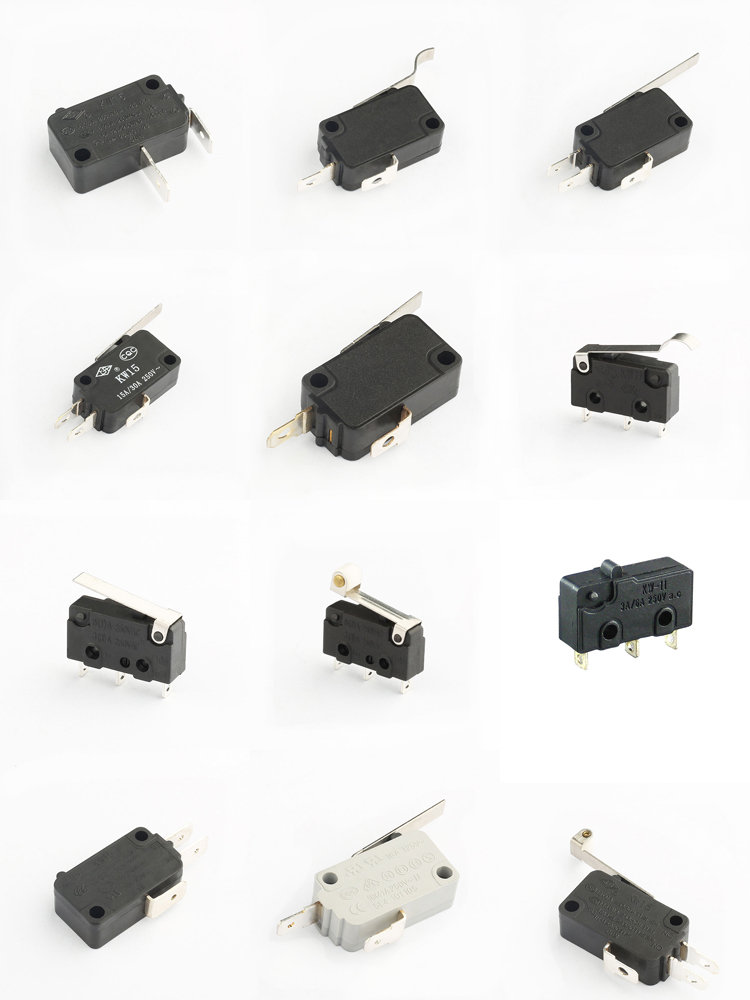

Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Shangkai(SK)
- Model Number:
- KW15-11A-OAA-BBA
- Max. Current:
- 16a
- Max. Voltage:
- 250v
- Operating Temperature:
- -25℃~+125℃
- Protection Level:
- IP40
- Certification:
- CQC CE ENEC
- Color:
- Black
- Electrical Life:
- 50,000 cycles
- Function:
- Spst Normal Open
- Current:
- 3A~16A
- ContactResistance:
- ≤50mΩ
- Insulation Resistance:
- ≥100mΩ
- dielectronic strength:
- 1,500V
- operating temperature:
- -25℃~+125℃
- IP:
- IP40 , IP65
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 150 pcs in one pvc box and then put into master carton
- Port
- Shanghai
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 20 >20 Est. Time(days) 25 To be negotiated
