- Place of Origin:
- Shanghai, China
- Brand Name:
- Yongxing
- Model Number:
- KD2
- Protection Level:
- IP40
- Max. Current:
- 3A
- Max. Voltage:
- 250V AC
- Product name:
- illuminated push button switch elevator push button panel
- OE NO.:
- Standard
- Size:
- 17mm*17mm
- max.rating current:
- 3A
- max.rating voltage:
- 250V
- Contact Resistance:
- ≤50mΩ
- Insulation Resistance:
- ≥100MΩ
- dielectrice resistance:
- 1500V
- Operating temperature:
- -25℃~+55℃
- IP code:
- IP40
- Supply Ability:
- 1000000 Piece/Pieces per Month
- Packaging Details
- 100pcs in a plastic box, then in carton box
- Port
- shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 30 >30 Est. Time(days) 25 To be negotiated

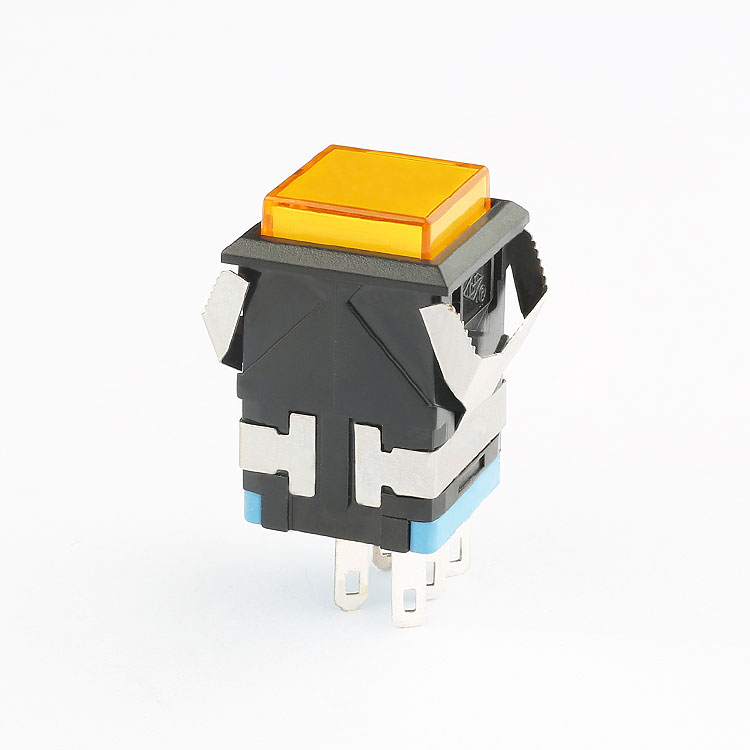

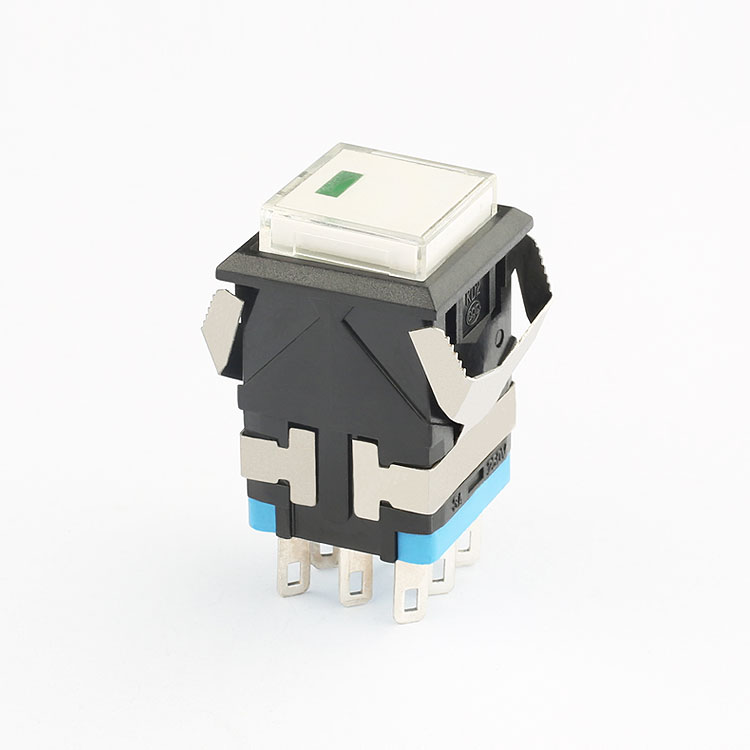

china factory directly push button start illuminated push button switch elevator push button panel
| Max. Rating Current& Voltage | 3A 250V AC Push Button Switch |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ Square Push Button Light Switch |
Electronic Life (cycles) | 10000 |
| Mechanical Life (cycles) | 50000 |
| Operation temperature | -25℃~55℃ 220v Selector Switch |
| Dielectric Stength | 1500V |
| Certification | CQC CE |
NOTE
1.The shell main color is black and white
2.With light switches and other main types of AD-DC universal Led products, the coltage of products for 2V only DCproducts, the voltage of point Led products only can do the 2V. If you want the high-voltage, can circuit in series wth an external resistor divider. Surface lighing more than 6V products (including 6V) more generic products for the AC and DC. If single voltage types require special instructions.
3.The special voltage current and color needs to be customized.
