Home > Products > china factory directly selling lock electrical switch push button switch

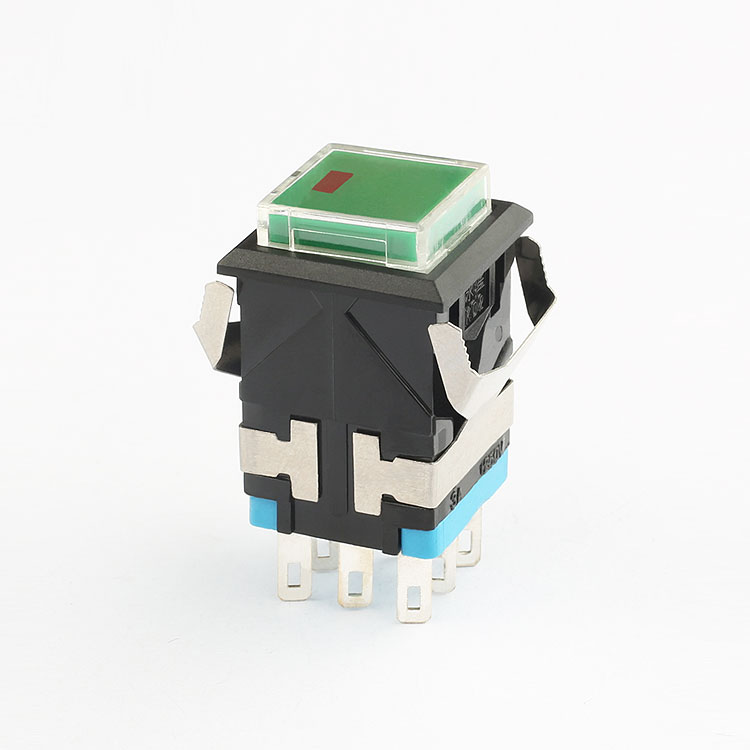

china factory directly selling lock electrical switch push button switch
Click on the image to view the original image
Product: views:2china factory directly selling lock electrical switch push button switch
Branch: Yonghai
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 20:37
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Yonghai
Model Number:
KD2
Protection Level:
IP40
Max. Current:
3A
Max. Voltage:
250V AC
Product name:
Shanghai Yongxing KD2
OE NO.:
Standard
Size:
17mm*17mm
Certification:
CQC, CE
Voltage of led:
2V,6V,12V,24V,110V,220V
Operating temperature:
-25℃~+55℃(-13℉~ 131℉)
Dielectric Strength:
1500V
Contact Resistance:
50m Max
Insulation Resistance:
100M Min

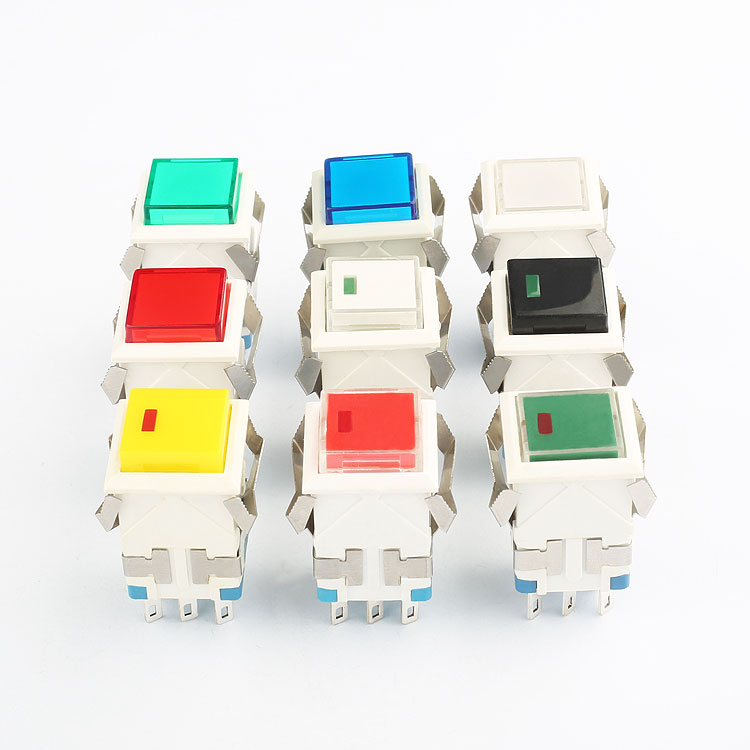

Button Color:
red,green,yellow,white,blue,orange

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
40X40X40 cm
Gross weight per batch:
0.912 kg
Package Type:
100pcs in a plastic box, then in carton box
Picture Example:
package-img
Lead Time:
Quantity(Piece)1 - 2000>2000
Est. Time(days)30To be negotiated
Video Description
Product Description

china factory directly push button lock metal push button switch push button electrical switch

If you have enough quantity, we can customize the push button switch to meet your requirements. Our company has independent plant, injection workshop and advanced experimental equipment. It has more than 60 senior engineers, and all workshops have reached 5S and 5m management standards.


max.rating cnrrent
3A
dielectrice resistance
1500V
max.rating voltage
250V
electronic life
10000cycles
contact resistance
≦50mΩ
mechanical life
50000cycles
insulation resistance
≧100mΩ
operating temperature
-25℃+55℃
IP code
IP40
lamp voltage
2V,6V,12V,24V,110V,220V
certificates
CQC,CE
Housing color
black(selective)
action&illuminator
latching with illuminator
cap color
green(selective)
type
luminous point
lamp color
red(selective)
More products

momentary push button switch push start button push button start
Min. Order: 300 Pieces
FOB Price: US $1 - 1.5 / Piece

push button switch push button transparent push button
Min. Order: 300 Pieces
FOB Price: US $1 - 1.5 / Piece

push button lock illuminated push button switch push button starter sw...
Min. Order: 300 Pieces
FOB Price: US $1 - 2 / Piece

Double Pole Low Voltage Limit Plastic Automotive Push BUtton Switch
Min. Order: 100 Pieces
FOB Price: US $0.7 - 0.98 / Piece r: 500 Pieces

KD2 5 Pin Single Pole Orange Automatic Selector Push Button Light Swit...
Min. Order: 100 Pieces
FOB Price: US $0.68 - 0.85 / Piece

8Pin Blue Electrical Safety Power Adapter On off Push Button Switch
Min. Order: 200 Pieces
FOB Price: US $0.69 - 0.95 / Piece

Company Information

Our Company was founded in 1985, The company has a history of 30 years.which is famous switch manufacturer in China, and has 650 employees with 60 engineer. 20 workshops, 80pcs injection molding machines. Perfect quality control.The company mainly produces push button switch,rocker switch,rotary switch,micro switch,indicatro light.

Visitors&Exhibitions
Cooperative Partners
Certifications


It has passed the certification of ISO9001:2008 Quality Management System and many of its products have passed the quality certification of authoritative certification bodies such as CQC,UL and ENEC,CE,ROHS.

Packing & Delivery


1.Our packing is protected by cardboard boxes, and two types of packing are used inside the blister box and the bag.
2.We supply sample service and the sample can be sent to u by express very fast, please contact us.
3.Our bulk goods are usually shipped by sea, and will arrive in 30days, if u set a small order, we can ship them by express or air.

4.We work with several logistics companies, such as UPS, TNT, DHL, FedEX, etc. to meet the needs of customers in various regions.
