Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Yongxing
- Model Number:

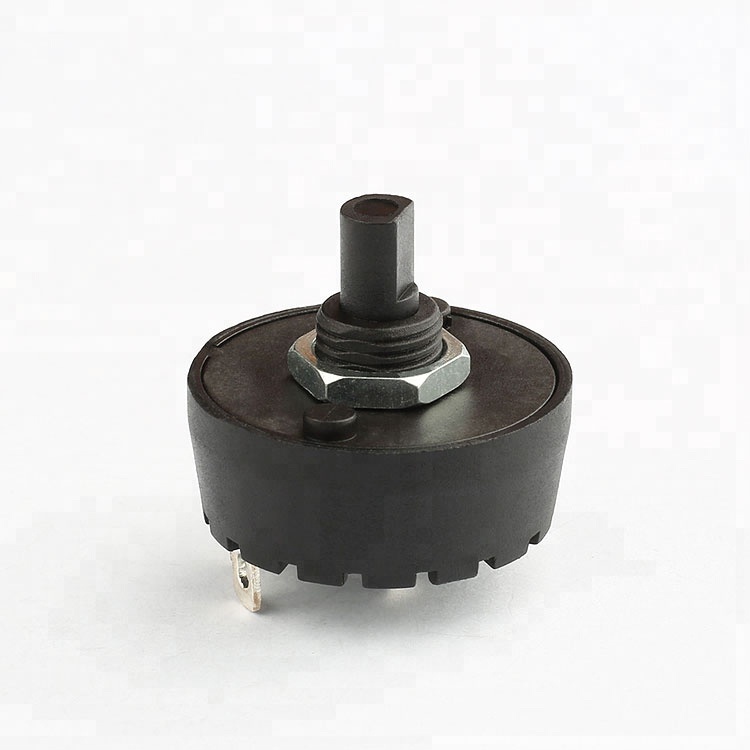

- RS1-12A-AEH-BBA
- Max. Current:
- 6A
- Max. Voltage:
- 250V AC
- Mechanical Life:
- 50000
- Color:
- Black
- Certification:
- CQC,ENEC17
- Position:
- 2~8
- Type:
- 2 Pole
- Operating temperature:
- T125
- ContactResistance:
- ≤50mΩ
- Insulation resistance:
- ≥100MΩ
- dielectricResistance:
- 1500V
- Electronic life:
- 50000cycles
- Application:
- Household Electric Appliances
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 40X40X40 cm
- Gross weight per batch:
- 6.0 kg
- Package Type:
- 100 pcs in one OPP box and then put into master carton
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 20 To be negotiated
