- Place of Origin:
- Shanghai, China
- Brand Name:
- Shanghai Yongxing
- Model Number:
- YE040-500/YE040-508
- Number of Contacts:
- 2-24
- Conductor Size:
- 11 - 20 AWG
- Type:
- Plug-in
- Color:
- Green
- Certificate:
- CQC
- Pitch:
- 5.0mm/5.08mm
- Rated voltage:
- 300V
- Rated Current:
- 16A
- Housing:
- PA66.UL94V-0
- Poles:
- 2-24ploles
- Operation temperature:
- -40℃~+150℃
- Short-time temperature:
- +250°C for 5 sec
- Contact resistance:
- 20mΩ screw clamp wire connectors
- Supply Ability:
- 1000000 Piece/Pieces per Month
- Packaging Details
- 200 pcs in one paper box and then put in master carton
- Port
- Shanghai port
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 25 To be negotiated

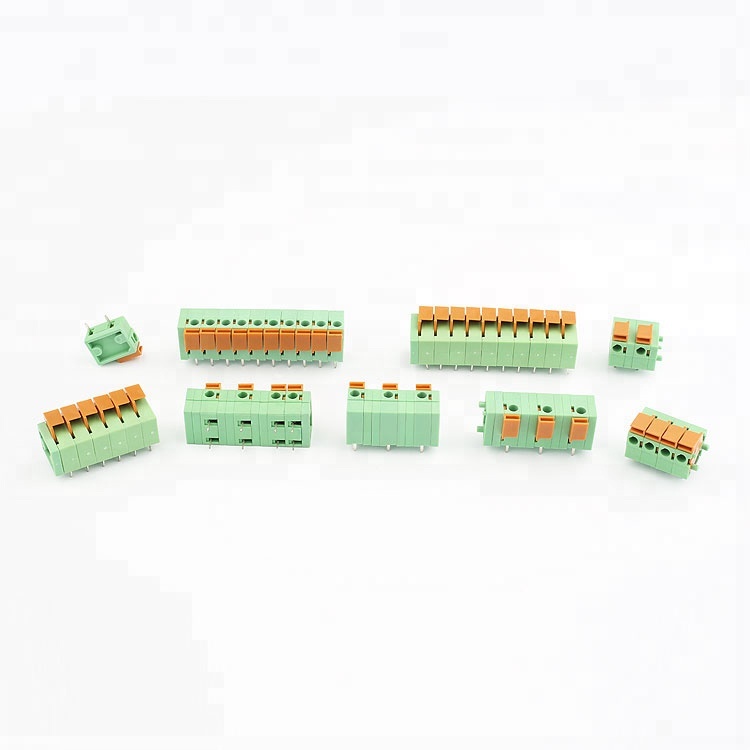

Yongxing factory selling directly YE pluggable terminal block green connector
If you have enough quantity, we can customize the switch that meets your requirements. Our company has independent plant, injection molding workshop and advanced experimental equipment.We have more than 60 senior engineers and implement 5S management in all our workshops.
Care clamp:Brass, Ni Plated | Wire range:26-14AWG 1.5mm² |
Operation Temperature:-40℃~+150℃ | Rated voltage/current:300V/16A |
Withstanding voltage:AC2000V/1Min | Insulation resistance:>5000MΩ DC500V |
Contact:Brass, Tin Plated | Strip length:6-7mm |
Contact resistance:20mΩ |
Our quality policy is:"Make progress by Technology,Create Brand by Quality".All our products are 100% strictly inspected before being shipped.You have seen our successful past and we are striving to achieve what you expect.Let us go hand in hand and make sincere cooperation for a glorious future.
Shanghai Yongxing Electronic Switch CO.,Ltd,founded in 1985.We provide: button switches,ship type switches,seesaw switches,connecting terminals,micro-switches,refrigeraror door switches,small-size toggle witches,indicator lights,fuse holders,junction boxes and buzzers and there are more than 4,000 kinds of derived productions.The productions are widely applied to various fields such as electronics,electrical appliance and instruments,communication,audio and video,household appliances and medical equipment.Furthermore,all the production processes are implemented in our own company,which guarantees product quality and product cost.
