Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Shanghai Yongxing
- Model Number:
- KCD2-22N-CA1A-B-G-01
- Max. Current:
- 16A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 100000
- Color:
- Black/green
- Certificate:
- CQC,CE,ULCCB,ENEC17
- Function:
- DPDT
- Pins:
- 6
- Material:
- PA66
- Product type:
- Illuminated rocker switch
- Name:

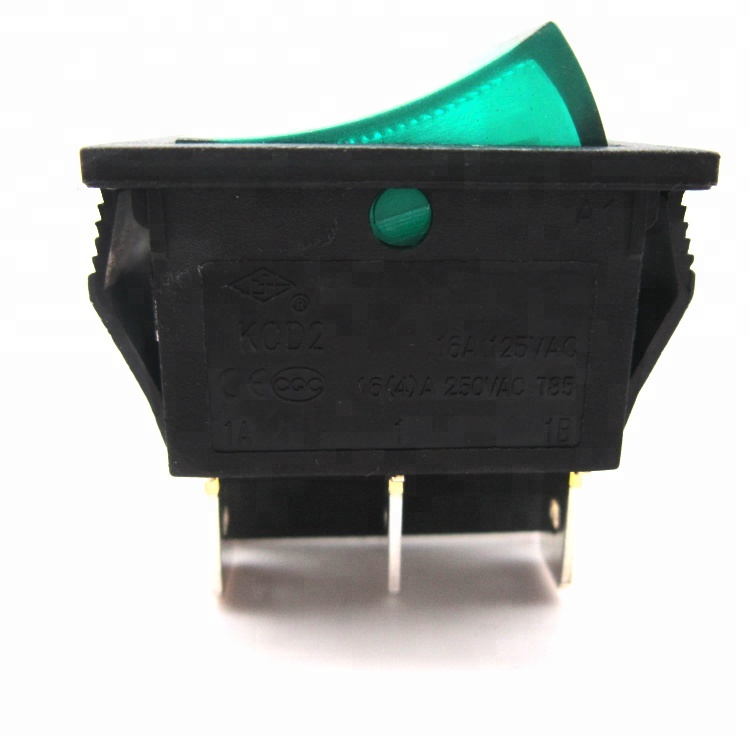

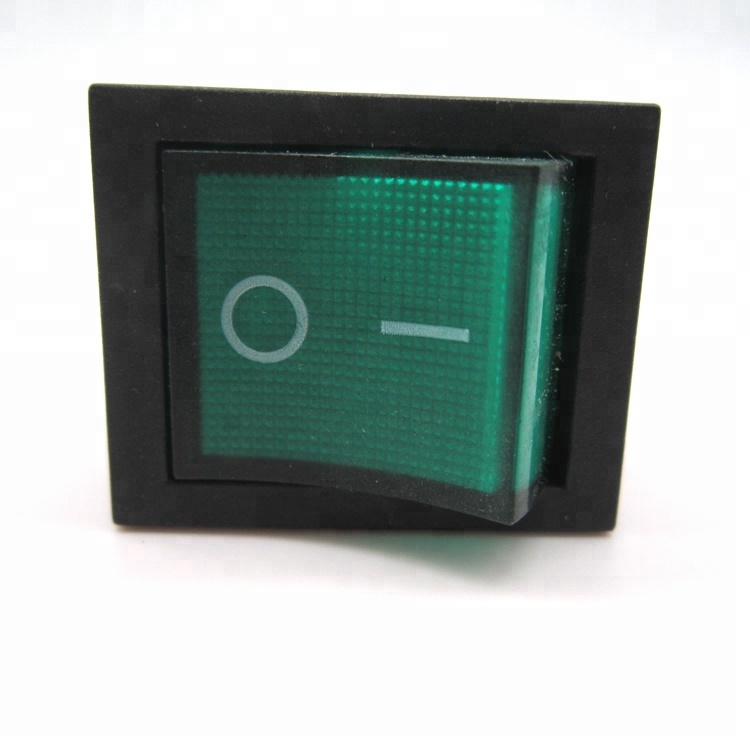

- KCD2 illuminated dpdt 6 pin rocker switch 16a 250v
- Dielectric Strength:
- 1500V AC 1min
- Contact Resistance:
- ≤50mΩ
- Insulation Resistance:
- 1,000mΩ
Supply Ability
- Supply Ability:
- 500000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 100 pcs in one poly bag and then put in master carton
- Port
- Shanghai port
- Lead Time:
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 20 To be negotiated
