- Place of Origin:
- Shanghai, China
- Brand Name:
- Shanghai Yongxing
- Model Number:
- FD16-111L12D-G
- Protection Level:
- IP40
- Max. Current:
- 1A
- Max. Voltage:
- 250VAC
- Color:
- Black/green
- Operation type:
- Self-locking
- Certificate:
- CQC,CE
- Function:
- Single pole
- Operating temperature:
- -25 ℃~+55℃
- ContactResistance:
- ≤50mΩ
- Dielectric Stength:
- 1,500V
- Rating current&voltage:
- 1A/250VAC
- Electronic life(cycles):
- Moment:10,000 Alternate:5,000
- Mechanical life(cycles):
- Moment:50,000 Alternate:10,000
- Supply Ability:
- 1000000 Piece/Pieces per Month
- Packaging Details
- 25 pcs in one paper box and then put in master carton
- Port
- Shanghai port
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 3000 >3000 Est. Time(days) 25 To be negotiated

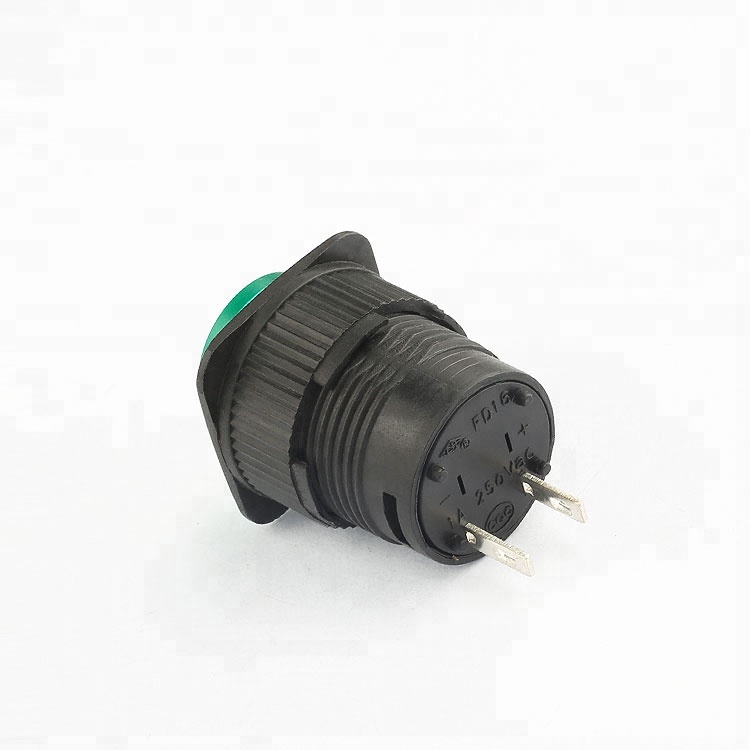

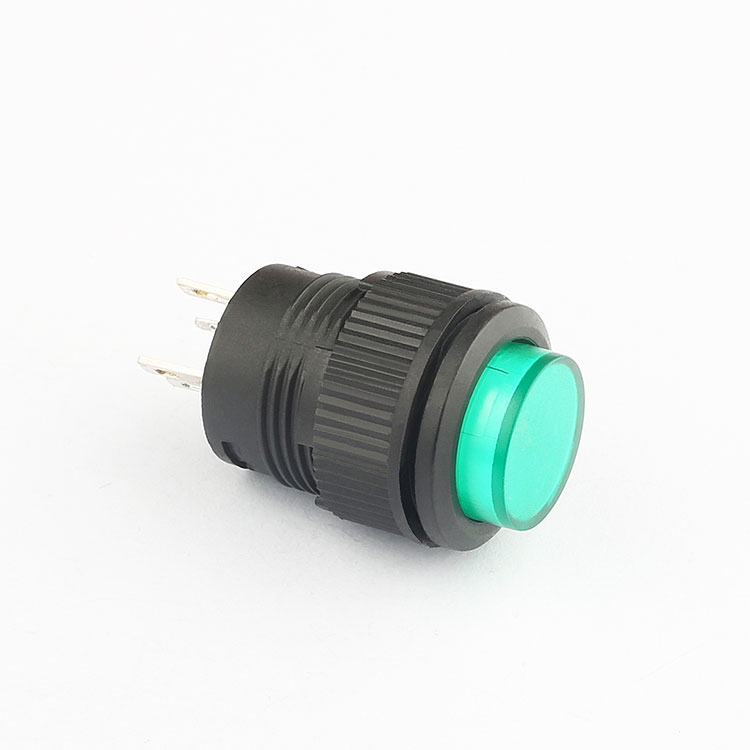

Yongxing FD16 2 pin 4 pin latching 16mm push button switch with led
Fd16 push button switching voltage can be customized according to customer requirements. If necessary, please contact us.
Contact resistance | ≤50mΩ |
Insulation resistance | ≥100MΩ |
Dielectric strength | 1500v |
Electronic life (cycles) | Moment:10000 Alternate:5000 |
Mechanical life (cycles) | Moment:50000 Alternate:100000 |
Operating temperature | 25T55 |
IP code | IP40 |
Max.Rating Current&Voltage | 1A/250V AC |
Certification | CQC, CE |
