Overview
Quick Details
- Brand Name:
- SK(ShangKai)
- Model Number:
- KCD
- Max. Current:
- 16A
- Max. Voltage:
- 250V AC
- Mechanical Life:
- 100,000
- name:

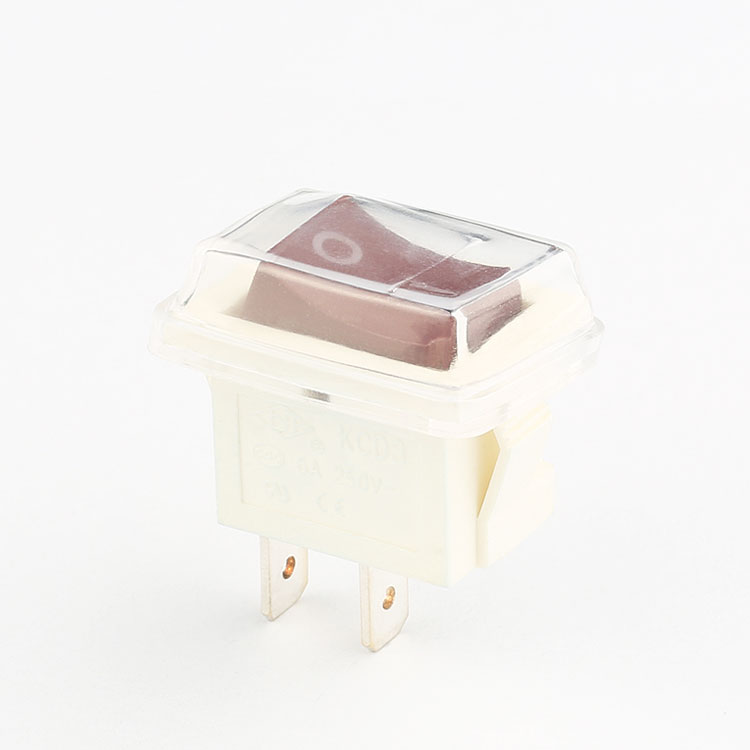

- 16a 250v kcd1 1e4 t125 waterproof cover rocker switch
- Certifiation:
- CQC, CE, RoHS, UL, CB, ROHS
- Color:
- red green yellow white blue orange black gray coffee
- Contact Resistance:
- ≤50mΩ
- Insulation Resistance:
- ≥1000mΩ
- Operating temperature:
- t55, t85, t125
- IP Rating:
- IP65
- Electrical Life:
- 10,000 cycles
- Material:
- PA66
- Dielectric Strength:
- 1500V AC , 1min
Supply Ability
- Supply Ability:
- 700000 Piece/Pieces per Month 16a 250v kcd1 1e4 t125 rocker switch waterproof cover
Packaging & Delivery
- Packaging Details
- 100 pieces in one box,2000 pieces in one Standard export carton
- Port
- Shanghai
- Lead Time:
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 20 To be negotiated
