Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Yongxing
- Model Number:
- KW11
- Max. Current:
- 3A/5A
- Max. Voltage:
- 250VAC
- Operating Temperature:
- -25℃~+125℃
- Protection Level:
- IP40/IP65
- Color:
- Black
- name:

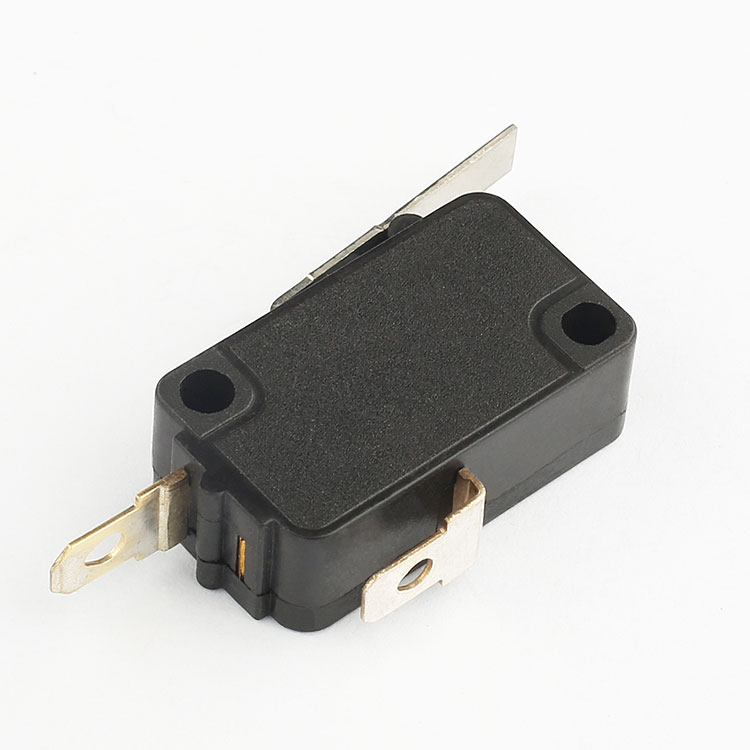

- Momentary Mouse Micro Switch
- Certification:
- CQC,ENEC17
- Electrical life:
- 50,000
- Function:
- SPST
- Contact Resistance:
- ≤50mΩ
- Insulation Resistance:
- ≥100MΩ
- Dielectric Strength:
- 1,500V
- Operating temperature:
- -25℃~+125℃
- Rating current&voltage:
- 5A/250VAC
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 40X40X40 cm
- Gross weight per batch:
- 0.43 kg
- Package Type:
- 200 pcs in one pvc box and then put into master carton
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 2000 >2000 Est. Time(days) 20 To be negotiated
