- Place of Origin:
- Shanghai, China
- Brand Name:
- Shanghai Yongxing
- Model Number:
- KD2-A2
- Protection Level:
- IP40
- Max. Current:
- 3A
- Max. Voltage:
- 250V
- Name:
- Shanghai Yongxing KD2
- Color:
- White/green
- Certificate:
- CQC,CE
- Operation type:
- Self-locking
- Function:
- Double pole
- LED color:
- Red.yellow.green.white.blue
- Contact Resistance:
- 50m Max
- Insulation Resistance:
- 100M Min
- Dielectric Strength:
- 1500V
- Max Rating Current & Voltage:
- 3A 250V AC
- Supply Ability:
- 1000000 Piece/Pieces per Month
- Packaging Details
- 25 pcs in one PVC box
- Port
- Shanghai port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 30 To be negotiated

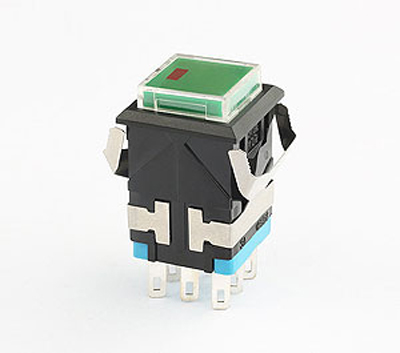

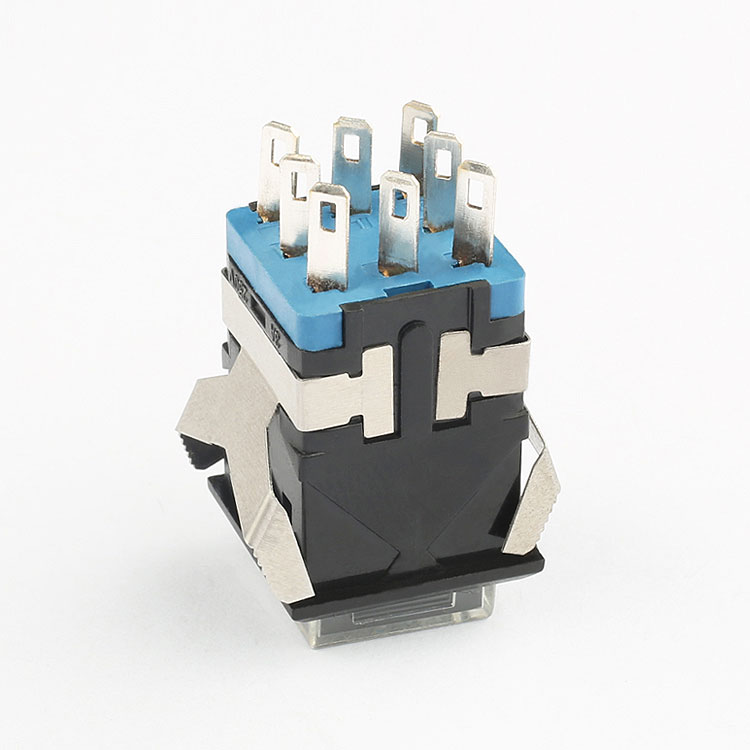

3a 250v 8 pin 2 pole self-locking illuminated square led push button switch
If you have enough quantity, we can customize the switch that meets your requirements. Our company has independent plant, injection molding workshop and advanced experimental equipment.We have more than 60 senior engineers and implement 5S management in all our workshops.
| Contact Resistance:≤50mΩ | Insulation Resistance:≥100mΩ | Dielectric Strength:1,500V |
| Electronic Life:10,000 cycles | Operating temperature:-25℃~+55℃ | Rating current:3A |
