Overview
Quick Details
- Brand Name:
- SK(Shangkai)
- Model Number:
- KCD3-11-F
- Max. Current:
- 6A10A
- Max. Voltage:
- 250V AC
- Mechanical Life:
- 100,000 Cycles
- name:

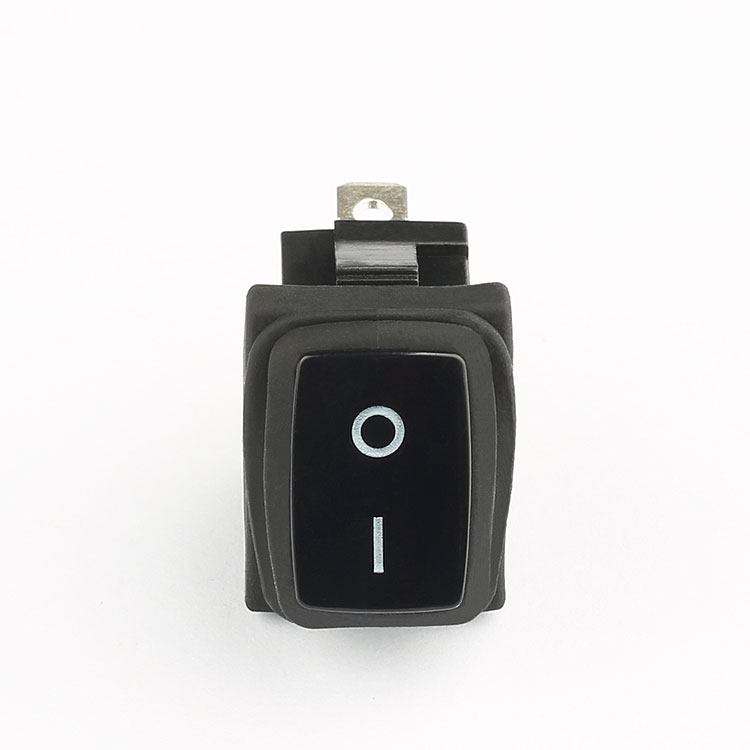

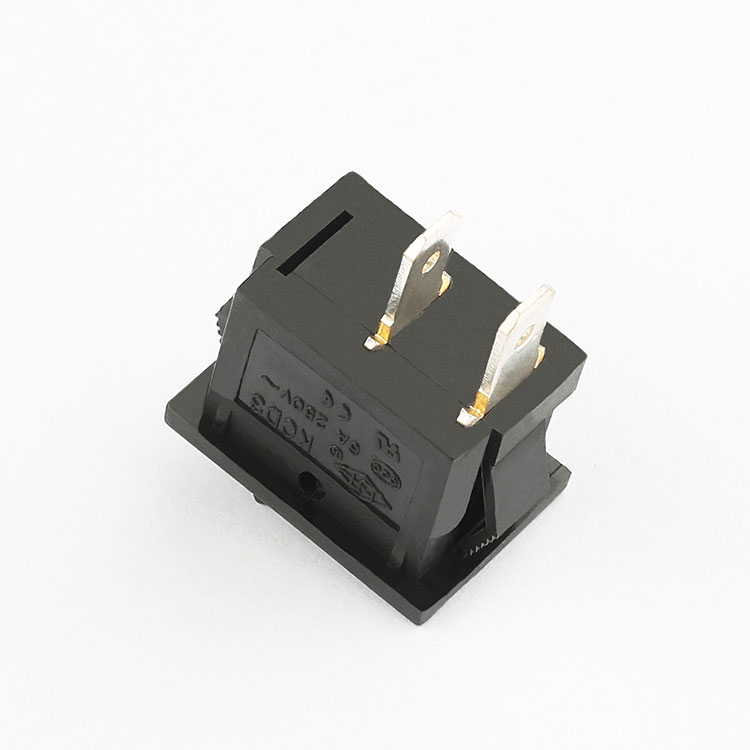

- 6a 10a 250v waterproof 2 pin kcd3 t105 rocker switch
- Application:
- waterproof rocker switch
- Description:
- spst
- pins:
- 2 pin
- Color:
- Black
- Contact Resistance:
- ≤50m Ω
- Insulation Resistance:
- ≥1,000MΩ rocker switch
- Electronic Life(cycles):
- 10000 cycles
- The Crust Material:
- Plastic waterproof rocker switch
- Certification:
- CQC , CE , RoHS , ENEC , UL , CB
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 2X1X1 cm
- Single gross weight:
- 0.034 kg
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 20 To be negotiated
