Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Yongxing
- Model Number:
- YXGQ22B
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250V
- Name:

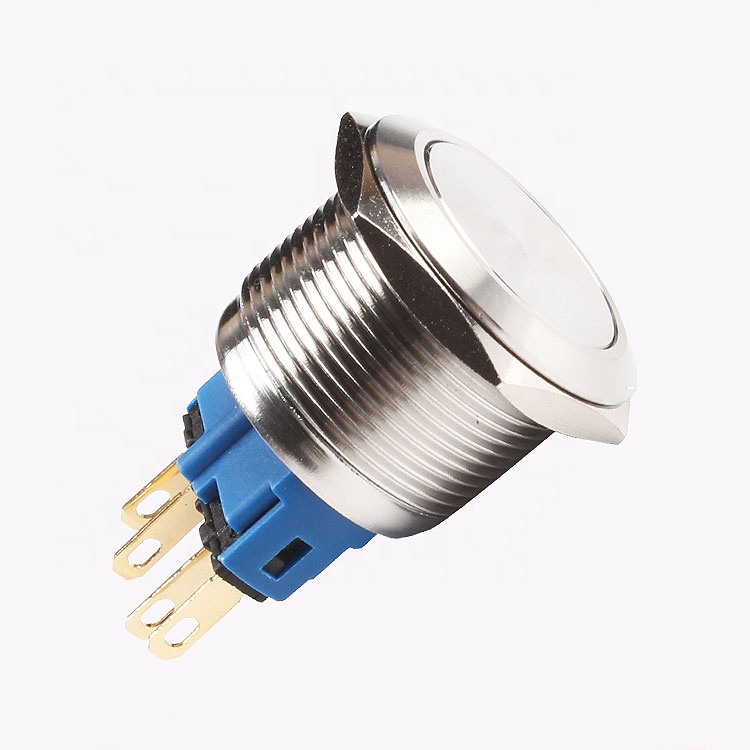

- Shanghai Yongxing Metal switch
- The Front Shape:
- Domed
- Terminal Type:
- X Two Terminal breakpoints slow moving contact
- Switch Specifications:
- 2A/36VDC
- Contact Resistance:
- ≤50MΩ
- Insulation Resistance:
- ≥1000MΩ
- Dielectric Strength:
- 2000VAC
- Mechanical Life:
- >1,000,000 times
- Electrical Life:
- >200,000 times
- Operating Temperature:
- -20℃~+55℃
Supply Ability
- Supply Ability:
- 10000000 Piece/Pieces per Week of 4pin 22mm 16a 250v rectangular push button switches
Packaging & Delivery
- Packaging Details
- 4pin 22mm 16a 250v rectangular push button switchesof 50Pieces in one box,1000pieces in one Standard export carton ,metal push button switch.
- Port
- shanghai
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 3000 >3000 Est. Time(days) 30 To be negotiated
