Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Shangkai(SK)
- Model Number:
- YB
- Number of Contacts:
- 3
- Conductor Size:
- 28-14
- Type:
- PCB
- name:

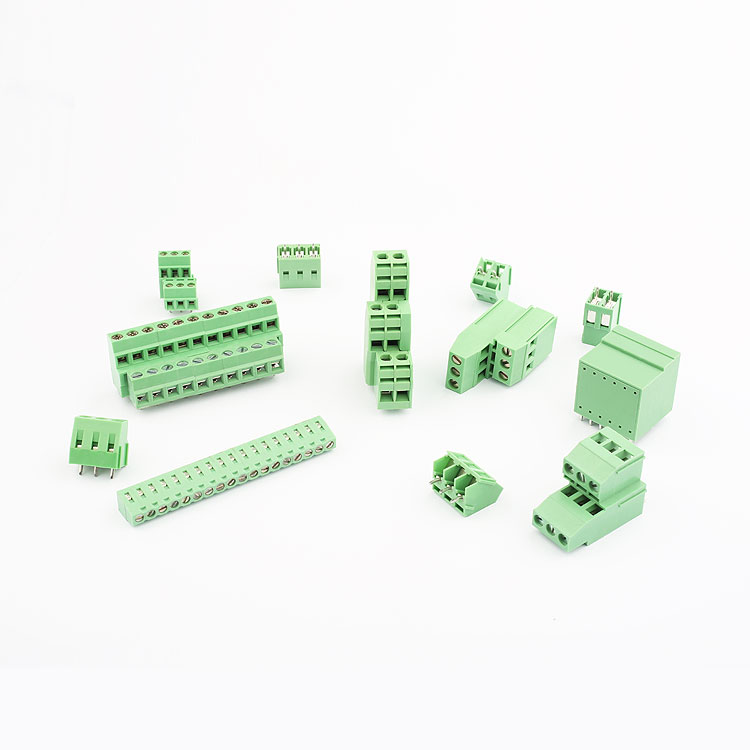

- Hot sale 5.00mmquick pluggable connect terminal block
- color:
- Green
- current:
- 10A 16A 30A
- voltage:
- 300V plug in terminal block 3.81mm
- pole:
- 3
- Operation temperature:
- -40℃~+150℃
- Housing:
- PA66,UL94V-0
- Strip length:
- 6-7mm
- insulation resistance:
- >5000MΩ DC500V
- pitch:
- 3.81mm
Supply Ability
- Supply Ability:
- 10000000 Piece/Pieces per Month offactory supply3.81mm 3 pin square plug in terminal block
Packaging & Delivery
- Packaging Details
- 100Pieces in one box,1000pieces in one Standard export carton
- Port
- Shanghai
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 25 To be negotiated
