Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- SK(Shangkai)
- Model Number:
- KCD2 rocker switch
- Max. Current:
- 16A
- Max. Voltage:
- 250V AC
- Mechanical Life:
- 100,000 Cycles
- name:

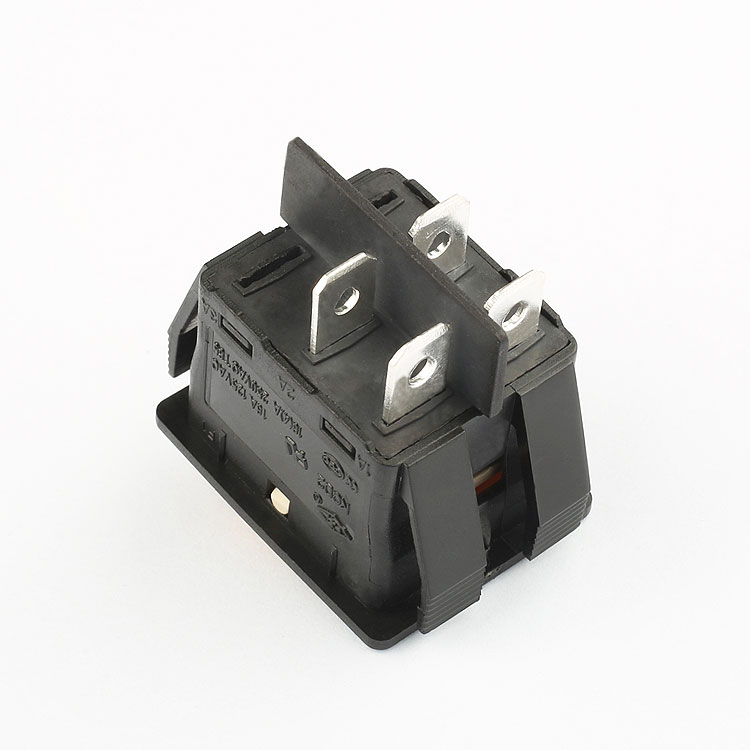

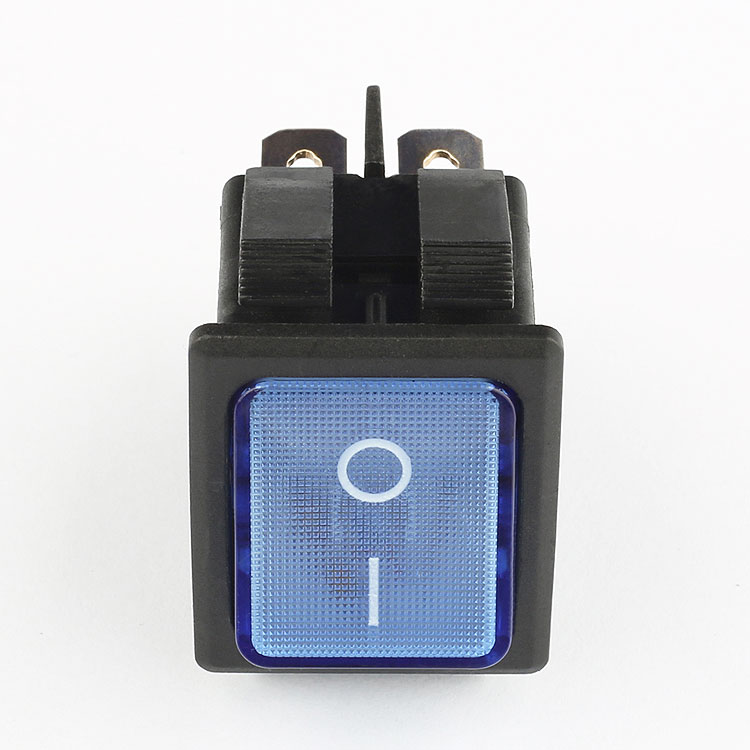

- 16a 250v 4 pin illuminated dpdt rocker light switch
- Description:
- DP-DT
- pins:
- 4 pin
- Color:
- Black on off on rocker switch
- Contact Resistance:
- ≤50m Ω
- Insulation Resistance:
- ≥1,000MΩ rocker switch
- Electronic Life(cycles):
- 10000 cycles
- The Crust Material:
- Plastic waterproof rocker switch
- Certification:
- CQC , CE , RoHS , ENEC , UL , CB
- IP Rating:
- IP44
Supply Ability
- Supply Ability:
- 10000000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 16a 250v 4 pin illuminated dpdt rocker light switch
100 pieces in one box,1000 pieces in one standard carton , cit rocker switch.
- Port
- Shanghai
- Lead Time:
Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 20 To be negotiated
