Home > Products > 24 volt mini plastic ip68 submersible water 12 volt solenoid valve

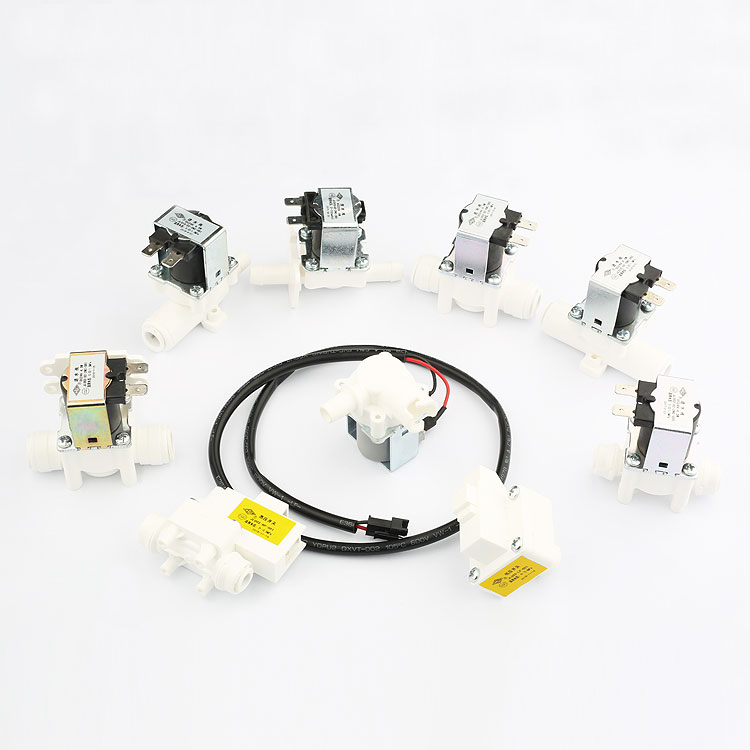

24 volt mini plastic ip68 submersible water 12 volt solenoid valve
Click on the image to view the original image
Product: views:124 volt mini plastic ip68 submersible water 12 volt solenoid valve
Branch: Shangkai(SK)
Type: Normal close
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 20:39
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Shangkai(SK)
Model Number:
JL000 3 volt solenoid valve
Application:
General
Material:
Plastic
Temperature of Media:
Medium Temperature
Pressure:
Medium Pressure
Power:
Solenoid
Media:
Water
Port Size:
1/4 6mm
Structure:
Diaphragm
Standard or Nonstandard:
Standard
Product name:
3 volt mini plastic ip68 submersible water 12 volt solenoid valve
Certification:
CQC,RoHS
Principle:
Straight type , Pilot type
Rating voltage:
12VDC,24VDC,110VAC/50Hz,200-240VAC/50Hz
Type:
Normal close
Medium:
Liquid water, Underground water, juice
Pressure range:
0.02-0.8 MPa(0.2-8 bar)/0.02-1.0 MPa(0.2-10 bar) (Customizable)
Max. medium Temp:
90℃
lnsulation class:
Class "B"(130℃) / "F" (155℃ )/"H"(180℃)
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Week of 3 volt ip68 submersible water 12 volt solenoid valve
Packaging & Delivery
Packaging Details
3 volt mini plastic ip68 submersible water 12 volt solenoid valve of
128 pieces in one Standard export carton , solenoid valve.
Port
Shanghai
Lead Time:
Quantity(Pieces)1 - 2000 >2000
Est. Time(days)15To be negotiated

3 volt mini plastic ip68 submersible water 12 volt solenoid valve

Product Description



 Principle Straight type,Pilot type
 Rating voltage 12VDC,24VDC,110VAC/50H2,200-240VAC/50HZ
 Type Normal close
 Medium water
 Pressure range

 0.02-0.8 MPa(0.2-8 bar)/0.02-1.0 MPa(0.2-10 bar)

 (Customizable)

 Ambient Temp -25—55°C
 Max. medium Temp 90°C
 lnsulation class Class "B"(130℃) / "F" (155℃ )/"H"(180℃)
 Duty cycle

 100% at 25°C(for medium Temp.);lntermittent operation at

 90C (for medium Temp.)

 ROHS/Sanitation grade

 According with ROHSAccording with FDA & drinking water

 quality for The material of touching the medium

 Port size/amounting G1/4 solenoid connector
 Installation type Use screw to fix the 4 holes on the top panel
 Other Customizable
More types products













Company Information
Company was founded in 1985, The company has a history of 30 years.which is famous switch manufacturer in China, and has 650 employees with 60 engineer. 20 workshops, 80pcs injection molding machines. Perfect quality control.
Please view our factory and company video.



Our quality policy is:"Make progress by Technology,Create Brand by Quality".You have seen our successful past and we are striving to achieve what you expect.Let us go hand in hand and make sincere cooperation for a glorious future.



Certifications

It has passed the certification of ISO9001:2008 Quality Management System and many of its products have passed the quality certification of authoritative certification bodies such as CQC,UL and ENEC,CE,ROHS.

Packaging & Shipping

We supply sample service and the sample can be sent to u by express very fast, please contact us.



Our bulk goods are usually shipped by sea, and will arrive in 30days, if u set a small order, we can ship them by express or air.
