Overview
Quick Details
- Brand Name:
- SK(ShangKai)
- Model Number:
- KCD7-11-CF1B-B-B
- Max. Current:
- 6A
- Max. Voltage:
- 250V AC
- Mechanical Life:
- 100,000 cycles
- Products name:

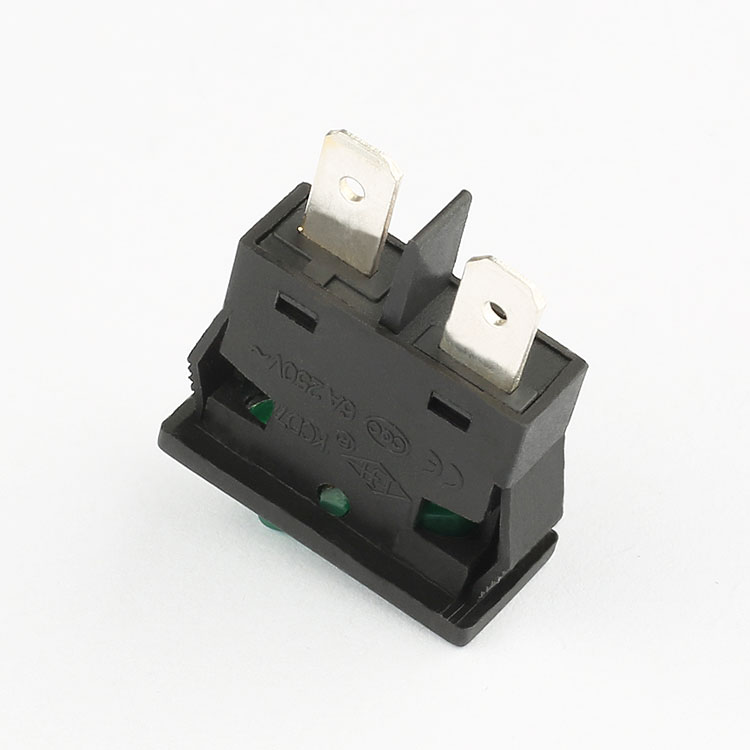

- Fighting Game Accessories Direction Tact Cooker Hood Rocker Switch
- certificate:
- CQC, CE, RoHS
- Color:
- Red, Yellow ,Green, Black, White, Blue, Gray, Orange
- Operating temperature:
- T55
- Contact resistance:
- ≤50mΩ Cooker Hood switch
- Insulation resistance:
- ≥100MΩDirection Tact Switch
- Electronic Life:
- 10000
- Dielectric Strength:
- 1500V AC 1min
- Material:
- Plastic
- Function:
- SPST
Supply Ability
- Supply Ability:
- 10000000 Piece/Pieces per Month 6a 250v 2 pin spst cqc t55 micro rocker switch
Packaging & Delivery
- Packaging Details
- 6a 250v 2 pin spst cqc t55 micro rocker switch
50Pieces in one box,1000pieces in one Standard export carton,
- Port
- Shanghai
- Lead Time:
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 20 To be negotiated
