Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- shangkai(SK)
- Model Number:

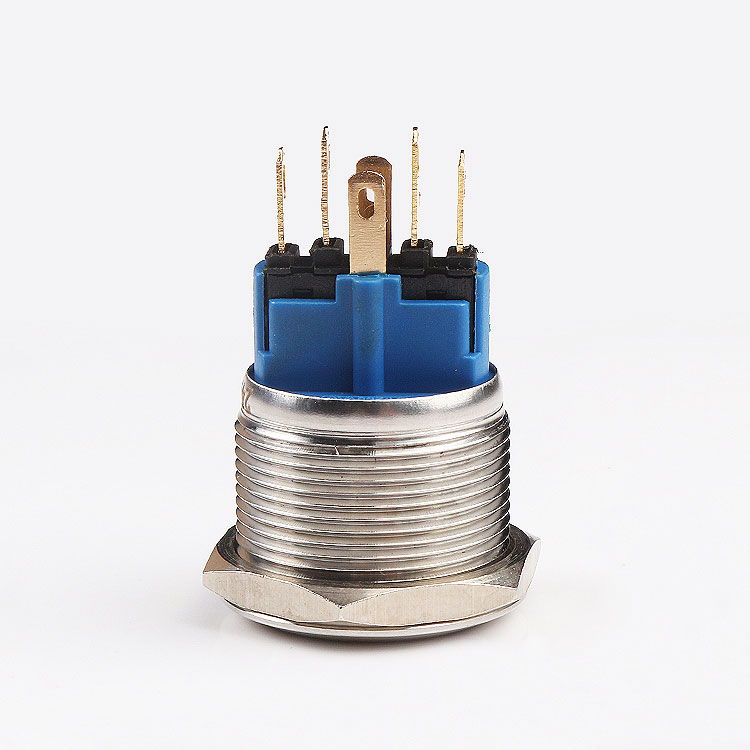

- YXGQ22B-10J of ring indicator 6 pin metal push button switch
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250V
- Name:
- mechanical ring indicator 6 pin metal push button switch
- The Front Shape:
- Domed
- Terminal Type:
- X Two Terminal breakpoints slow moving contact
- Switch Specifications:
- 2A/36VDC
- Contact Resistance:
- ≤50MΩ 6 pin push button switch
- Insulation Resistance:
- ≥1000MΩ
- Dielectric Strength:
- 2000VAC mini waterproof push button switch
- Mechanical Life:
- >1,000,000 times
- Electrical Life:
- >200,000 times
- Operating Temperature:
- -20℃~+55℃
Supply Ability
- Supply Ability:
- 10000000 Piece/Pieces per Week of mechanical ring indicator 6 pin metal push button switch
Packaging & Delivery
- Packaging Details
- manufacturer ip67 self-locking mechanical ring indicator 6 pin metal push button switch of
50Pieces in one box,1000pieces in one Standard export carton ,6 pin push button switch
- Port
- shanghai
