Home > Products > 3A 250V self-locking momentary 3 pin 5 pin 8 pin push button switch 12mm

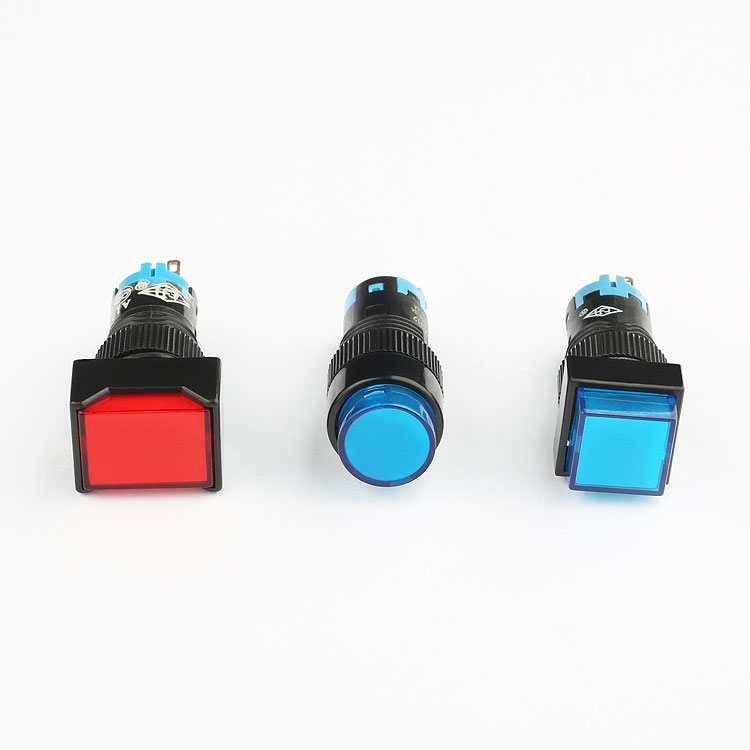

3A 250V self-locking momentary 3 pin 5 pin 8 pin push button switch 12mm
Click on the image to view the original image
Product： views：23A 250V self-locking momentary 3 pin 5 pin 8 pin push button switch 12mm
Branch： shangkai(SK)
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:39
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
shangkai(SK)
Model Number:
AD12-112
Protection Level:
IP40
Max. Current:
3A
Max. Voltage:
250V
Shape:
Square push button switch
Certificate:
CE,CQC
IP Code:
IP40
Contact Resistance:
≤50mΩ
Insulation Resistance:
≥100MΩ
Dielectric Strength:
1500V
Max.Rating Current & Voltage:
3A 250V AC
Electronic Life(cycles):
Momentary:50,000Alternate:25'000
Mechanical Life:
Momentary:200,000Alternate:50,000
Operating Temperature:
-5℃~+75℃
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1000 pieces in one standard export carton
Port
Shanghai
