Home > Products > AD12 3A 250V 3 pin 1no 1nc latching 12mm push button switch

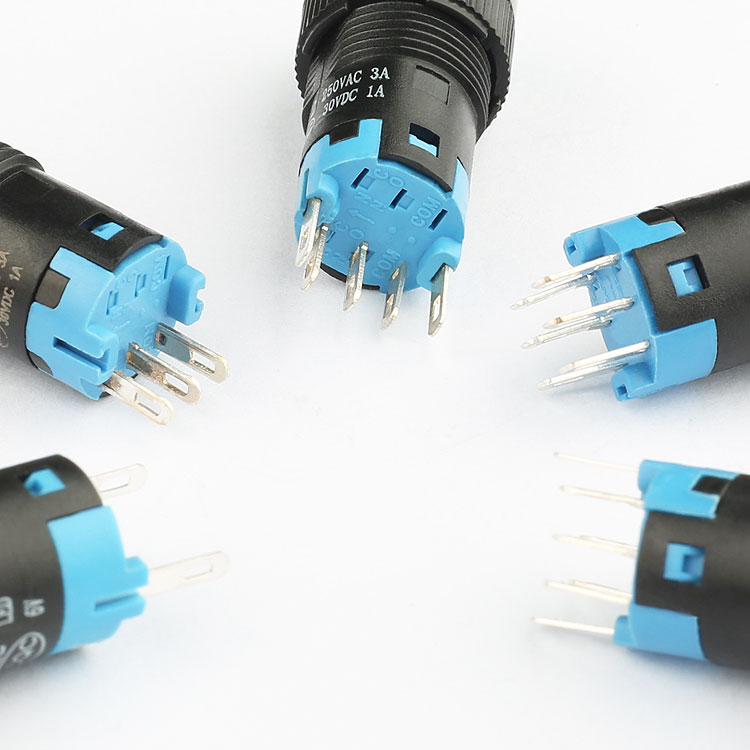

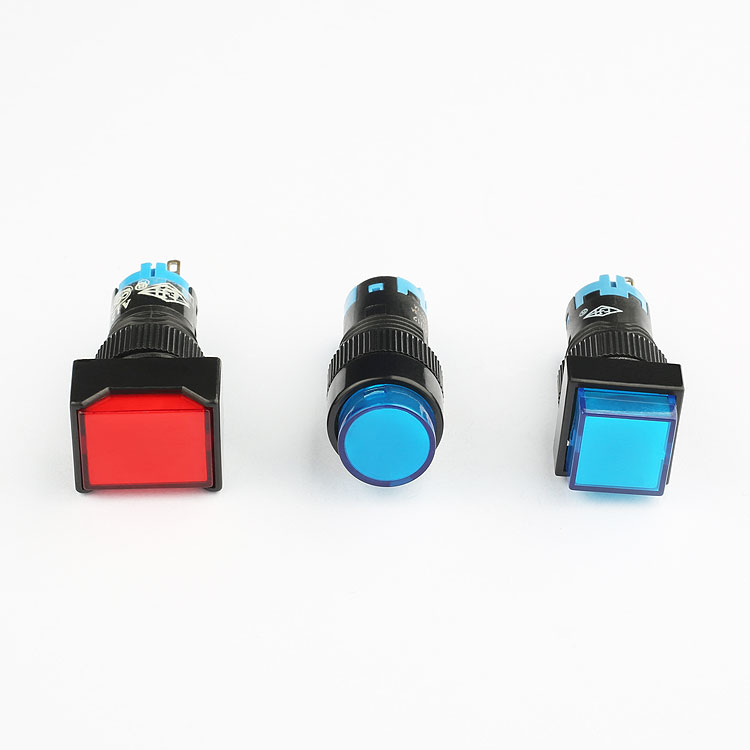

AD12 3A 250V 3 pin 1no 1nc latching 12mm push button switch
Click on the image to view the original image
Product： views：1AD12 3A 250V 3 pin 1no 1nc latching 12mm push button switch
Branch： shangkai(SK)
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:39
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
shangkai(SK)
Model Number:
AD12-112R
Protection Level:
IP40
Max. Current:
3A
Max. Voltage:
250V
Certificate:
CE,CQC,Rohs
IP Code:
IP40
Contact Resistance:
≤50mΩ
Insulation Resistance:
≥100MΩ
Dielectric Strength:
1500V
Max.Rating Current & Voltage:
3A 250V AC
Electronic Life(cycles):
25,000 cycles
Mechanical Life:
50,000 cycles
Operating Temperature:
-5℃~+75℃
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
2000 pieces in one standard export carton
Port
Shanghai
