Overview
Quick Details
- Brand Name:
- SK(shangkai)
- Model Number:
- KCD3-11N-FB1B-B-G-01
- Max. Current:
- 6A/10A
- Max. Voltage:
- 250V AC
- Mechanical Life:
- 100,000 cycles
- Name:

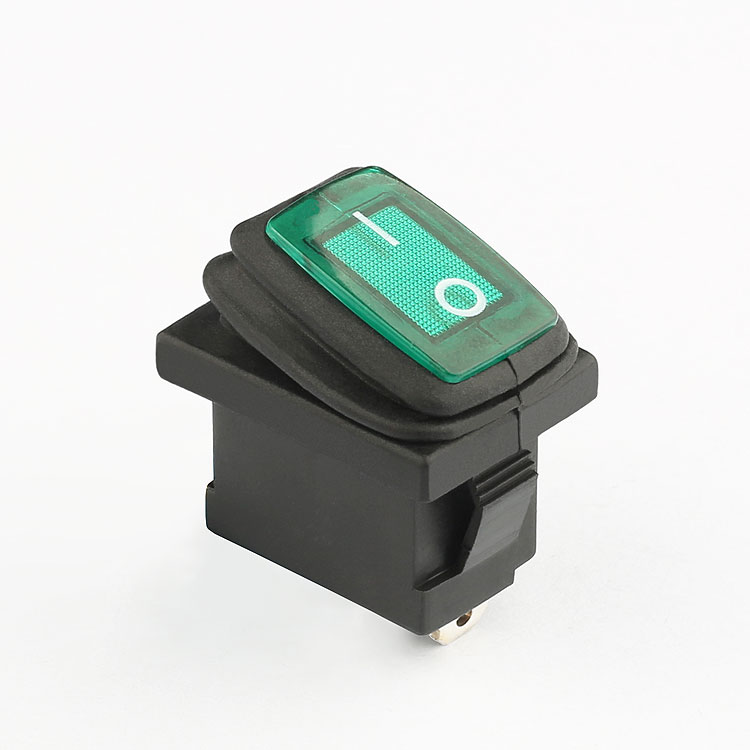

- 3 Pin SPST On-Off illuminated kcd3 waterproof rocker switch
- Certificate:
- CE,UL,CQC,ENEC
- Circuit Description:
- SPST
- Contact Resistance:
- ≤50mΩ
- Insulation Resistance:
- ≥1000MΩ
- Dielectric Strength:
- 1500V AC , 1min
- Max.Rating Current & Voltage:
- 6A/10A 250VAC
- Electronic Life(cycles):
- 10,000 cycles
- Operating Temperature:
- T55,T105
Supply Ability
- Supply Ability:
- 1000000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- factory price 3Pin SPST On-Off illuminated kcd3 waterproof rocker switch
1000 pieces in one standard export carton
- Port
- Shanghai
- Lead Time:
Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 20 To be negotiated
