Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- SK(shangkai)
- Model Number:
- KCD3-11-FB1B-B-R-01
- Max. Current:
- 10A
- Max. Voltage:
- 250V AC
- Mechanical Life:
- 50,000-100,000 cycles
- Name:

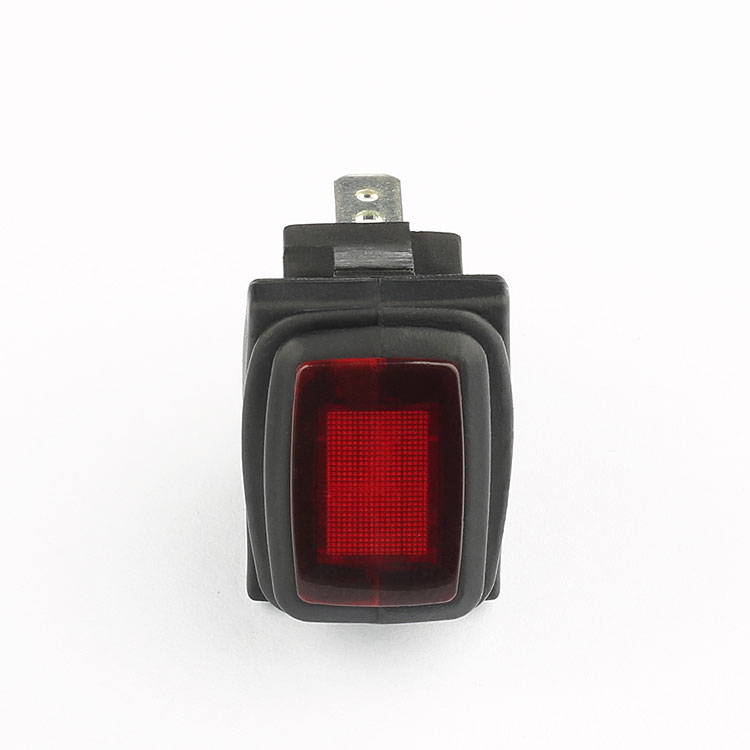

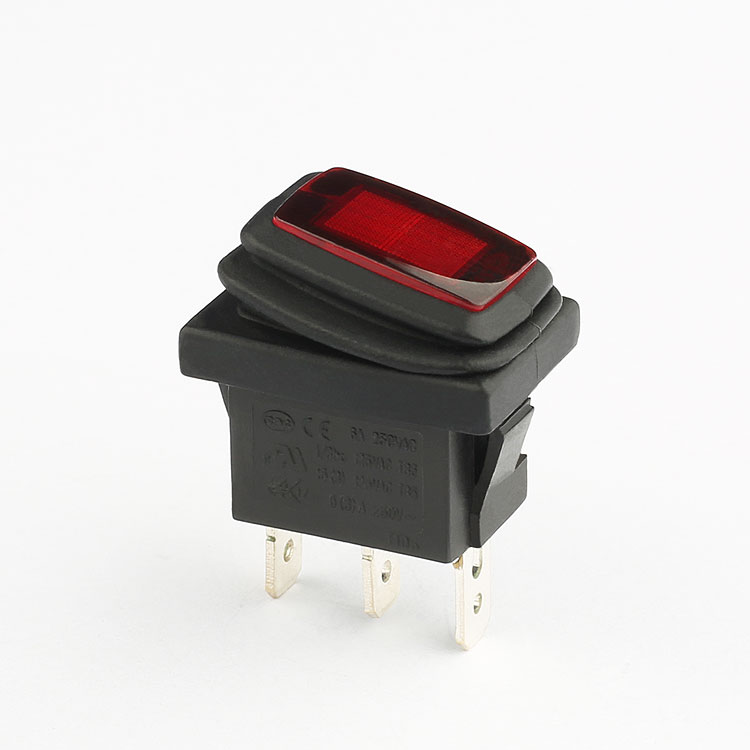

- KCD3 2Pin SPST On-Off IP65Red Sealed Waterproof Rocker Switch
- Certificate:
- CE,UL,CQC,ENEC
- Housing Color:
- Black On-Off IP65Red Sealed Waterproof Rocker Switch
- Circuit Description:
- SPST , single pole single throw
- Contact Resistance:
- ≤50mΩ
- Insulation Resistance:
- ≥1000MΩ
- Dielectric Strength:
- 1500V AC , 1min
- Max.Rating Current & Voltage:
- 10A 250VAC
- Electronic Life(cycles):
- 10,000 cycles
- Operating Temperature:
- T55,T105
Supply Ability
- Supply Ability:
- 1000000 Piece/Pieces per Year of KCD3 2Pin SPST On-Off IP65Red Sealed Waterproof Rocker Swit
Packaging & Delivery
- Packaging Details
- KCD3 2Pin SPST On-Off IP65Red Sealed Waterproof Rocker Switch
1000 pieces in one standard export carton
- Port
- Shanghai
