Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- SK(shangkai)
- Model Number:
- KCD-11-FB1B-B-B-01
- Max. Current:
- 10A
- Max. Voltage:
- 250V AC
- Mechanical Life:
- 50,000-100,000 cycles
- Name:

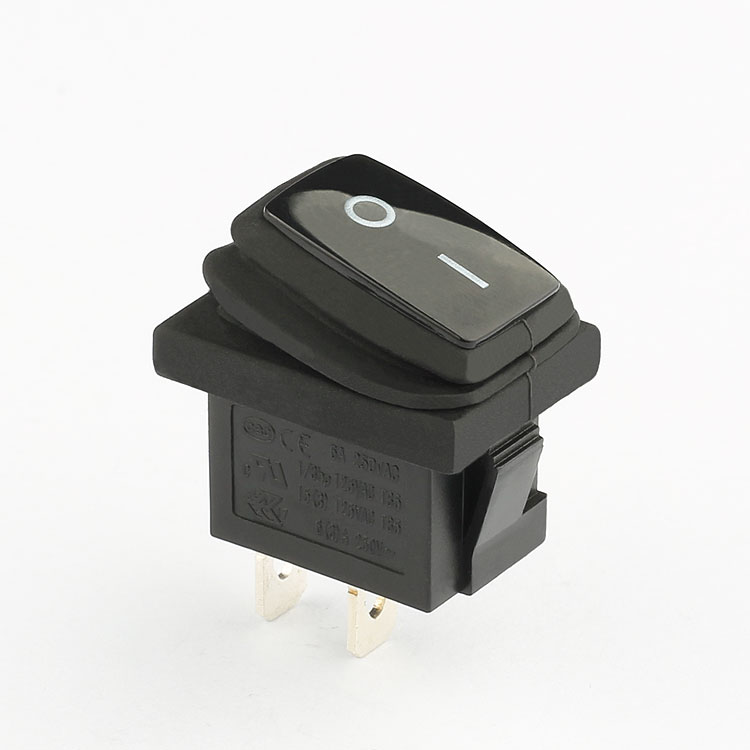

- KCD3 10A 250v AC T105 Black Miniature WaterproofOn Off Rocker Switch
- Certificate:
- CE,UL,CQC,ENEC
- Housing Color:
- Black rocker switch
- Circuit Description:
- SPST , single pole single throw
- Contact Resistance:
- ≤50mΩ
- Insulation Resistance:
- ≥1000MΩ Miniature Rocker Switch
- Dielectric Strength:
- 1500V AC , 1min
- Max.Rating Current & Voltage:
- 10A 250V rocker switch
- Electronic Life(cycles):
- 10,000 cycles
- Operating Temperature:
- T55,T105
Supply Ability
- Supply Ability:
- 1000000 Piece/Pieces per Year of KCD3 Black Miniatur Rocker Switch
Packaging & Delivery
- Packaging Details
- KCD3 10A 250v AC T105 Black Miniature WaterproofOn Off Rocker Switch
1000 pieces in one standard export carton
- Port
- Shanghai
- Lead Time:
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 15 To be negotiated
