- Place of Origin:
- Shanghai, China
- Brand Name:
- shangkai(SK)
- Model Number:
- IP67 green light 22mm momentary metal pushbutton switch
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250V
- name:
- IP67 green light 22mm momentary metal pushbutton switch
- Certification:
- CCC,CQC, CE, RoHS, ENEC, UL,KEMA
- Color:
- Red, Yellow ,Green, Black, White, Blue, Gray, Orange
- Light:
- LED,NEON
- Button Shape:
- round, mushroom, square, rectangular
- Panel cutout:
- 19mm,22mm
- Indicator Voltage:
- 2V, 6V, 12V, 24V,110V,220VAC
- Electronic Life(cycles):
- 50000(Momentary),25000(Alternate)
- Mechanical Life(cycles):
- 200000(Momentary),50000(Alternate)
- Operating Temperature:
- -5℃~+75℃
- Supply Ability:
- 10000000 Piece/Pieces per Week of IP67 green light 22mm momentary metal pushbutton switch
- Packaging Details
- IP67 green light 22mm momentary metal pushbutton switch of
50Pieces in one box,1000pieces in one Standard export carton ,
momentary metal pushbutton switch .
- Port
- shanghai

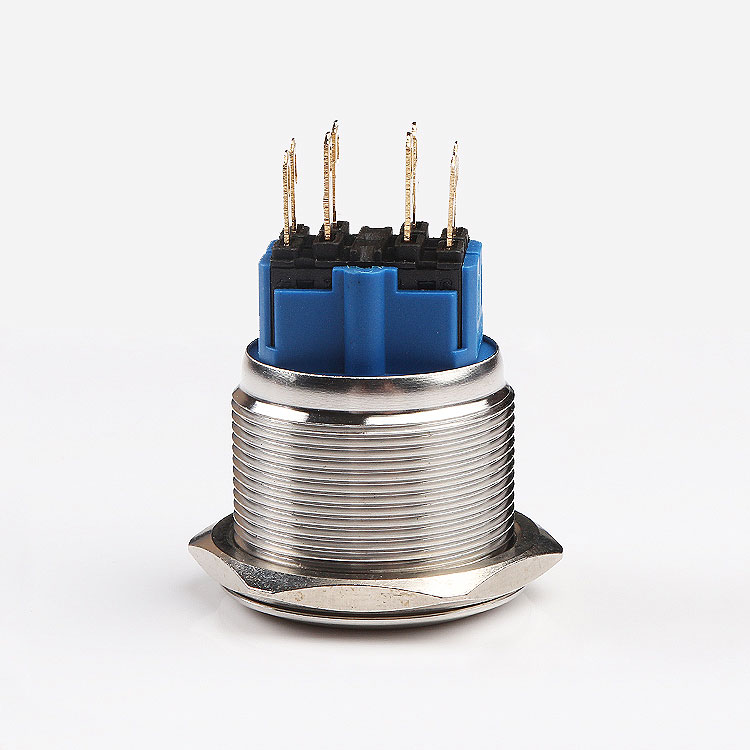

IP67 green light 22mm momentary metal pushbutton switch
Panel Thickness | 1-10mm |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000 MΩ 4 pin push button switch |
Torque | 5-14Nm |
Operating Pressure | About 4N |
Operating Stroke | About 1.8mm |
Mounting Hole Size | 22mm |
Dielectric Strength | 2000VAC |
Electronic Life | >1,000,000 times |
Mechanical Life | >200,000 times |
Operating temperature | -20°c~+55°c |
IP code | IP67 IK09 |
Switch Rating | 2A /36VAC emergency push button switch |
Contact Configuration | 1NO |
Operating Type | Momentary elevator push button switch |
The Front Shape | High Round |
The Crust Material | Stainless Stell,Nickel-plated Brass or Gold-Plated Brass |
Material
| Contact : Sliver Alloy (Can be made to order) |
Our quality policy is:"Make progress by Technology,Create Brand by Quality".You have seen our successful past and we are striving to achieve what you expect.Let us go hand in hand and make sincere cooperation for a glorious future.
It has passed the certification of ISO9001:2008 Quality Management System and many of its products have passed the quality certification of authoritative certification bodies such as CQC,UL and ENEC,CE,ROHS.
We supply sample service and the sample can be sent to u by express very fast, please contact us.
Our bulk goods are usually shipped by sea, and will arrive in 30days, if u set a small order, we can ship them by express or air.
Q1: Why choose your company?
A1:(1) We have all kinds of customized products with professional and exquisite.
(2) Any inquiries will be replied within 24 hours. Our sales team will try our best to support you.
(3) We strictly control every detail of production, and every product is inspected 100% by our QC team before delivery.Moreover, our production is abided by ISO9001,CQC, CE, UL, RoHS, ENEC and so on.
Q2: What’s the advantages of your company?
A2:(1) 30-year experience in manufacturer switches, more than 10-year experience on export.
(2) We design goods for the company of Extron, Midea, Philips, Povos and so on.
(3) Original manufacturer with direct factory price, Competitive & Fashionable
(4) Safe payment terms: T/T
(5) We offer EXW, FOB, CIF, etc.
(6) OEM available, Customers" designs are warmly welcome.
Q3:What’s your mainly products?
A3:We Produce and sell high quality electronic switches, more than 20 categories, including pushbutton switches, rocker switches, rotary switches, key lock switches, dip switches, slide switches, refrigerator switches, micro and mini switches, indicators,buzzers, terminal blocks, solenoid valves and so on.
Q4:How do I know that you have sent the products out?
A4:Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times.
Q5:How you will send the goods to us?
A5:For urgent orders, we will send to your door by air. For bulk orders, it’s a good way to send to you by sea but will take much time. For small orders, express will be best. We can send the goods to you by DHL, FEDEX, UPS, EMS etc
