Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- SK(shangkai)
- Model Number:
- KCD1-21N
- Max. Current:
- 16A
- Max. Voltage:
- 250V AC
- Mechanical Life:
- 100,000 cycles
- Name:

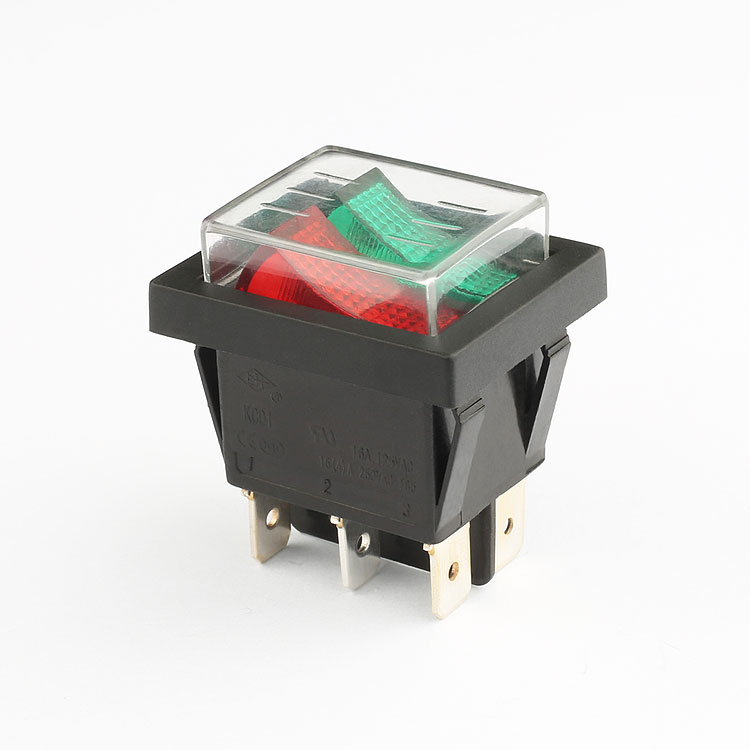

- 16a 250v kcd1 6 pin illuminated rocker switch waterproof cover
- Certificate:
- CE,CQC,ENEC, CB,ROHS
- Housing Color:
- black
- LED Light Color:
- Red and Green rocker switch
- Circuit Description:
- DP-ST ILLUMINATED rocker switch
- Contact Resistance:
- ≤50MΩ
- Dielectric Strength:
- 1500V AC , 1min
- Electronic Life:
- 10,000 cycles
- Pins:
- 6
- Operating Temperature:
- T55 T85 T125
Supply Ability
- Supply Ability:
- 1000000 Piece/Pieces per Month 16a 250v kcd1 6 pin illuminated rocker switch waterproof cover
Packaging & Delivery
- Packaging Details
- 16a 250v kcd1 6 pin illuminated rocker switch waterproof cover
1000 pieces in one standard export carton
- Port
- Shanghai
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 25 To be negotiated
