- Place of Origin:
- Shanghai, China
- Brand Name:
- Yongxing
- Model Number:
- KW15
- Max. Current:
- 16A
- Max. Voltage:
- 250V AC
- Operating Temperature:
- -25°~+125°
- Protection Level:
- IP40 , IP65
- Name:
- Yongxing Kw15
- Color:
- Gray , White
- Certification:
- ENEC , CQC
- Current:
- 3A~16A
- ContactResistance:
- ≤50mΩ
- INSULATION RESISTANCE:
- ≥100mΩ
- dielectronic strength:
- 1,500V
- electronic life(cycles):
- 50,000
- operating temperature:
- -25℃~+125℃
- IP:
- IP40 , IP65
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 40X40X40 cm
- Gross weight per batch:
- 1.004 kg
- Package Type:
- 150 pieces one plister box,1000 pieces in one carton,
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 30000 >30000 Est. Time(days) 20 To be negotiated

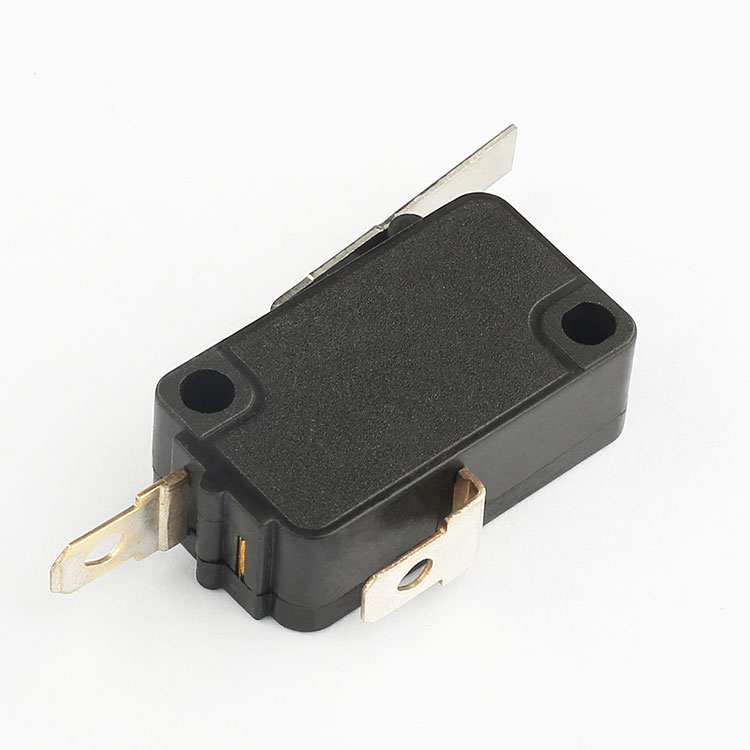

KW15 series 2 pins 16/10A 250V AC 5e4 25t85 electrical micro switch
If you have enough quantity to purchase, we can develop switches that meet your needs. The company has independent plant, injection workshop and advanced experimental equipment. With 60 senior engineers and perfect development process, all workshops are up to 5S and 5M management standards. Click here to contact us
| IP | IP40 , IP65 |
| Color | Gray , White |
| Current | 3A~16A |
| Voltage | 125V~250V |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |
| Dielectronic Strength | 1500V |
| electronic life(cycles) | 50,000 |
| operating temperature | -25℃~+125℃ |
| Certification | ENEC , UL , CQC |
Our quality policy is:"Make progress by Technology,Create Brand by Quality".You have seen our successful past and we are striving to achieve what you expect.Let us go hand in hand and make sincere cooperation for a glorious future.
Cooperative partner
It has passed the certification of ISO9001:2008 Quality Management System and many of its products have passed the quality certification of authoritative certification bodies such as CQC,UL and ENEC,CE,ROHS.
1.Our packing is protected by cardboard boxes, and two types of packing are used inside the blister box and the bag.
2.We supply sample service and the sample can be sent to u by express very fast, please contact us.
3.Our bulk goods are usually shipped by sea, and will arrive in 30days, if u set a small order, we can ship them by express or air.
4.We work with several logistics companies, such as UPS, TNT, DHL, FedEX, etc. to meet the needs of customers in various regions.
Q1: How many kinds of electric current for micro switch?
A: We provide two type is 16A and 5A.
Q2: How payment?
A:(1) Safe payment terms: T/T
(2) We offer EXW, FOB, CIF, etc.
Q3:What’s your mainly products?
A:We Produce and sell high quality electronic switches, more than 20 categories, including pushbutton switches, rocker switches, rotary switches, key lock switches, dip switches, slide switches, refrigerator switches, micro and mini switches, indicators, buzzes, terminal blocks, solenoid valves and so on.
Q4:How you will send the goods to us?
A:For urgent orders, we will send to your door by air. For bulk orders, it’s a good way send to you by sea but will take much time. For small orders, express will be best. We can send the goods to you by DHL, FEDEX, UPS, EMS etc.
